OPERATING PROCEDURE PHOTOS/FIGURES
1. Removing the intake grille
(1) Slide the tabs (2 places) of intake grille in the direction
of the arrow (Figure 1).
(2)
Hold the intake grille and pull it down to open (Figure 2).
(3) Slide the grille shafts (1 each on the left and right
sides) off the intake grille and remove the intake grille
(Figure 3).
(4) Remove the safety strings of intake grille from the
hooks (Figure 4).
35

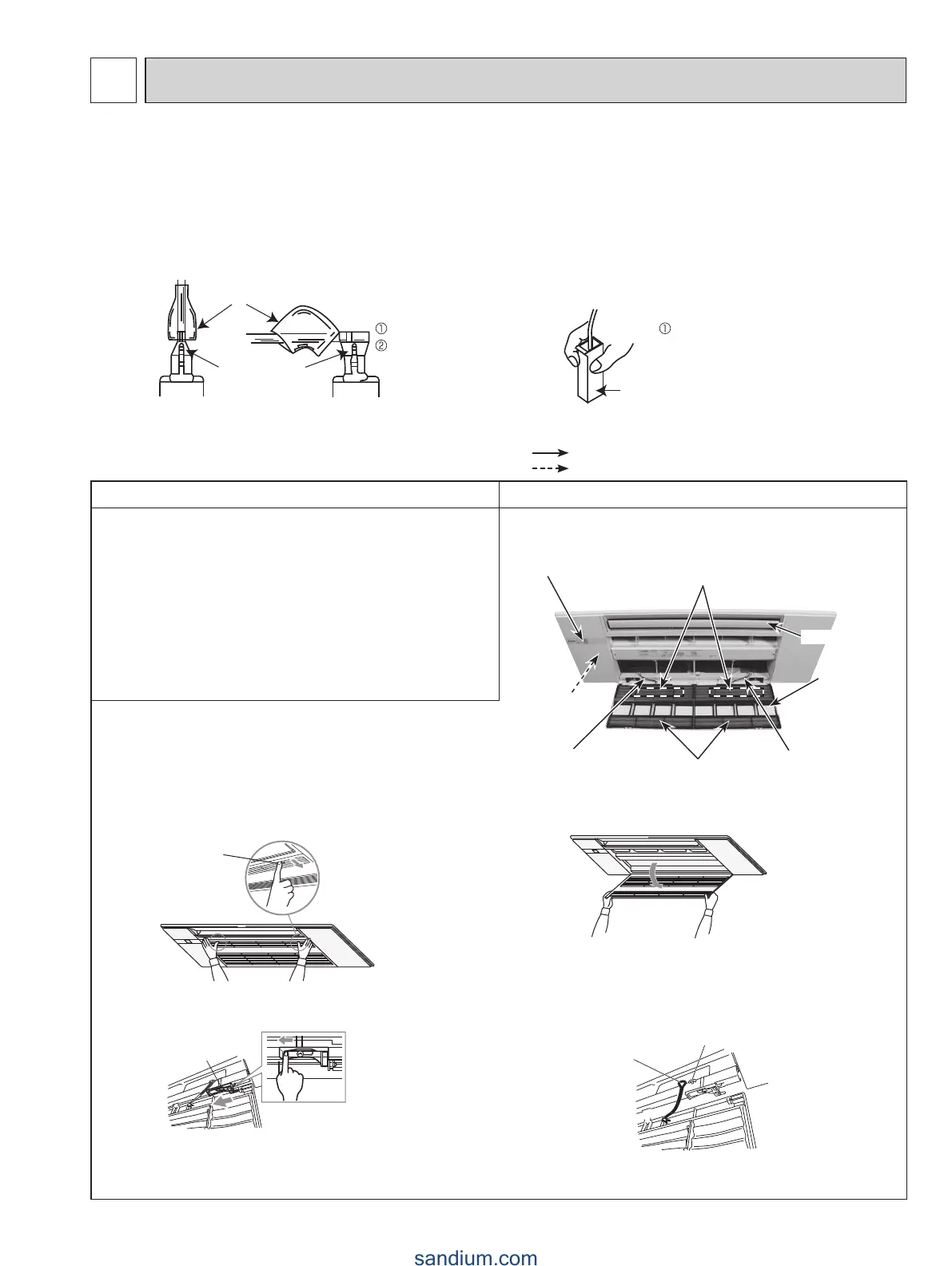

DISASSEMBLY INSTRUCTIONS
10
(1) Slide the sleeve and check if there is a locking lever or not. (2) The terminal with the connector shown below
locking mechanism.
Slide the sleeve.
Pull the terminal while
pushing the locking
lever.
Hold the sleeve, and
pull out the terminal
slowly.
The terminal which has the locking mechanism can be detached as shown below.
There are following 2 types of the terminal with locking mechanism.
The terminal without locking mechanism can be detached by pulling it out.
Check the shape of the terminal before detaching.
<Detaching method of the terminal with locking mechanism>
Connector
Sleeve
Locking lever
MLZ-KP09NA MLZ-KP12NA MLZ-KP18NA
NOTE: Turn OFF the power supply before disassembly.
Photo 1
Figure 1
Figure 3
Figure 2
Figure 4
Places for installing the air cleaning filters
[(Anti-Allergy Enzyme filters (option)]
[Install to air filters.(Air purifying filter)]
Electrical
parts
Remote control
receiving section
Places for installing
the air filter(Air purifying filter)
Safety string
Safety string
Intake grille
Horizontal vane
Tab
Shaft
Safety string
Hook
: Indicates the visible parts in the photos/figures.
: Indicates the invisible parts in the photos/figures.
