Mitsubishi Electric MSZ-SF20VA User Manual

WALL-MOUNTED Indoor Unit
M series
C-16

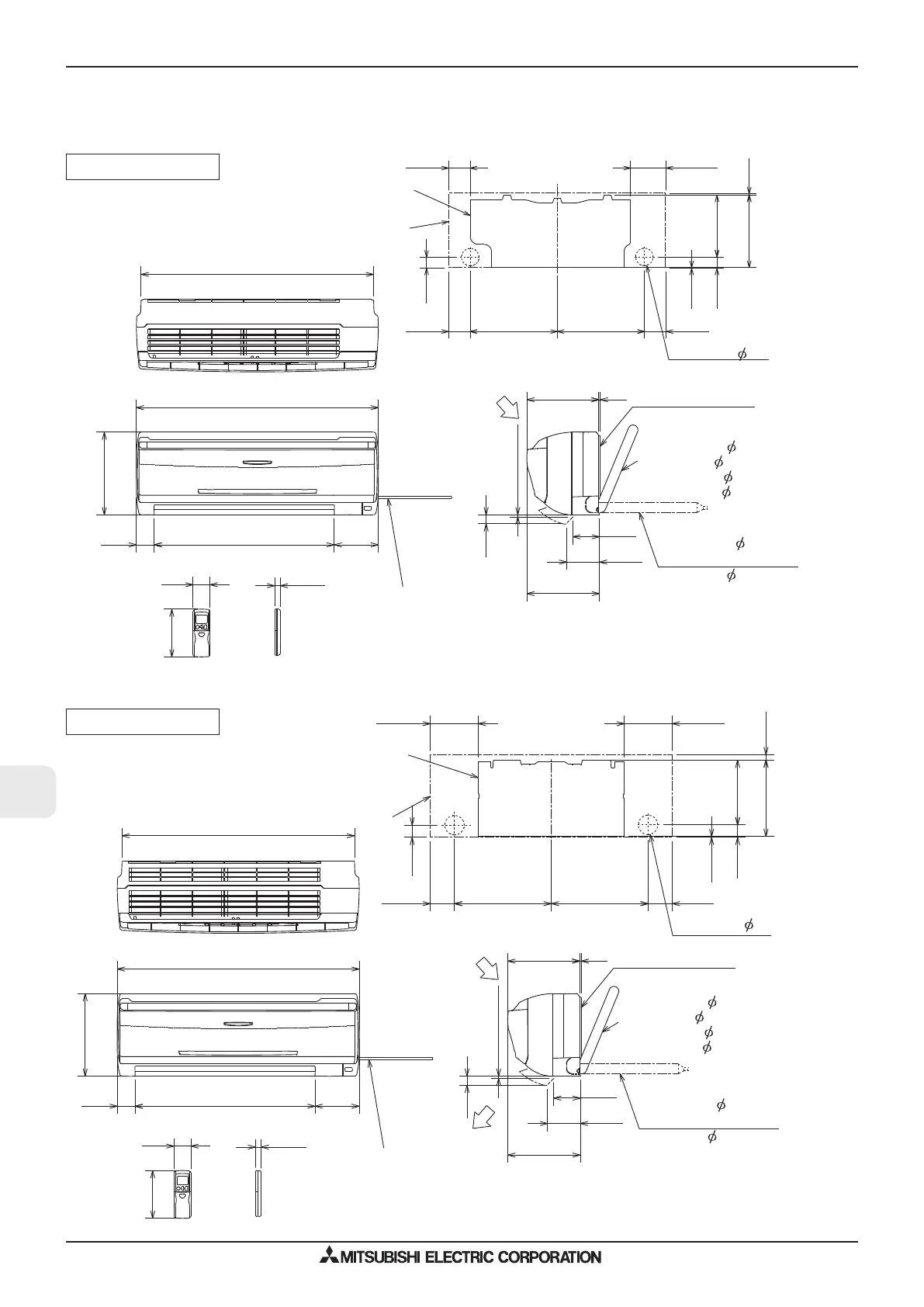

OUTLINES AND DIMENSIONS
WALL- MOUNTED
Unit: mm
244
242 5
7 or more
90
110
30
149
606
278
60
815
783
Power supply cord
Lead to right 1.0m
Lead to left 0.3m
Air out
Installation plate
Insulation 28
Drain hose 16
(Connected part O.D)
Air in
Liquid line 6.35-0.5m
Gas line 9.52-0.43m
Insulation 37 O.D
21 I.D
{
Wireless remote controller
162
19
58
81.5
81.5
41
2.5
42
271
231.5
4.5
81.5
133.5
326326
Wall hole 65
Indoor unit
Installation plate
C.1.2.1 Indoor Unit
C.1.2 OUTLINES AND DIMENSIONS
MSC-GE20VB MSC-GE25VB
244
242
218.5
258
81.581.5
41
42
2.5
17.5
161.5161.5
326326
5
7 or more
90
110
30
149
606
278
60
815
783
Power supply cord
Lead to right 1.0m
Lead to left 0.3m
Air out
Indoor unit
Installation plate
Wall hole 65
Installation plate
Insulation 28
Drain hose 16
(Connected part O.D)
Liquid line 6.35-0.5m
Gas line 9.52-0.43m
Insulation 37 O.D
21 I.D
{
Wireless remote controller
162
19
58
Air in
MSC-GE35VB
INDOOR UNIT
INDOOR UNIT
