CEILING CASSETTE Inverter Heat Pump M series

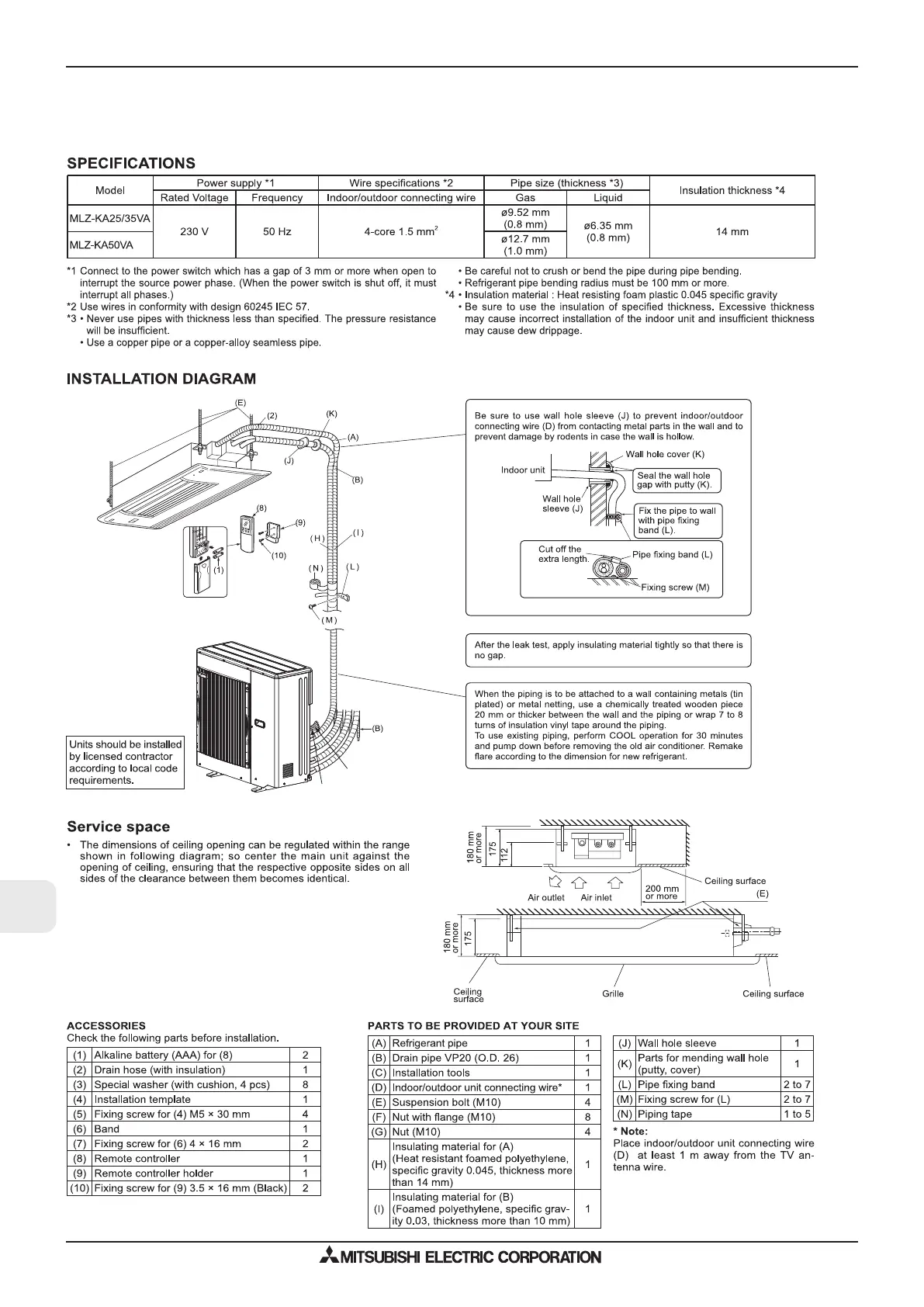

INSTALLATION PROCEDURE
CEILING CASSETTE
C-286
C.3.7.1 Inverter Heat Pump
C.3.7 INSTALLATION PROCEDURE
MLZ-KA25VA MLZ-KA35VA MLZ-KA50VA
MXZ series
outdoor unit
(D)
Power supply code
* Refer to the INSTLLATION PROCEDURE of
MXZ series to be connected for the details.
Drain piping for outdoor unit
Install the unit horizontally.
Do not use drain socket in cold regions.
Drain may freeze and make the fan stop.
The outdoor unit produces condensate during the heating operation.
Select the installation place to ensure to prevent the outdoor unit and/or
the grounds from being wet by drain water or damaged by frozen drain water.
