Chapter 2 NAMES OF PARTS
2-4

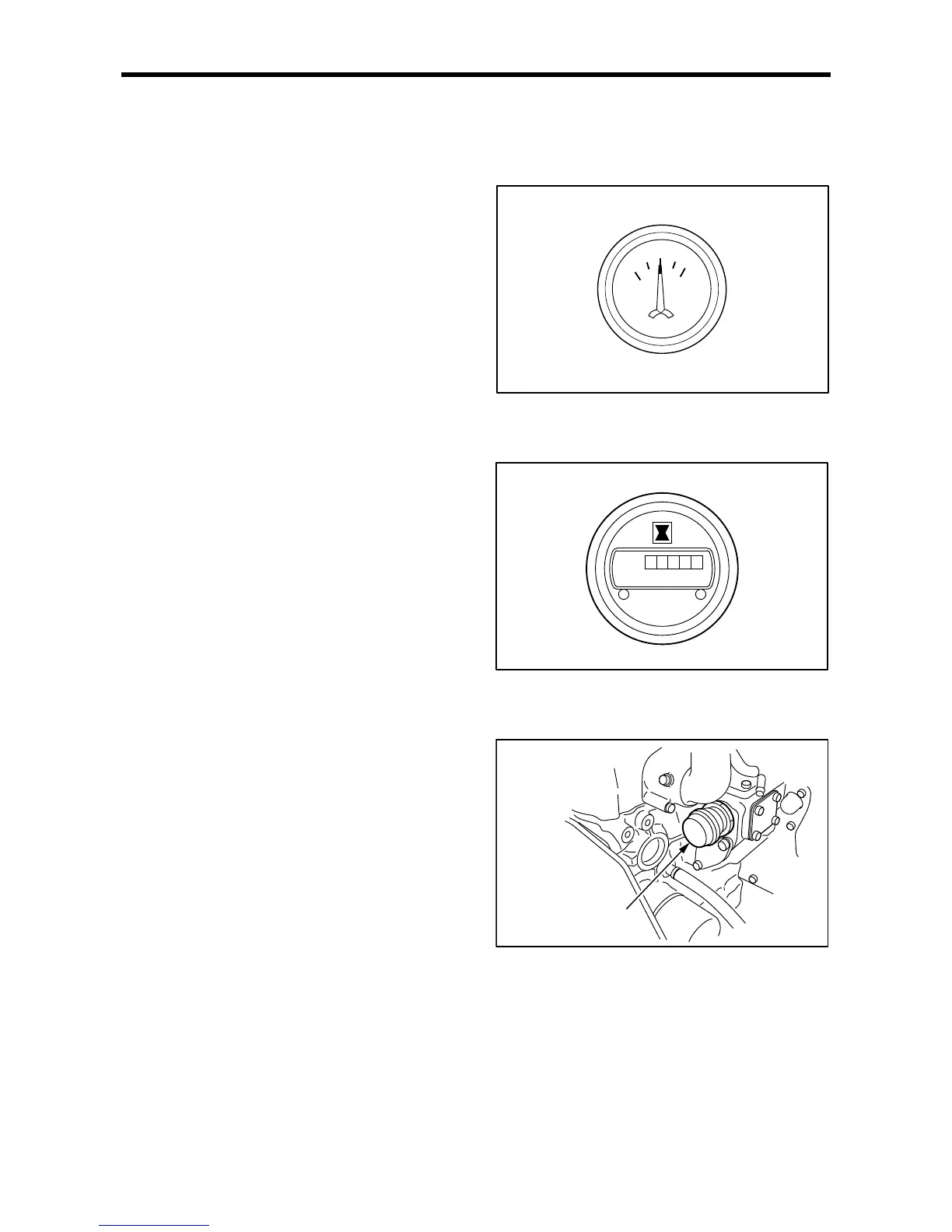

Ammeter
The ammeter shows the charging condition of battery
when the engine is running. The indicator needle
swings to the positive ( ＋ ) side when battery is
charged and to the negative (－) side when the battery
is discharged.
Fig. 2-8 Ammeter
Hour meter
Hours of operation is displayed.
Conduct the maintenance service based on the oper-
ating hours displayed on this meter.
Fig. 2-9 Hour meter
Stop solenoid
A stop solenoid is installed to stop the engine in the
regular operation.
The stop solenoid moves the rack of fuel injection
pump to cut the fuel, and consequently stops the
engine.
Two types of stop solenoids are available.
RUN OFF (ETS: Energized To Stop)
Type
Not energized while the engine is running. Energized
by a stop signal to stop the engine.
RUN ON (ETR: Energized To Run) Type
Energized while the engine is running, and de-ener-
gized to stop the engine.
Fig. 2-10 Stop solenoid
+2850(7(5
6WRSVROHQRLG
