68
-

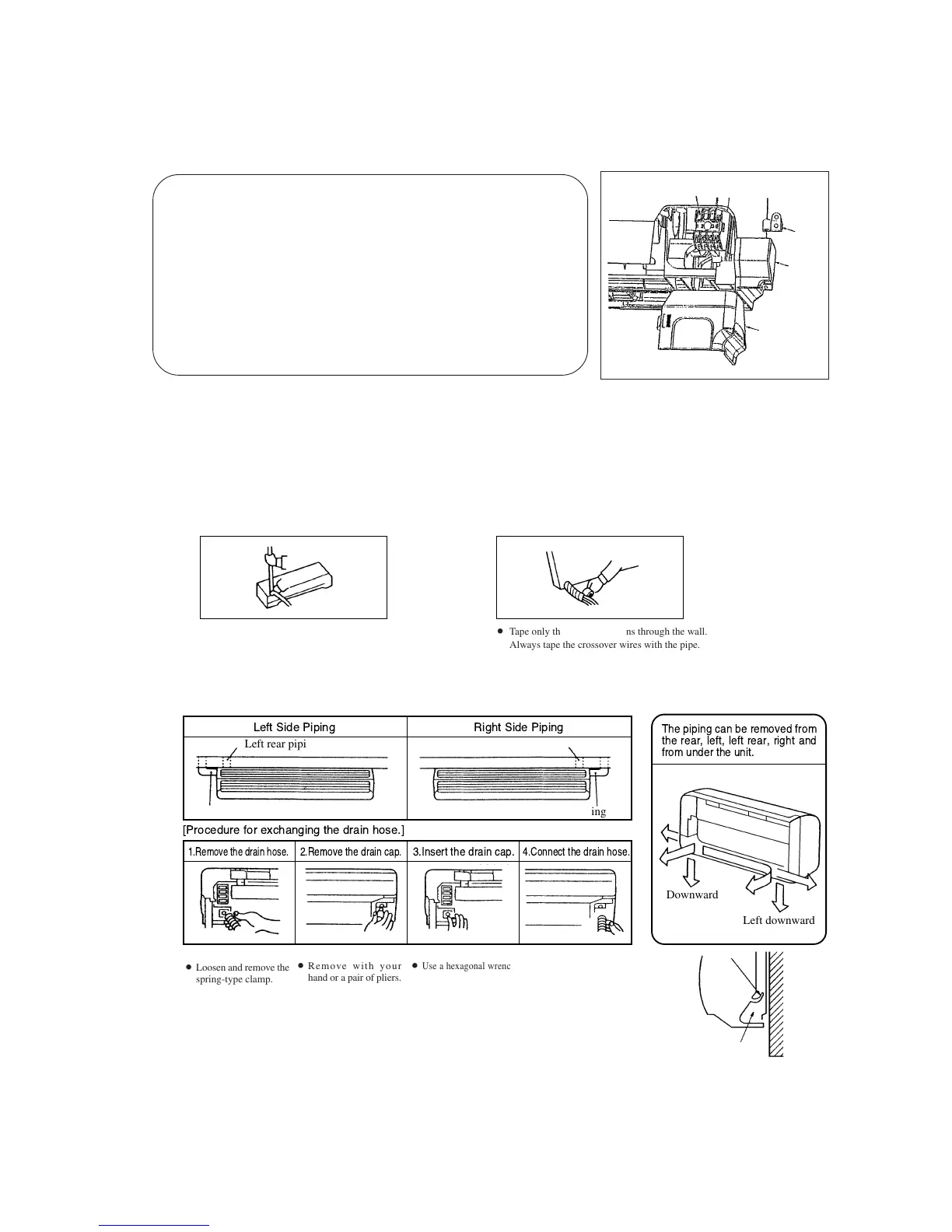

3) Mounting of interconnecting wires (Field wiring)
a) Remove the lid.
b) Remove the terminal block cover.
c) Connect the connection wire securely to the terminal block.
Cautions when piping from the left and the rear center of the unit
Pipe
Drain hose
Left Side Piping
Left rear piping Right rear piping
Right
Rear
Left rear
Left
Left side piping
[Procedure for exchanging the drain hose.]
Right side piping
1.Remove the drain hose.
2.Remove the drain cap.
3.Insert the drain cap.
4.Connect the drain hose.
Right Side Piping
The piping can be removed from
the rear, left, left rear, right and
from under the unit.
Downward
Left downward
¡ Tape only the portion that runs through the wall.
Always tape the crossover wires with the pipe.
¡ Loosen and remove the
spring-type clamp.
¡ Remove with your
hand or a pair of pliers.
¡
Use a hexagonal wrench
to correctly insert the
drain cap which was
removed in 2.
Caution: Be careful
because if the cap is not
inserted property, water
leak may occur.
¡ Loosen the spring-type
clamp and securely
insert the drain hose.
Caution: Be careful
because if the cap is not
inserted properly, water
leak may occur.
¡ Hold the bottom of the pipe and change its direction
before stretching it and shaping it.
Wall
Gutter
Pipes storage area
¡ Do not place the power supply cords above the gutter, because the air
conditioner is structured in a way where condensation on the back side is
collected in to the drain pan before drainage.
Use cables for interconnection wiring to avoid loosening of the wires.
CENELEC code for cables Required field cables.
H05RNR4G1.5 (Example)
H Harmonized cable type
05 300/500 volts
R Natural-and/or synth. rubber wire insulation
N Polychloroprene rubber conductors insulation
R Stranded core
4 Number of conductors
G One conductor of the cable is the earth conductor (yellow/green)
1.5 Section of copper wire (mm
2
)
[Top View]
1) Connect the connection wire securely to the terminal block. If the wire is not affixed completely, contact will be
poor, and it is dangerous as the terminal block may heat up and catch fire.
2) Take care not to confuse the terminal numbers for indoor and outdoor connections.
3) Affix the connection wire using the wiring clamp.
d) Attach the terminal block cover.
e) Attach the lid.
4) Shaping the pipe and drain hose
[Shaping the pipe] [Taping of the exterior]
Clamp
Terminal
cover
Lid (R)
Terminal block
To Next Page
