73
-

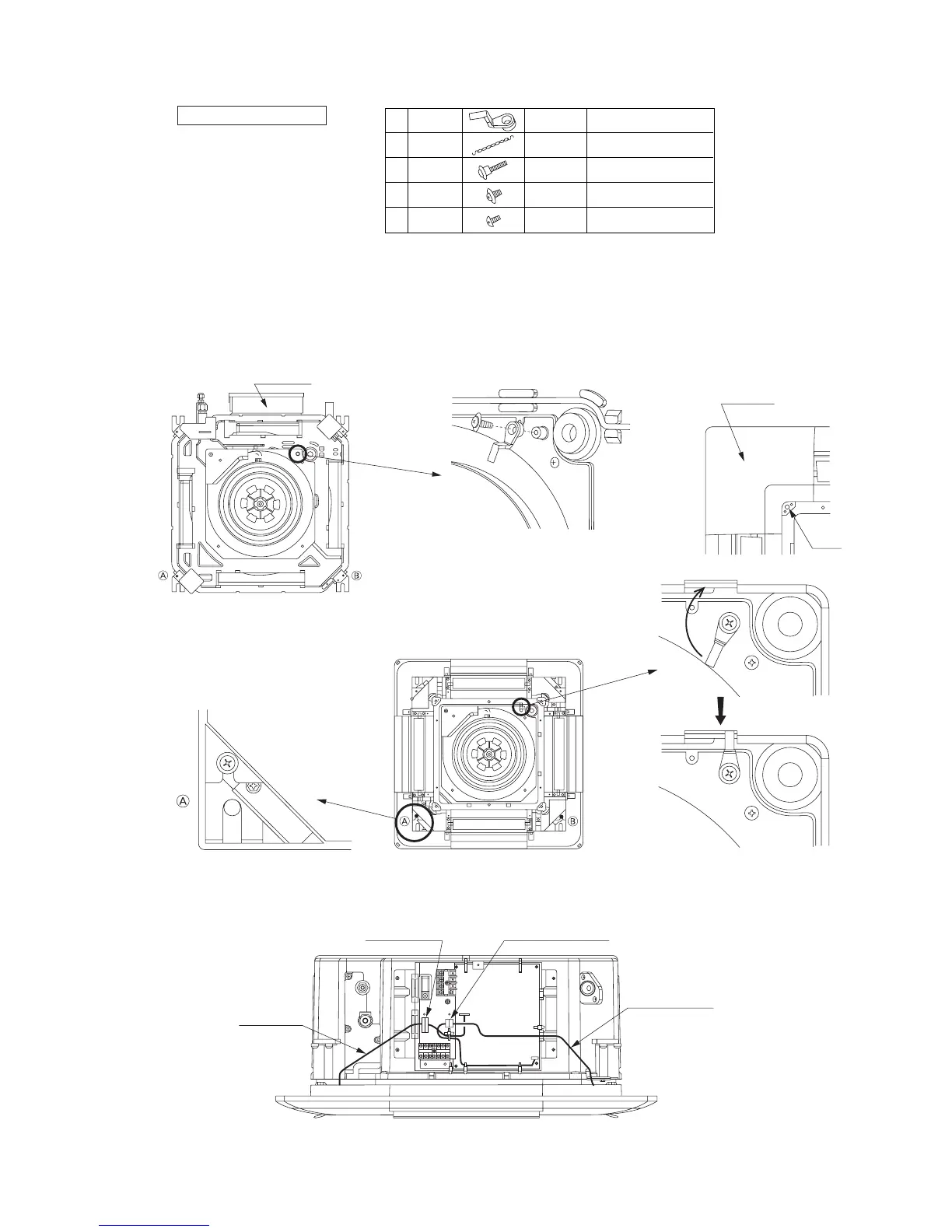

C. Attaching the panel
1) <Accessory items>
(It is attached to the panel.)
a) Make sure that the unit main body is positioned at the correct height and the opening on the ceiling is made to the
correct dimensions with the level gauge supplied with the main body.
Remove the level gauge before you attach the panel.
b) Screw in two bolts out of the four supplied with the panel by about slightly less than 5mm.( markAB)[Figure 1].
c) Attach the hook supplied with the panel to the main body with the hook fixing screw(1 screw).[figure 2]
d) Open the intake grille.
e) Please remove the screw of a corner panel and remove a corner panel.(four places) [Figure 3]
f) A panel is hooked on two bolts (
¡
markAB).[figure 4]
g) Please rotate a hook, put in the slot
on the panel, and carry out fixing
the panel temporarily.[Figure 5]
h) Tighten the two bolts used for fixing the panel temporarily and the other two.
i) Please open the lid of a control box.
j) Please connect a louver motor connector and Display connector. [ Figure 6]
Piping side
[Figure 1]
[Figure 2]
Control box
Drain hose side
[Figure 3]
Corner panel
Screw
1
2
3
4
5
Hook
Chain
Bolt
Screw
Screw
For fixing temporarily
For hoisting the panel
For attaching a hook
For attaching a chain
1 piece
2 pieces
4 pieces
1 piece
2 pieces
[Figure 5]
[Figure 4]
[Figure 6]
Display wiring
Display connector Louver motor connector
Louver motor wiring
