Mitsubishi Heavy Industries SRK20ZJ-S Technical Manual

-
150
-
'10 • SR-T-091
10.4 Models SRR25,35ZJ-S

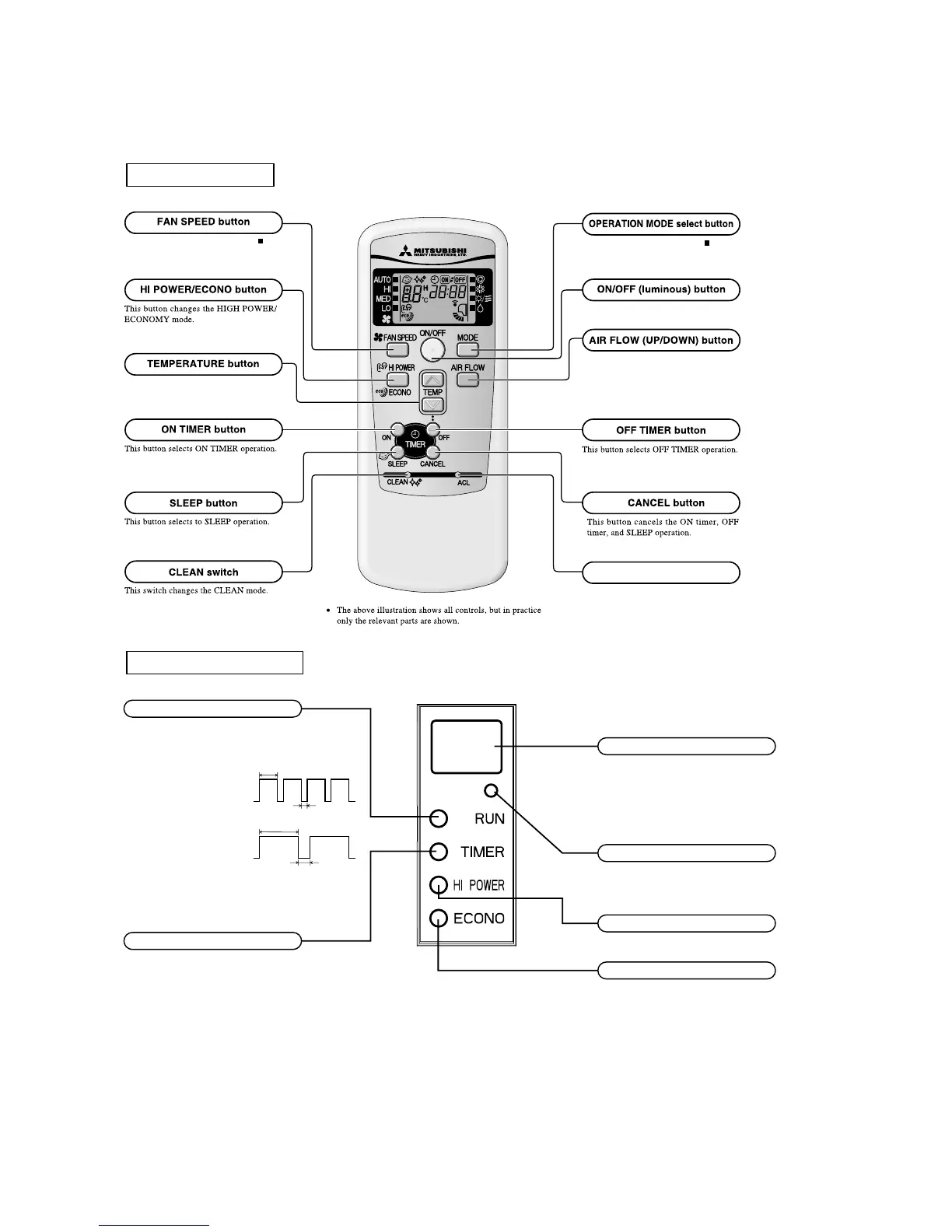

(1) Operation control function by remote controller
RUN (H OT KEEP) light (green)
・Illuminat es during operation.
・ Blinks when airflow stops due to the ‘ HOT
KEEP ’ and ‘ CLEAN operation ’ .
ECONO light (orange)
Illuminate s during ECONOMY operation .
TIMER light (yellow)
Illuminate s during TIMER operation.
HI POW ER light (green)
Illuminate s during HIGH POWER operation.
Unit O N/OFF button
This button can be used for turning on/off the
unit when remote control is not ava ilable.
Remote control signal re ceiver
ON
OFF
1.5 sec.
0.5 sec.
HOT KEEP
3 sec.
1 sec.
ON
OFF
CLEAN operation
Unit O N/OFF button
• The above illustration shows all controls, but in practice
only the relevant parts are shown.
Each time the button is pressed, the
display is switched over in turn.
FAN SPEED button
This button changes the HIGH POWER/
ECONOMY mode.
HI POWER/ECONO button
These buttons set the indoor temperature.
(These buttons are used for setting the
current time and timer function as well.)
TEMPERATURE button
This button selects ON TIMER operation.
ON TIMER button
This button selects SLEEP operation.
SLEEP button
This switch selects the CLEAN mode.
CLEAN switch
This button cancels the ON timer, OFF
timer, and SLEEP operation.
CANCEL button
Each time the button pressed, the
display is switched over in turn.
OPERATION MODE select button
Press to start operation, press again to
stop.
This button changes the air flow (up/down)
direction.
AIR FLOW (UP/DOWN) button
This button selects OFF TIMER operation.
OFF TIMER button
This switch is for resetting microcomputer
and setting time.
ACL switch
ON/OFF (luminous) button
Operation section
Model All models
Unit display section
Model All models
• The above illustration shows all controls, but in practice
only the relevant parts are shown.
Each time the button is pressed, the
display is switched over in turn.
FAN SPEED button
This button changes the HIGH POWER/
ECONOMY mode.
HI POWER/ECONO button
These buttons set the indoor temperature.
(These buttons are used for setting the
current time and timer function as well.)
TEMPERATURE button
This button selects ON TIMER operation.
ON TIMER button
This button selects SLEEP operation.
SLEEP button
This switch selects the CLEAN mode.
CLEAN switch
This button cancels the ON timer, OFF
timer, and SLEEP operation.
CANCEL button
Each time the button pressed, the
display is switched over in turn.
OPERATION MODE select button
Press to start operation, press again to
stop.
This button changes the air flow (up/down)
direction.
AIR FLOW (UP/DOWN) button
This button selects OFF TIMER operation.
OFF TIMER button
This switch is for resetting microcomputer
and setting time.
ACL switch
ON/OFF (luminous) button
Operation section
Model All models
Unit display section
Model All models
Each time the button is pressed, the
display is switched over in turn.
These buttons set the room temperature.
(These buttons are used for setting the
current time and timer function as well.)
Each time the button pressed, the
display is switched over in turn.
Press to start operation, press again to
stop.
ACL switch
This switch is for resetting microcomputer
and setting time.
This button changes the air flow (up/down)
direction.
This button is not used.
(Air flow direction adjustment can not be
performed.)
