4D68 ENGINE (E-W) -
Intake and Exhaust Manifolds
11A-6-2
INSTALLATION SERVICE POINTS
"
A
A

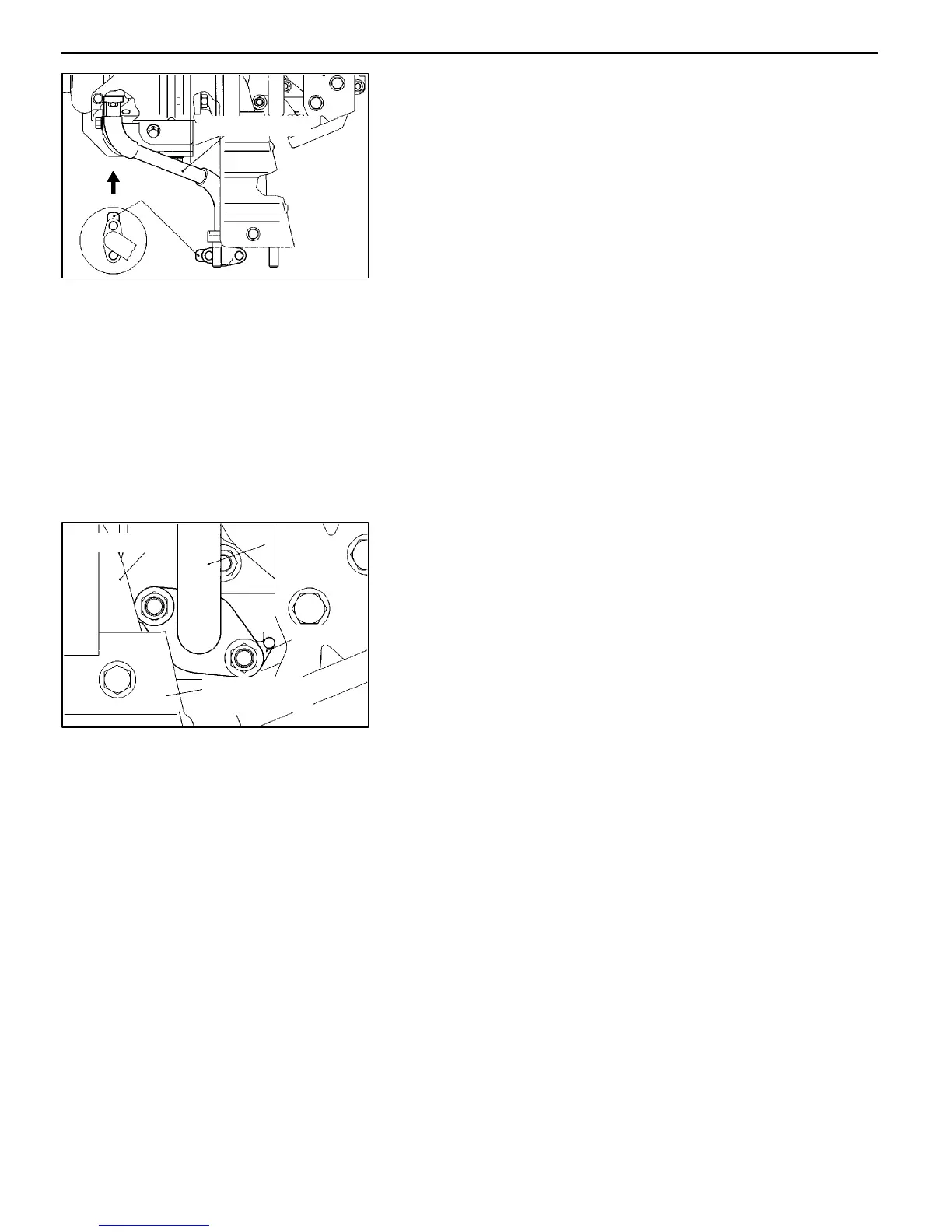

OIL RETURN PIPE GASKET INSTALLATION
(1) Install the oil return pipe gasket in such a way that its
projection is located at the illustrated position.
"
B
A
EYEBOLT INSTALLATION
(1) Before installing the oil pipe eyebolt (at top of the
turbocharger), fill the turbocharger with clean engine oil.
"
C
A
EGR PIPE GASKET INSTALLATION
(1) Install the EGR pipe gasket in such a way that its projection
is located at the illustrated position.
PWEE9609
E
Dec. 1996Mitsubishi Motors Corporation
DEN0843
Oil return pipe
Projection
DEN0844
Projection
EGR pipe
Exhaust fitting
Exhaust fitting
heat protector
To Next Page
