4D68 ENGINE (E-W) -
Front Case, Counter ba la nc e Shaft s and Oil Pan
11A-10-2

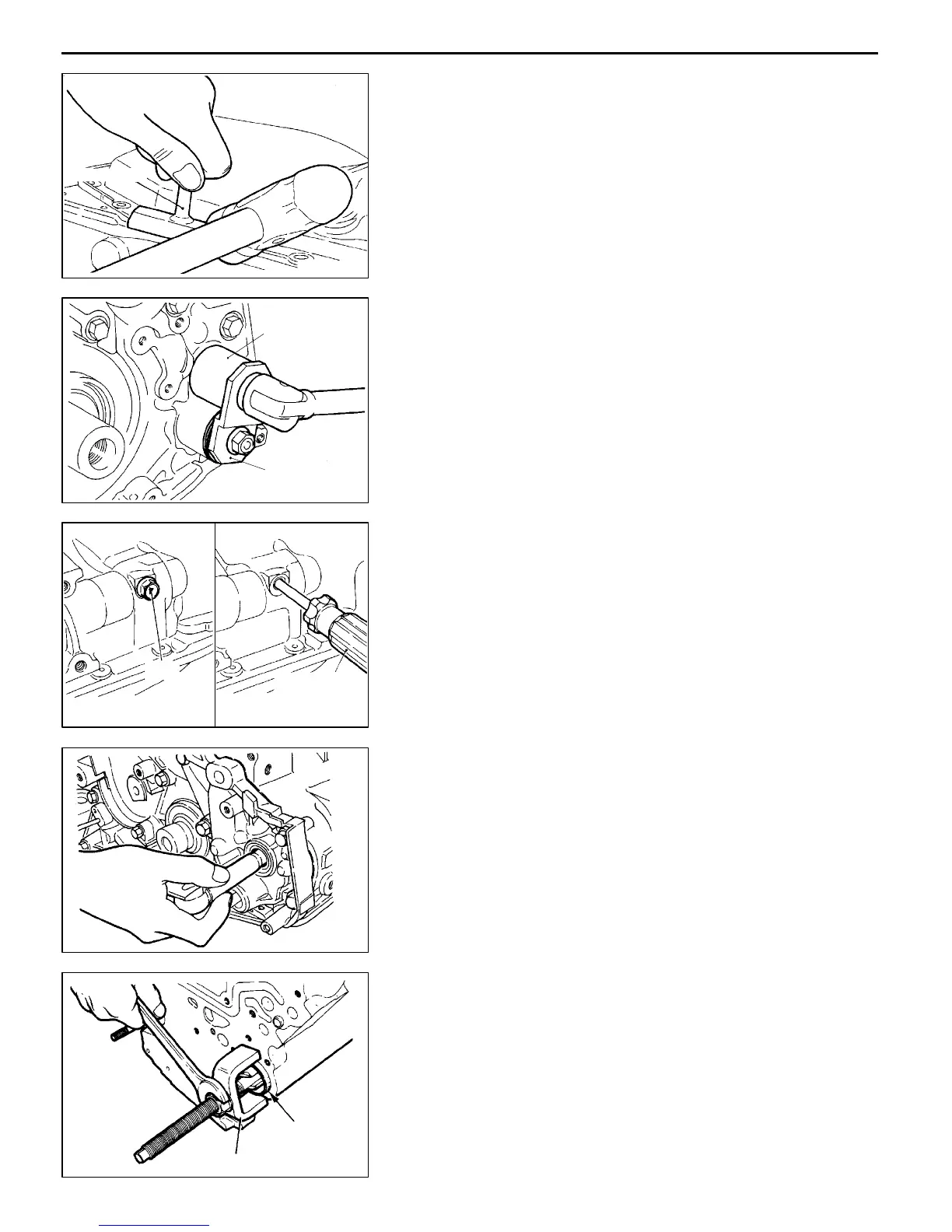

REMOVAL SERVICE POINTS
A
A
"
OIL PAN REMOVAL
(1) Knock the special tool deeply between the oil pan and
the cylinder block.
(2) Hitting the side of the special tool, slide the special tool
along the oil pan to remove it.
A
B
"
PLUG REMOVAL
(1) If the plug is too hard to loosen, tap on the plug several
times with a plastic hammer, then remove it using the
special tool.
A
C
"
FLANGE BOLT REMOVAL
(1) When loosening the oil pump driven gear flange bolt, first
insert a Phillips screwdriver [shank diameter 8 mm] into
the plug hole on the left side of the cylinder block to block
the silent shaft.
(2) Loosen the flange bolt.
A
D
"
COUNTERBALANCE SHAFT FRONT BEARING
REMOVAL
(1) Using the special tool, remove the front bearing from the
cylinder block.
NOTE
Be sure to remove t h e front bearing first. If it has not
been removed, the Rear Bearing Puller cannot be used.
PWEE9609
E
Dec. 1996Mitsubishi Motors Corporation
6EN0698
MD998727
6EN0909
MD998162
MD998783
6EN05646EN0563
Plug
Screwdriver
6EN0565
3EN0166
MD998371
Front
bearing
