Mitsubishi 4D68 User Manual

4D68 ENGINE (E-W) -
Water Pump, Thermostat, Hose and Pipes
11A-7-1

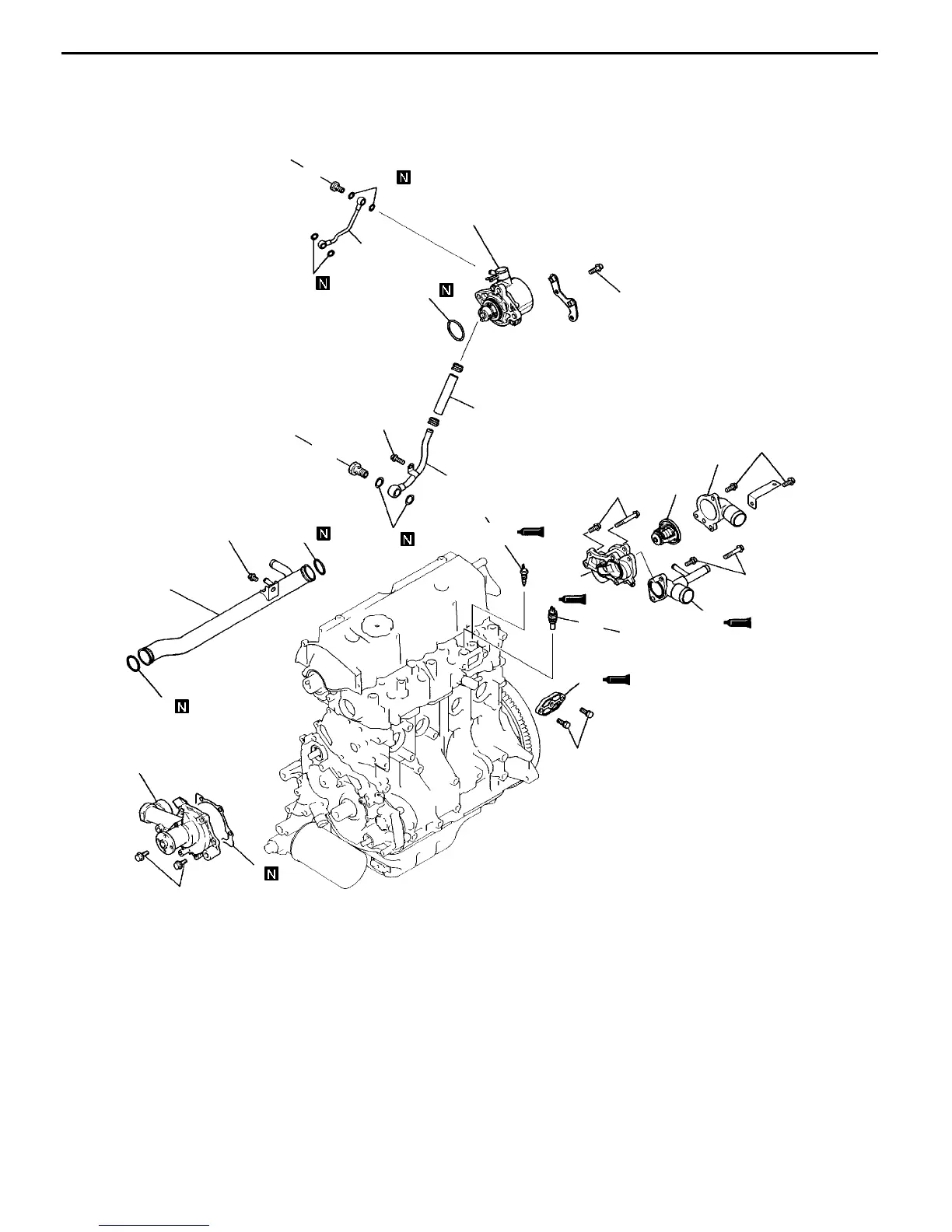

7. WATER PUMP, THERMOSTAT, HOSE AND PIPES
REMOVAL AND INSTALLATION
DEN0889
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
9Nm
23 Nm
23 Nm
22 Nm
16 Nm
12 Nm
35 Nm
11 Nm
45 Nm
13 Nm
19 Nm
12 Nm
Removal steps
1. Eyebolt
2. Gasket
3. Oil pipe
4. Gasket
5. Eyebolt
6. Gasket
7. Oil return pipe
8. Oil return hose
9. Engine coolant temperature sensor
"
F
A
10. Engine coolant temperature gauge
unit
"
E
A
11. Cover
12. Water pump
13. Water pump gasket
"
D
A
14. O-ring
"
D
A
15. Water inlet pipe
"
D
A
16. O-ring
17. Vacuum pump
18. O-ring
19. Water inlet fitting
"
C
A
20. Thermostat
"
B
A
21. Water outlet fitting
"
A
A
22. Thermostat housing
PWEE9609
E
Dec. 1996Mitsubishi Motors Corporation
