4D68 ENGINE (E-W) -
Crankshaft, Cylinder Block and Flywheel
11A-12-1

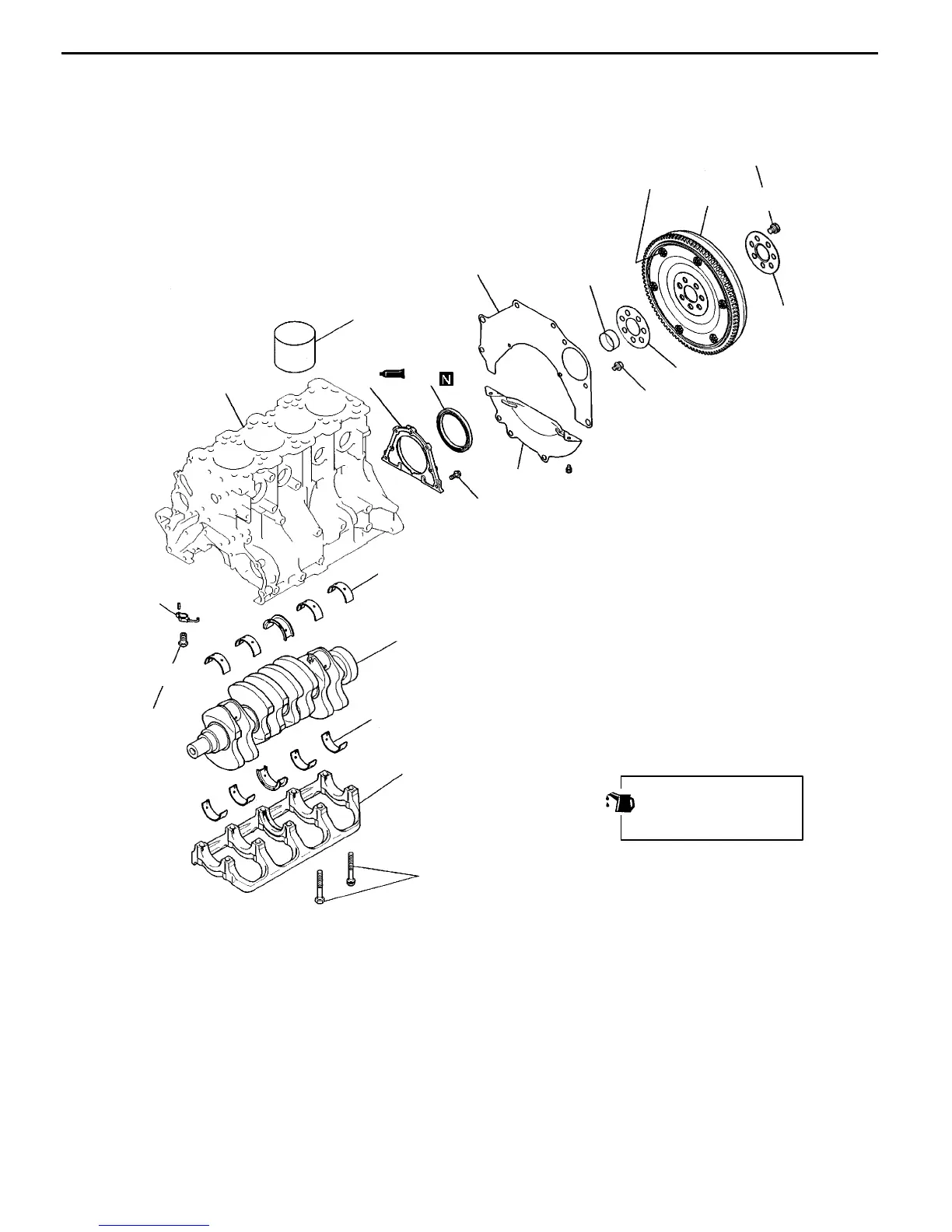

12. CRANKSHAFT, CYLINDER BLOCK AND FLYWHEEL
REMOVAL AND INSTALLATION
DEN0893
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16
17
18
“A”
11 Nm
32 Nm
132 Nm
11 Nm
Apply engine oil to all
moving parts before
installation.
Removal steps
1. Flywheel bolt
2. Adapter plate
3. Flexible flywheel
4. Adapter plate
5. Crankshaft bush
6. Rear plate
7. Bell housing cover
"
D
A
8. Oil seal case
"
C
A
9. Oil seal
"
B
A
10. Bearing cap bolt
"
B
A
11. Bearing cap
"
A
A
12. Crankshaft bearing, lower
13. Crankshaft
"
A
A
14. Crankshaft bearing, upper
15. Check valve
16. Oil jet
17. Cylinder sleeve
18. Cylinder block
Caution
On the flexible wheel equipped engines, do not
remove any of the bolts “A” of the flywheel shown
in the illustration.
The balance of the flexible flywheel is adjusted in
an assembled condition. Removing the bolt ,
therefore, can cause the flexible flywheel to be out
of balance, giving damage to the flywheel.
PWEE9609
