4D68 ENGINE (E-W) -
Rocker Arms, Rocker Shaft and Camshaft
11A-8-2

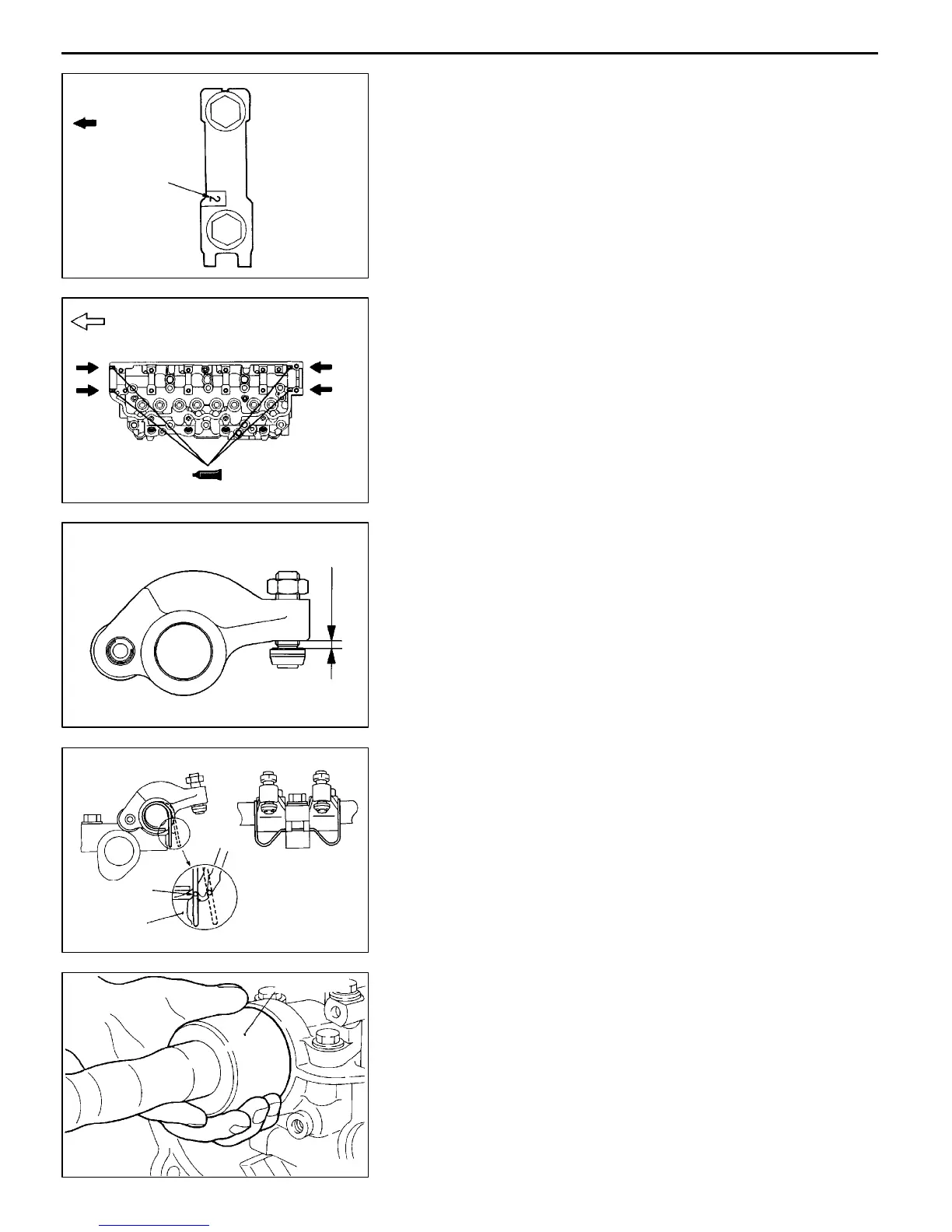

INSTALLATION SERVICE POINTS
"
A
A
CAMSHAFT BEARING CAP INSTALLATION
(1) Install the bearing caps in the designated position
confirming the identification numbers stamped on the cap
front. The No.5 cap has no identification number stamped.
"
B
A
FRONT, REAR CAMSHAFT BEARING CAP
INSTALLATION
(1) Apply sealant to the locations shown in the illustrations.
Specified sealant:
3M ATD Part No. 8660 or equivalent
"
C
A
ROCKER ARM ADJUSTING SCREW
INSTALLATION
(1) Do not screw the adjusting screw so far that its flange
may come into contact with the rocker arm. Leave some
distance (within 1 mm) between them.
"
D
A
ROCKER SHAFT SPRING INSTALLATION
(1) Hook the rocker shaft spring to the depression of the
bearing cap.
"
E
A
CAMSHAFT OIL SEAL INSTALLATION
(1) Using the special tool, install a new camshaft oil seal
into the front bearing cap.
PWEE9609
E
Dec. 1996Mitsubishi Motors Corporation
DEN658
Camshaft
sprocket side
Identification
number
DEN0905
Front
DEN0848
Within 1 mm
DEN0803
Depression
Bearing cap
DEN0773
MD998713
