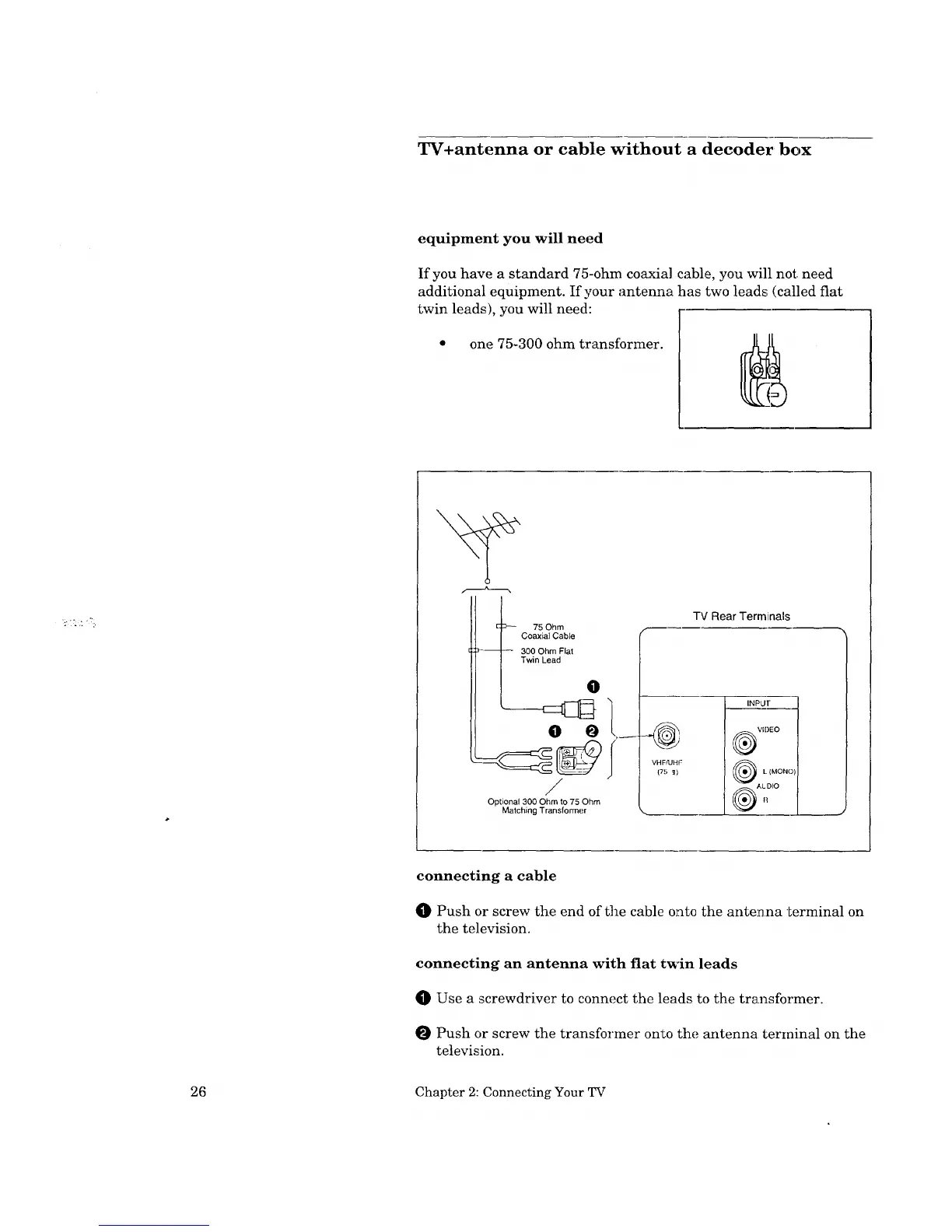

TV+antenna or cable without a decoder box
equipment you will need
If you have a standard 75-ohm coaxial cable, you will not need
additional equipment. If your anteima has two leads (called fiat
twin leads), you will need:
one 75-300 ohm transformer.
75 Ohm
Coaxial Cable
:_-- -- 300 Ohm Flat
Twin Lead
O
o O
/
Optional 300 Ohm to 75 Ohm
Matching Transformer
TV Rear Terminals
VHF/UHF
{75 _)
INPLIF
VIDEO
L (MONO)
®A=o
connecting a cable
O Push or screw the end of the cable onto the antenna terminal on
the television.
connecting an antenna with flat twin leads
Use a screwdriver to connect the leads to the transformer.
Push or screw the transformer onto the antenna terrainal on the
television.
26 Chapter 2: Connecting Your TV
