7 Read / Write / Verify / Initialize
7.4 Verifying [positioning parameters, servo parameters table information]
7.4 Verifying [positioning parameters, servo parameters table information]
Verifying the following FX Configurator-FP data with the 20SSC-H BFM.
• Positioning parameters
• Servo parameters
• Table information
1 Operate any of the following procedures
• Click [Verify module data].
• Select [Online]  [Verify module data].

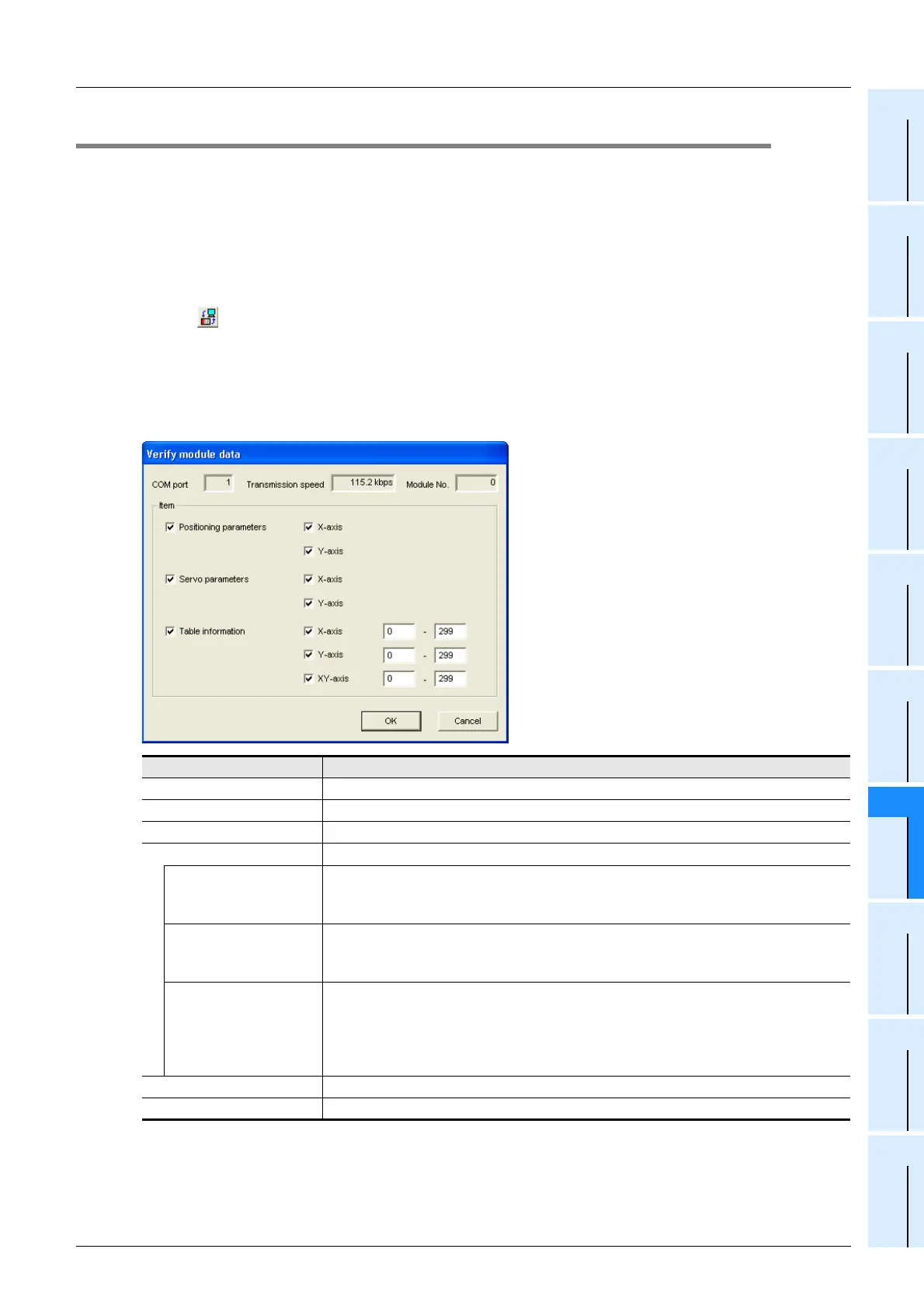

[Verify module data] dialog box appears.
2 Select the data to be verified.
Item Description
COM port Displays [COM port] in [Connection setup] dialog box
Transmission speed Displays [Transmission speed] in [Connection setup] dialog box
Module No. Displays [Module No.] in [Connection setup] dialog box
Item Ticks off the data to be verified
Positioning parameters
Ticks off the axis of positioning parameters to be verified
•X-axis
•Y-axis
Servo parameters
Ticks off the axis of servo parameters to be verified
•X-axis
•Y-axis
Table information
Sets the verifying range after ticking off the axis of table information to be verified
Setting range : 0 to 299
•X-axis
•Y-axis
•XY-axis
<OK> verifies the selected data by FX Configurator-FP and the BFM
<Cancel> Cancels selecting and closes the dialog box
