8 Debug in the positioning
8.2 Testing the Operation
77
FX Configurator-FP
Operation Manual
1
Introduction
2
Install Uninstall Start&Exit
3
Window and Operation Config
4
Creating Files
5
Data set
6
Setting The Connection
7
Data flow And Procedure
8
Debug In the Positioning
9
Print
10
Edit Function In data
8.2.3 Changing the present value
Changing the present value the 20SSC-H's present value by test mode.
For the procedure to switch into test mode, refer to Subsection 8.2.1.
1 Follow any of the procedures below.
• Click [Operation test X-axis] / [Operation test Y-axis].
• Select [Online]  [Test]  [Operation test]  [Operation test X-axis] / [Operation test Y-axis].
The position start tab in [Operation test X-axis] / [Operation test Y-axis] dialog box appears.
For position start tab, refer to Subsection 8.2.2.
For velocity change tab, refer to Subsection 8.2.4.
For zero return tab, refer to Subsection 8.2.5.
For JOG/MPG tab, refer to Subsection 8.2.6.
2 Click [Feed present value CHG] tab.
The display switches into [Feed present value CHG] tab.
3 Set each item for [Feed present value CHG].

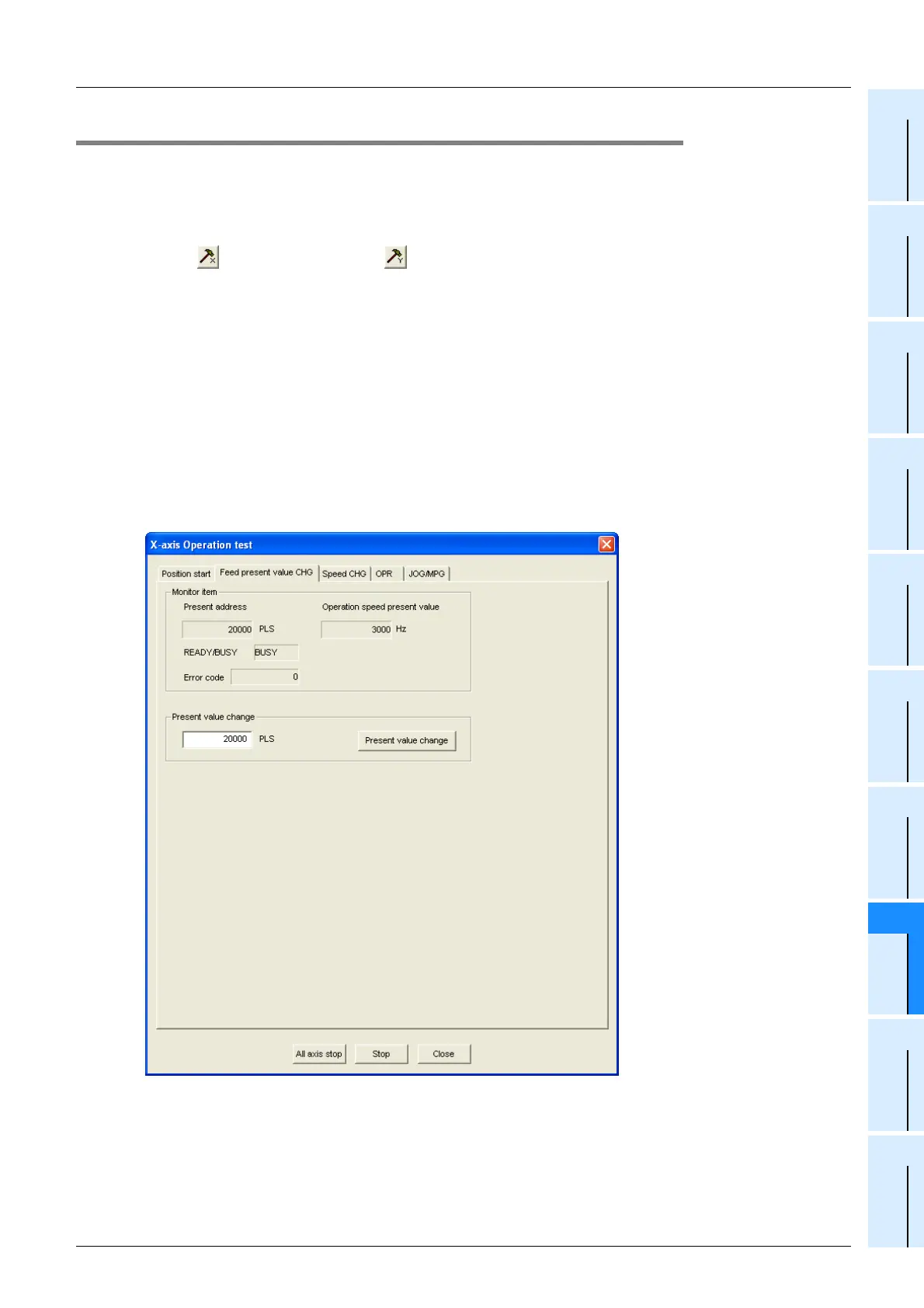

This window displays
[X-axis Operation status]
dialog box.
