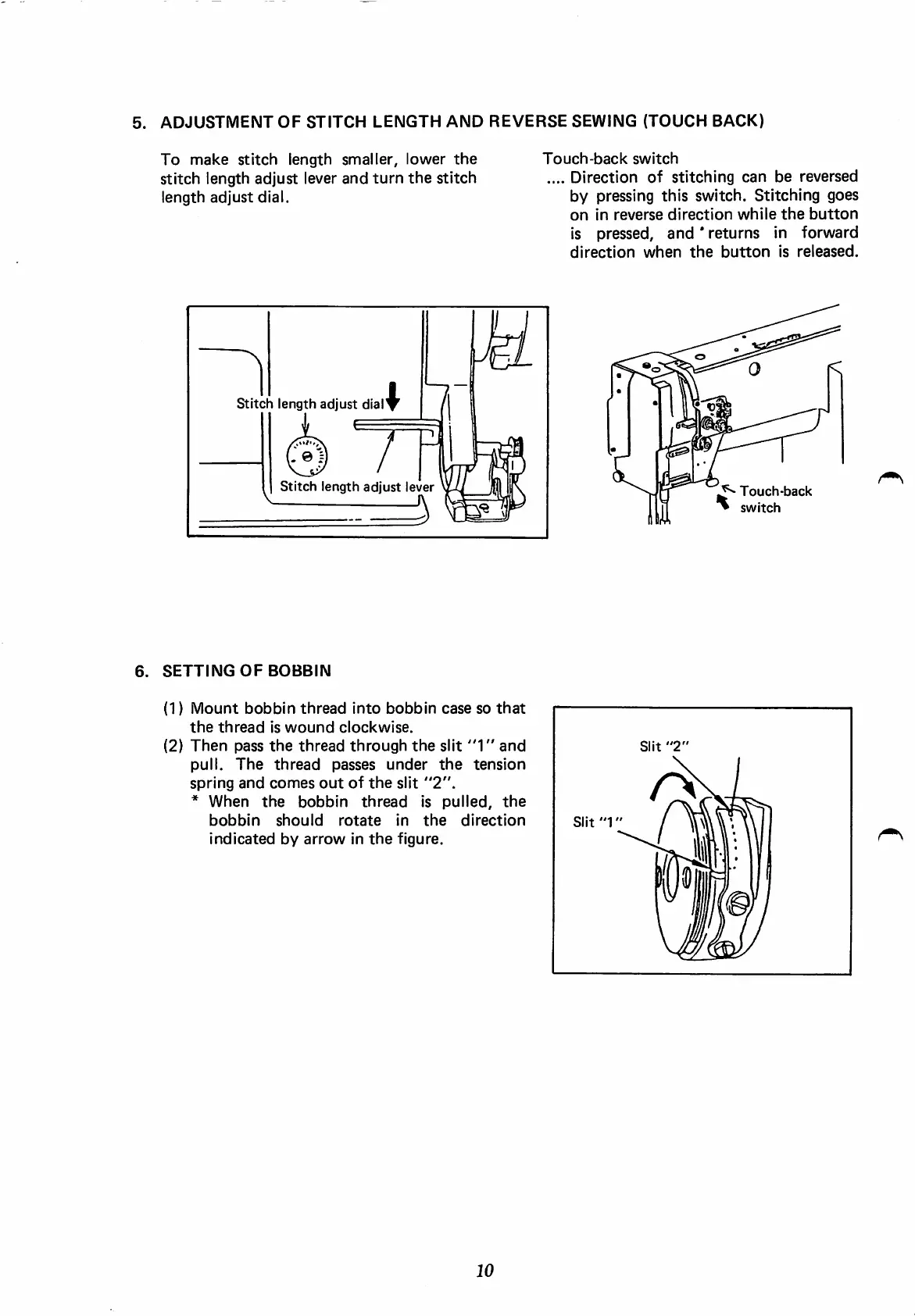

5. ADJUSTMENT OF STITCH LENGTH AND REVERSE SEWING (TOUCH BACK)
To make stitch length smaller, lower the
stitch length adjust lever and turn the stitch
length adjust dial.
Stitch length adjust dial
Stitch length adjust lever
6. SETTING OF BOBBIN
(1) Mount bobbin thread into bobbin case so that
the thread is wound clockwise.
(2) Then pass the thread through the slit "1" and
pull. The thread passes under the tension
spring and comes out of the slit "2".
* When the bobbin thread is pulled, the
bobbin should rotate in the direction
indicated by arrow in the figure.
10
Touch-back switch
.... Direction of stitching can be reversed
by pressing
this switch. Stitching goes
on in reverse direction while the button
is pressed, and *returns in forward
direction when the button is released.
S It "2
Slit "1
I
^ Touch-back
* switch
