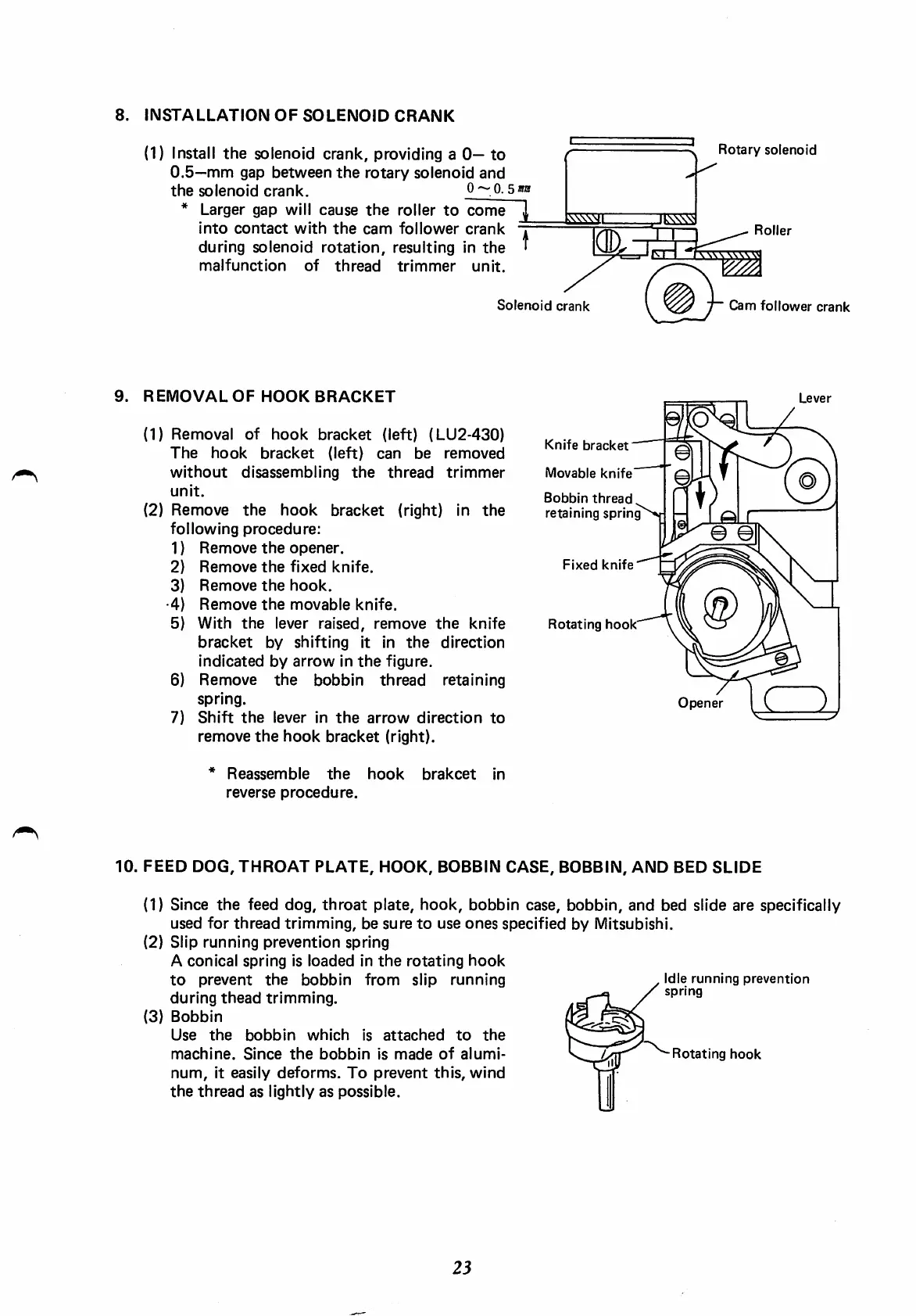

8. INSTALLATION OF SOLENOID CRANK
(1) Install the solenoid crank, providing a 0— to
0.5—mm gap between the rotary solenoid and
the solenoid crank. 0 -- 0.5»»
* Larger gap will cause the roller to come
into contact with the cam follower crank i
during solenoid rotation, resulting in the "
malfunction of thread trimmer unit.
V Rotary solenoid
msi lE^
Roller
Solenoid crank
9. REMOVAL OF HOOK BRACKET
(1) Removal of hook bracket (left) (LU2-430)
The hook bracket (left) can be removed
without disassembling the thread trimmer
unit.
(2) Remove the hook bracket (right) in the
following procedure;
1) Remove the opener.
2) Remove the fixed knife.
3) Remove the hook.
•4) Remove the movable knife.
6) With the lever raised, remove the knife
bracket by shifting it in the direction
indicated by arrow in the figure.
6) Remove the bobbin thread retaining
spring.
7) Shift the lever in the arrow direction to
remove the hook bracket (right).
* Reassemble the hook brakcet in
reverse procedure.
Knife bracket
Movable knife
Bobbin thread
retaining spring^
Fixed knife
Rotating hook
ssssw
Cam follower crank
Lever
0
0
Opener
10. FEED DOG, THROAT PLATE, HOOK, BOBBIN CASE, BOBBIN, AND BED SLIDE
(1) Since the feed dog, throat plate, hook, bobbin case, bobbin, and bed slide are specifically
used for thread trimming, be sure to use ones specified by Mitsubishi.
(2) Slip running prevention spring
A conical spring is loaded in the rotating hook
to prevent the bobbin from slip running
during thead trimming.
(3) Bobbin
Use the bobbin which is attached to the
machine. Since the bobbin is made of alumi
num, it easily deforms. To prevent this, wind
the thread as lightly as possible.
23
Idle running prevention
spring
Rotating hook
From the library of Superior Sewing Machine & Supply LLC - www.supsew.com
