9 SPRING CLAMP TERMINAL BLOCK
(2) Connecting a cable
Strip off about 6.5mm of the cable tip to install the bar solderless terminal to the
stripped part.
Connect the cable either by the (a) method or by the (b) method described
below.

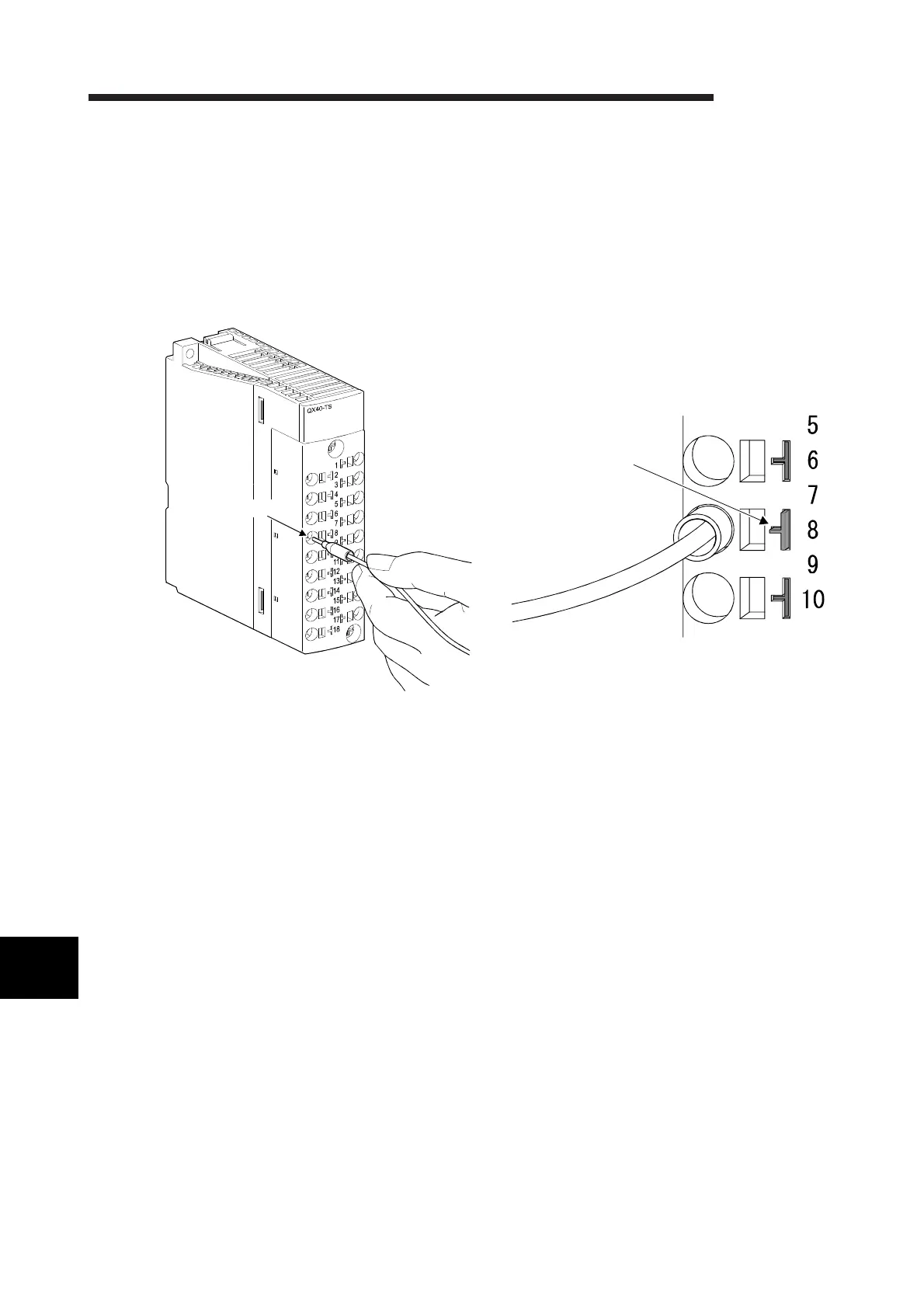

(a) Connection by inserting the cable
Insert the bar solderless terminal into the circular shaped hole and then
force the wire into the hole until the connection check indicator comes out.
*1
*1: If the connection check indicator does not come out, the bar solderless
terminal is not connected to the module properly.
Insert the bar solderless terminal until the connection check indicator comes
out.
Circular shaped hole
Connection Check
Indicator
