2 ENGINE - OUTLINE
Mitsubishi Diesel Engine S16R & S16R2 OPERATION & MAINTENANCE MANUAL
86
Pub. No. K29001-00320 Revision: 1
S16R2-PTAW-C

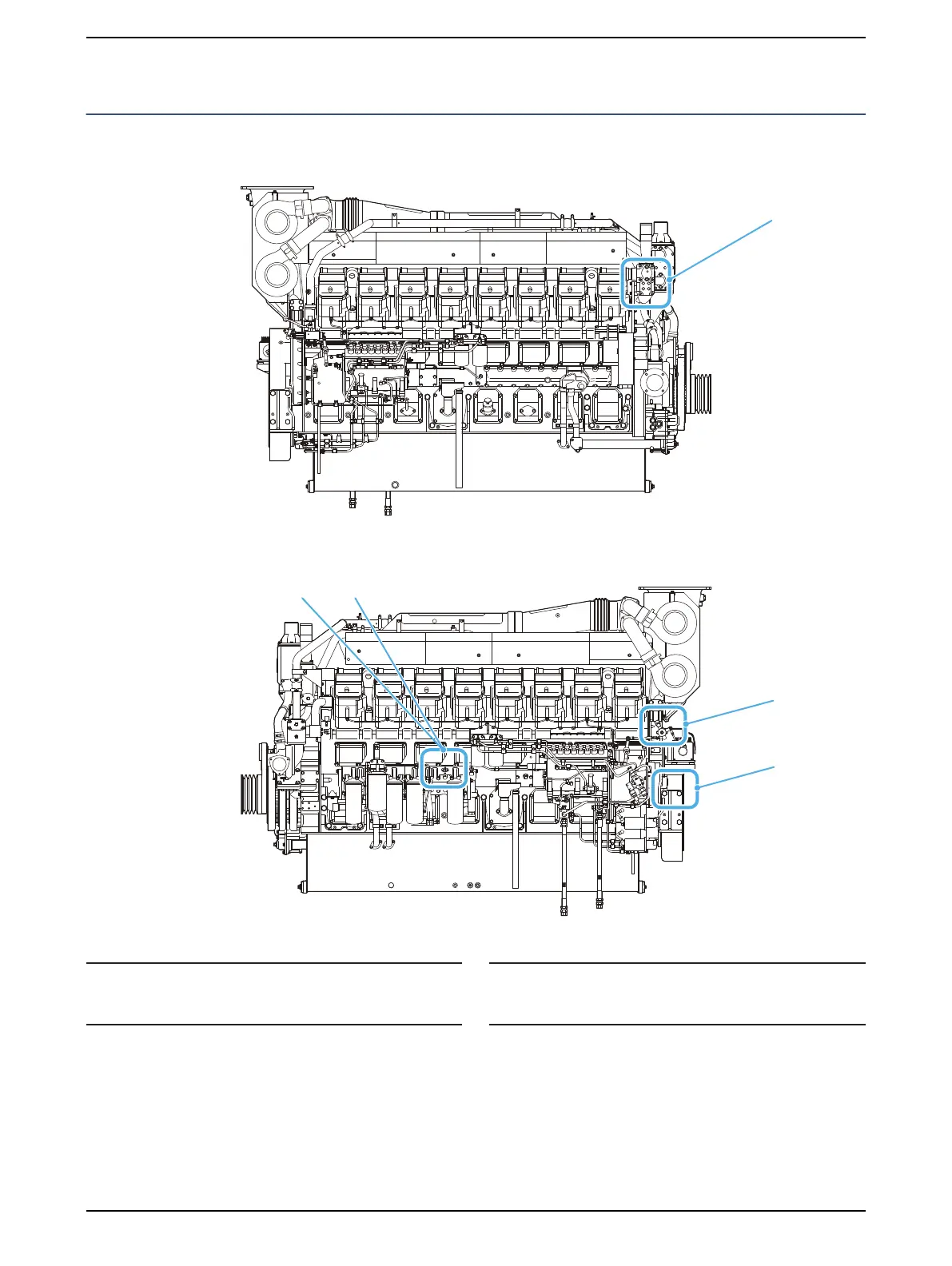

â–  Right Side View
â–  Left Side View
(2)
No. Name No. Name
(1) Oil pressure switch (4) Rotation detection pickup
(2) Thermo switch (5) Manual stop lever
(3) Oil filter alarm switch
(3)
(1)
(5)
(4)
