2-1
Chapter 2 NAME OF P
ARTS

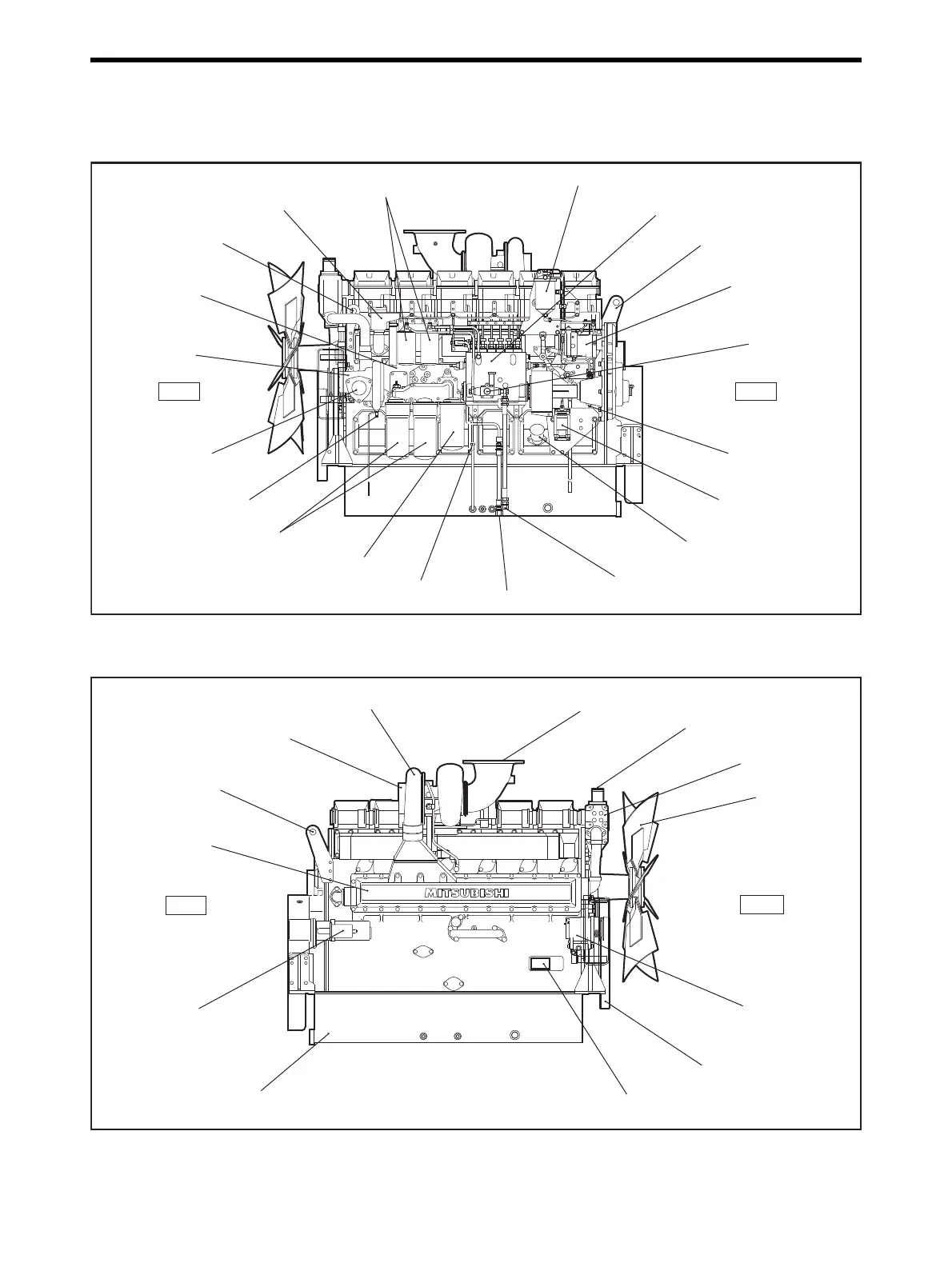

Engine External Diagrams
Lef
t Side
Fig. 2-1 Engine Left Side V
iew
Right Side
Fig. 2-2 Engine Right Side View
Fuel feed pump
Fuel injection pump
Hanger
Oil filler
Bypass oil filter
Oil filter
Hanger
Breather
Fuel filter
Coolant drain cock
Coolant drain cock
Coolant inlet
W
ater pump
Oil cooler
Rear
Front
Oil level gauge
Governor
Governor oil filter
Fuel inlet
Fuel return port
Stop solenoid
Starter
Hanger
Air intake inlet
T
urbocharger
Rear
Front
Alternator
Damper
Name plate
Thermostat
Coolant outlet
Exhaust outlet
Air cooler
Oil pan
Fan
