Chapter 2 NAME OF PARTS
Revolution Detection Pickup
The overrun detection pickup generates an alarm
when the engine speed becomes high and reaches
the specified engine speed.

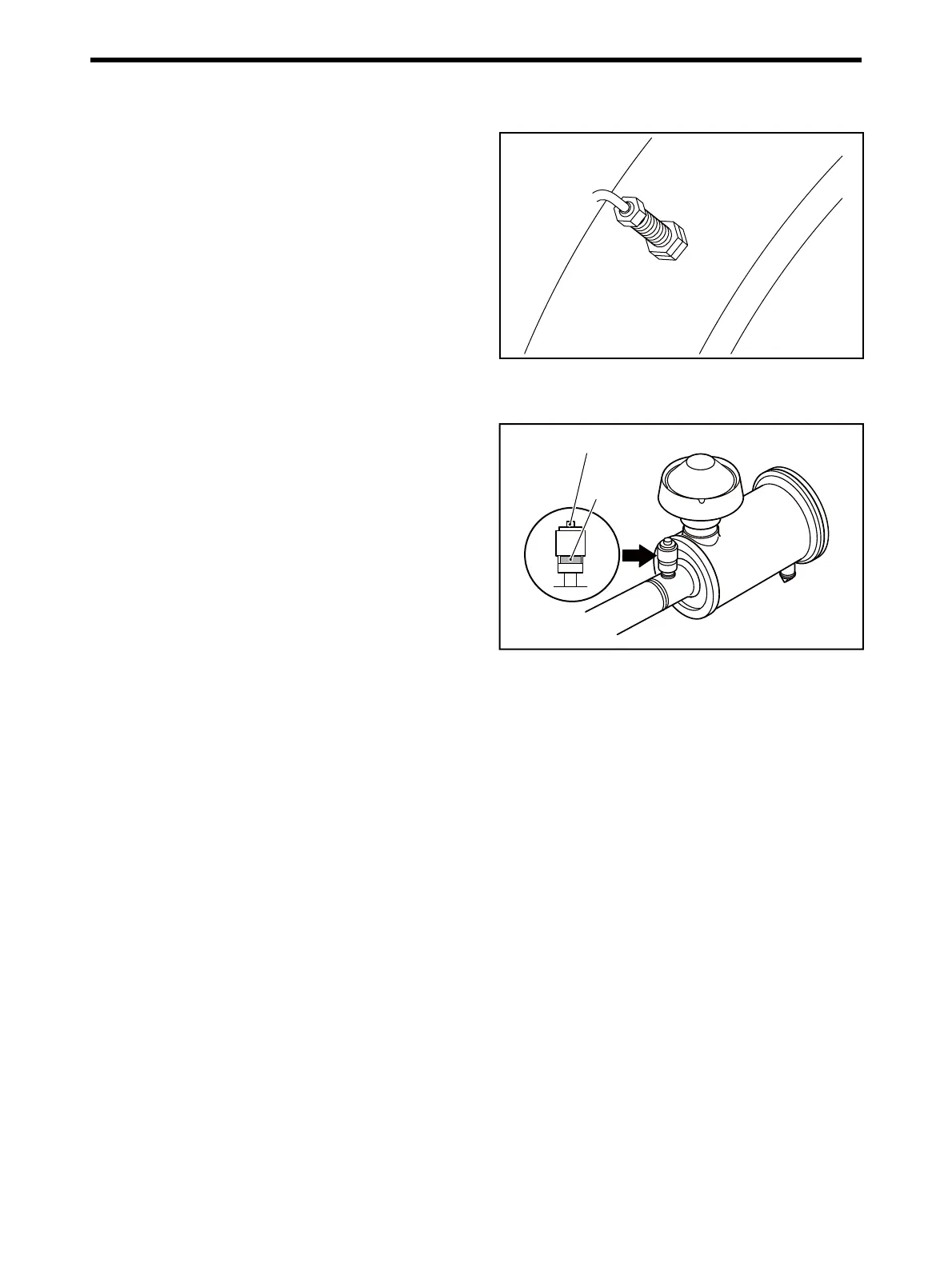

Fig. 2-12 Revolution Detection Pickup
Air Cleaner Indicator
If the element is clogged, the intake air is decreased
and the red signal mark will be displayed. The signal
indicates only, and does not generate an alarm,
Therefore, the periodic visually inspection is needed.
Press the reset button on the top of air cleaner indica-
tor and restore the signal after cleaned the air cleaner
indicator or replaced with a new one.
Fig. 2-13 Air Cleaner Indicator
Reset button
Signal
(red)
