1. OUTLINE OF OPERATION CONTROL BY MICROCOMPUTER

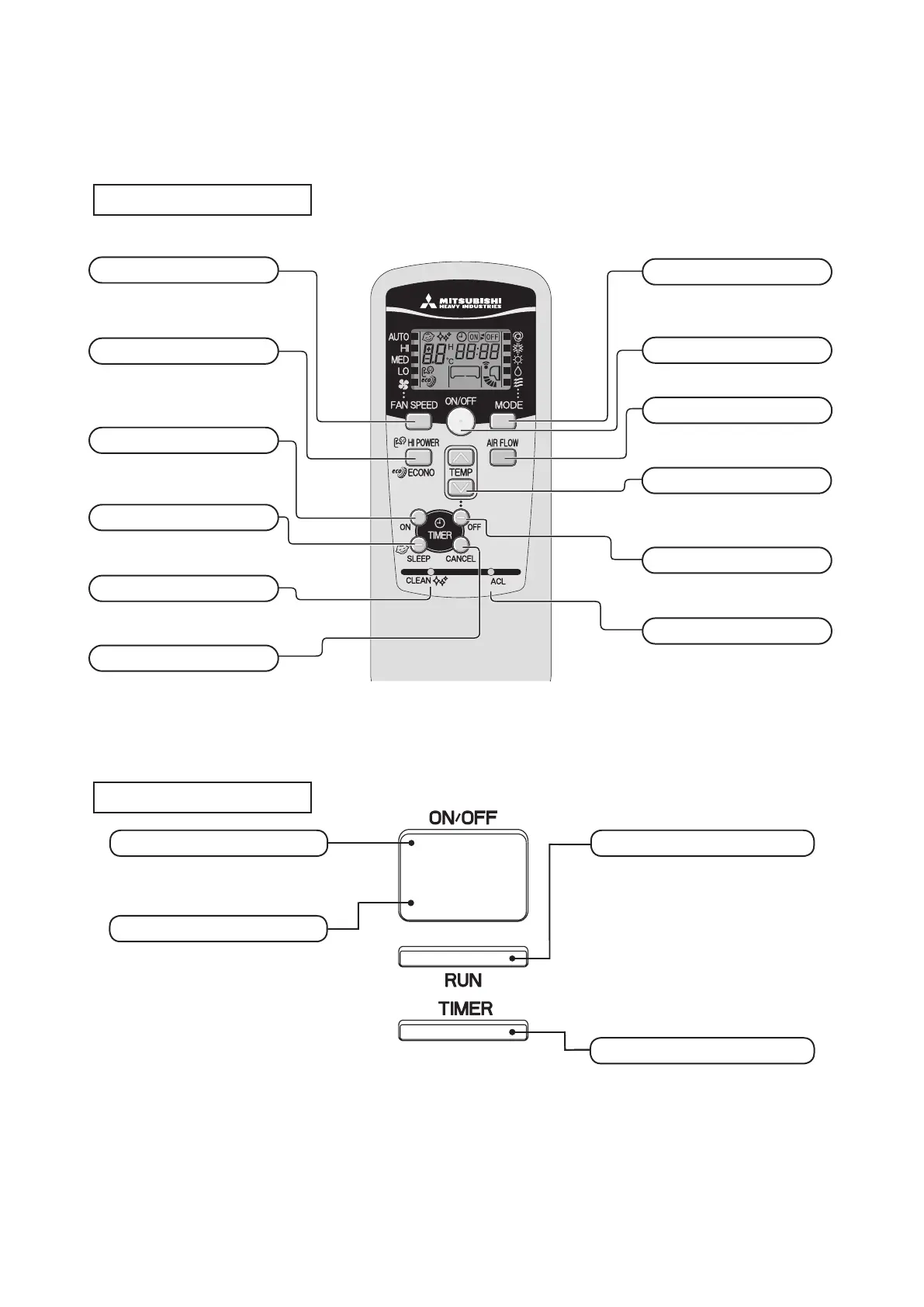

(1) Operation control function by wireless remote control
◆
Operation section
OPERATION MODE select button
Each time the button is pressed, the
mode changes.
•
The above illustration shows all controls, but in
practice only the relevant parts are shown.
ON/OFF (luminous) button
Press to start operation, press again to
stop.
TEMPERATURE button
These buttons set the room temperature.
(These buttons are used for setting the
current time and timer function as well.)
CANCEL button
This button cancels the ON timer, OFF
timer, and SLEEP operation.
HI POWER/ECONO button
This button changes the HIGH POWER/
ECONOMY mode.
ON TIMER button
This button selects ON TIMER operation.
OFF TIMER button
This button selects OFF TIMER
operation.
SLEEP button
This button selects SLEEP operation.
CLEAN switch
This switch selects the SELF CLEAN
mode.
FAN SPEED button
Each time the button is pressed, the fan
speed changes.
AIR FLOW (UP/DOWN) button
This button changes the air flow
(up/down) direction.
ACL switch
This switch resets the program to default
state.
Unit display section
Remote control
This button can be used for turning on/off
the unit when a remote control is not available.
Unit ON/OFF button
RUN light (green)
• Illuminates during operation.
•
Blinks slowly when SELF CLEAN operation
(3 seconds ON, 1 second OFF).
• Blinks when air flow is stopped to
prevent blowing out of cold air in
heating operation. (1.5 seconds ON,
0.5 seconds OFF)
TIMER light (yellow)
Ⅰ
ll
uminates during TIMER operation.
Wireless remote control signal receiver
