Connecting a composite Video source device
Examine your Video source device to determine if it has a set of unused composite Video output sockets available:
• If so, you can continue with this procedure.
• If not, you will need to reassess which method you can use to connect to the device.
To connect the projector to a composite Video source device:
1. Take a Video cable and connect one end to the composite Video output socket of the Video source device.
2. Connect the other end of the Video cable to the VIDEO socket on the projector.

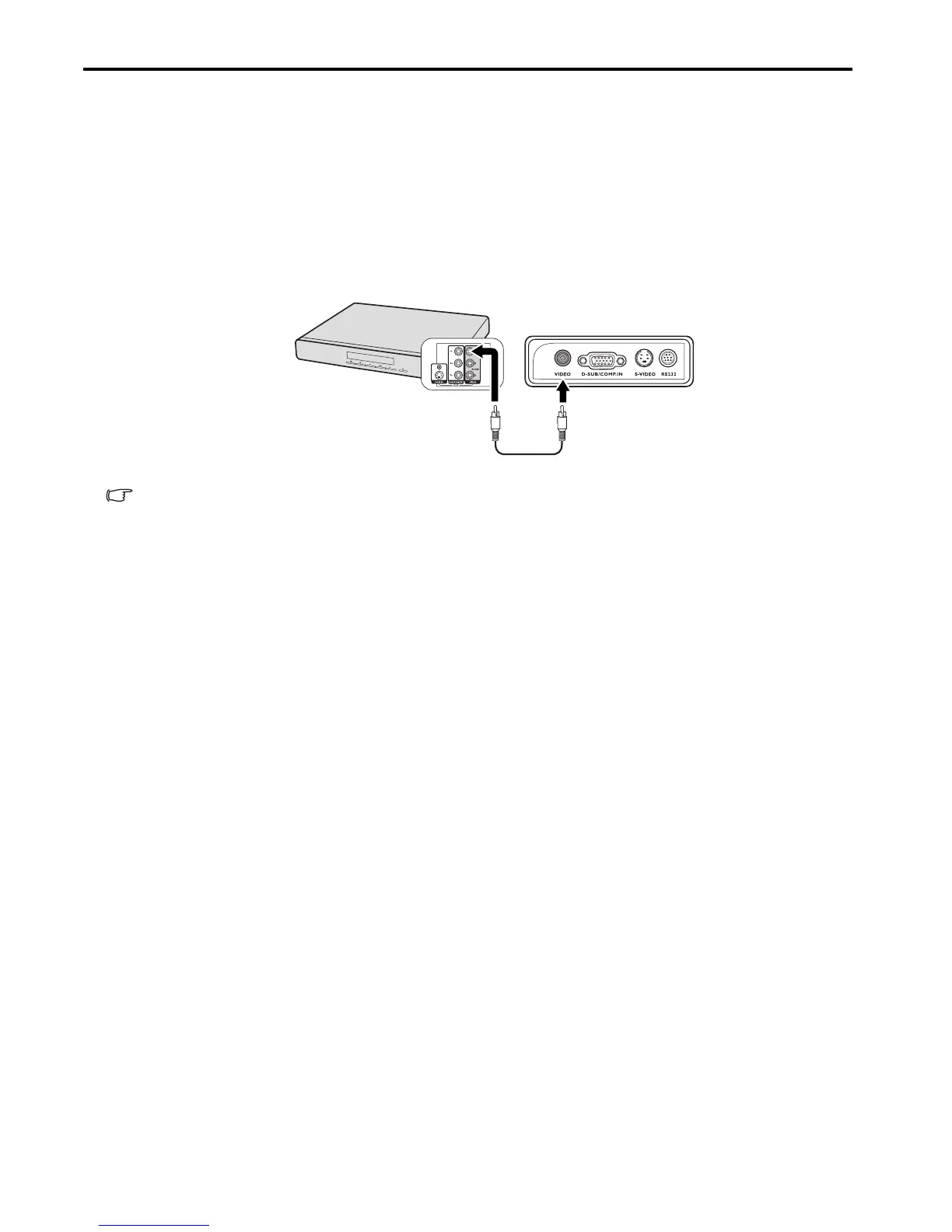

The final connection path should be like that shown in the following diagram:
• If the selected video image is not displayed after the projector is turned on and the correct video source has been
selected, check that the Video source device is turned on and operating correctly. Also check that the signal cables have
been connected correctly.
• You need only connect to this device using a composite Video connection if Component Video and S-Video inputs are
unavailable for use. See "Connecting Video source devices" on page 14 for details.
