MOTORGUIDE WIRELESS
8M4000137 For Questions, Contact Consumer Affairs at #1-920-929-5040 18
© 2005, MotorGuide www.motorguide.com

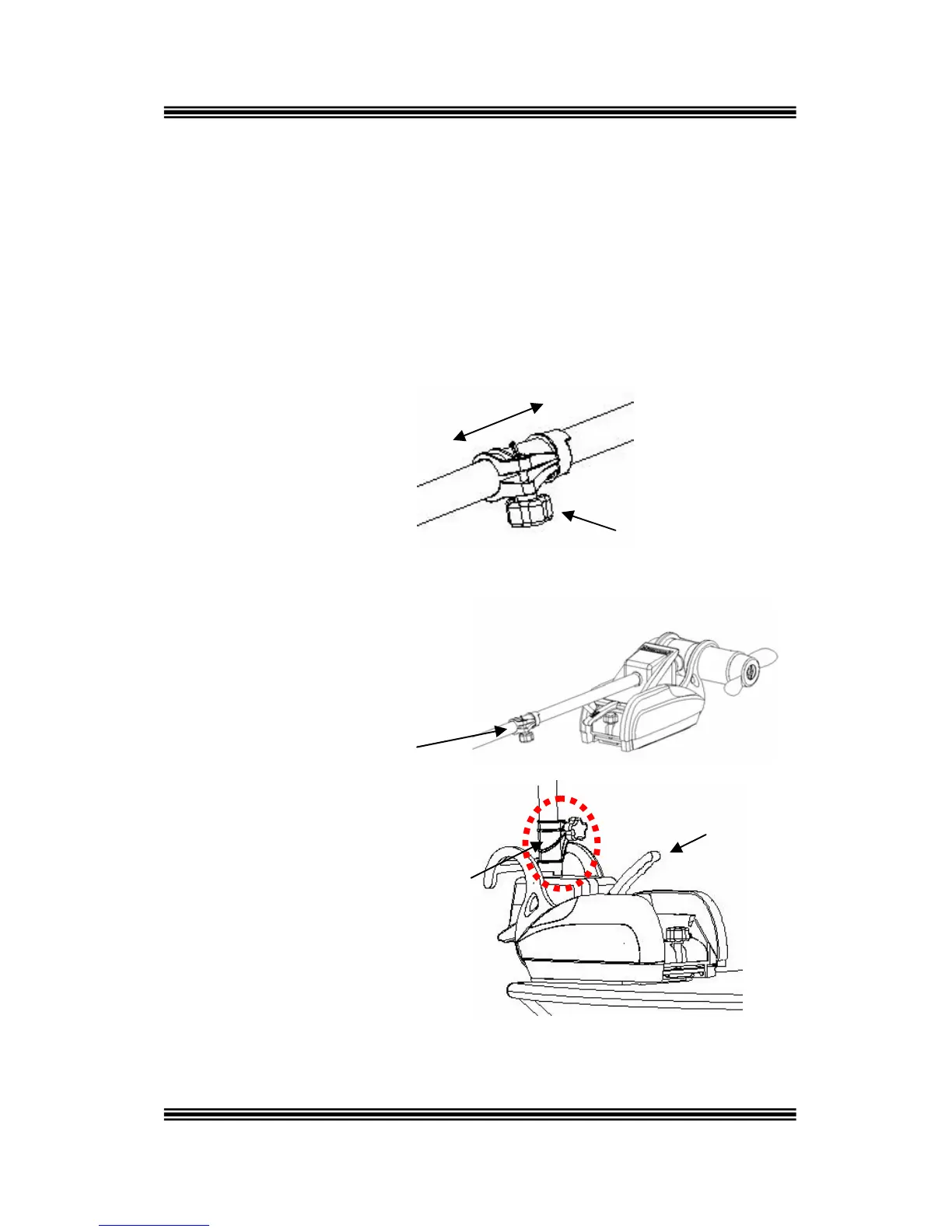

MOTOR & MOUNT OPERATION
Adjusting the Motor Depth and Deploying the Motor
1. Loosen the depth collar by turning the knob handle. Slide the depth
collar up or down the shaft to a position that will allow the lower unit to
be submerged at least 12 inches (30cm) below the water surface
when the motor is fully deployed. When the depth collar is in the
desired location, turn the depth collar handle to tighten. Also, be
cautious that the depth of the motor is deep enough to prevent the
lower unit from striking obstacles that could damage the skeg or prop.
Depth Collar
Knob Handle
Slide Depth Collar
Up or Down Shaft
2. Pull up on the release
handle and then raise the
motor out of the stow
position.
Motor in Stowed Position
3. Hold
the
motor
by the shaft or the top
housing and raise it into a
vertical position. Lower
the motor until the depth
collar rests on top of the mount housing collar. The motor is ready to
connect to the power source.
Release Handle
Depth Collar Resting
on Mount
To Next Page
