Final Reassembly
Final reassembly consists of replacing the gasket and then installing
the front housing of the amplifier-loudspeaker onto the rear housing.
Repair Parts for Final
Reassembly
The repair parts required for final reassembly of the Amplifier-
Loudspeaker are listed in table 9.
Table 9 Repair Parts Required for Final Reassembly
Motorola Part
No.
Description
Quantity
Required
3285203C01 Gasket (Required for Final Assembly of
Amplifier-Loudspeaker)
1
1110027B23 Gasket Lubricant (Required for Final
Assembly of Amplifier-Loudspeaker)
As
Required
MAEPF-26574-O
9 Foot Cable
Wire Leads
Cable Jacket Must Not
Protude Further than 0.25 in.
Beyond Strain Relief
Strain
Relief
9 Foot
Cable
9 Foot
Cable

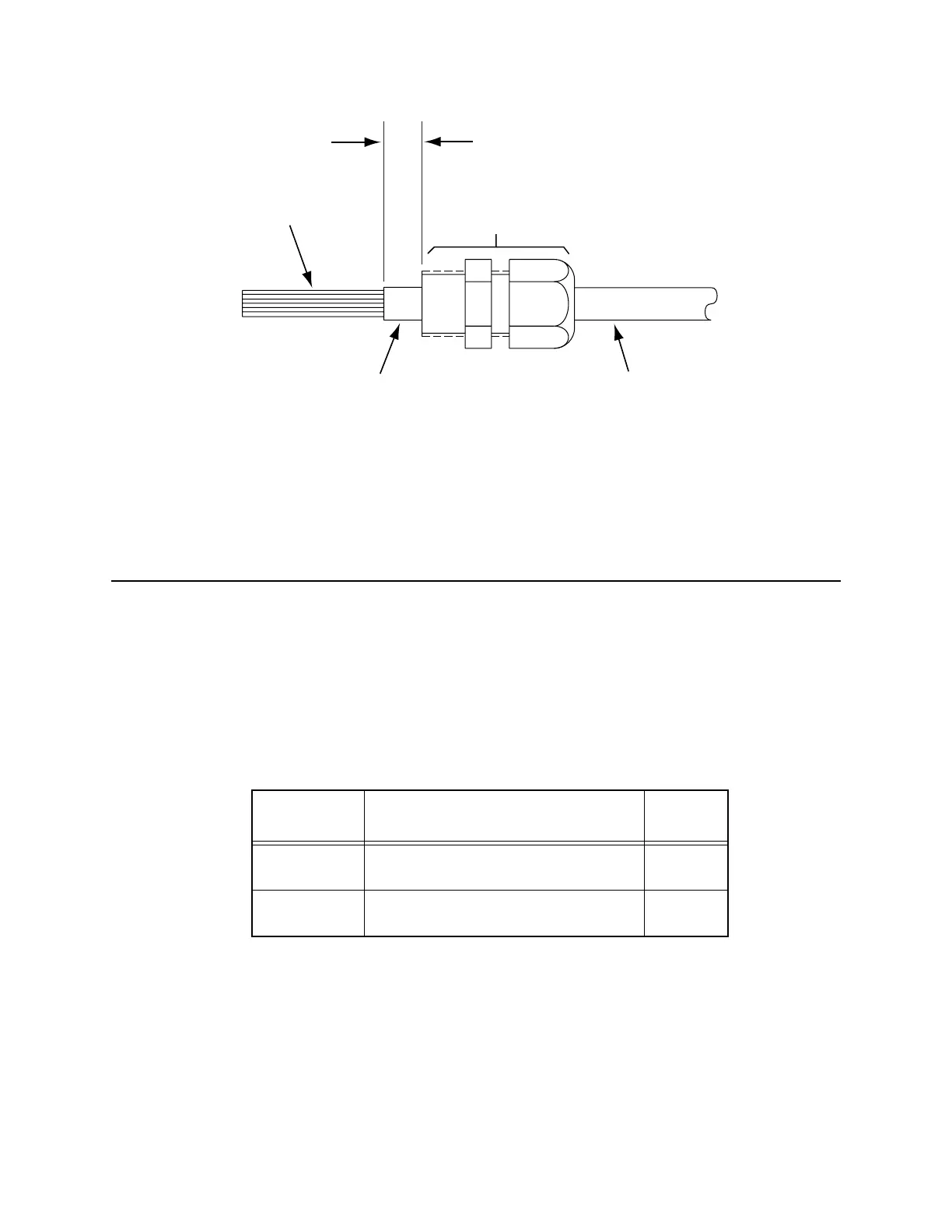

Figure 10 Installing 9-Foot Cable In Strain Relief
