Motorola HSN4035 User Manual

17
Exploded View and
Repair Parts List
Figure 12 is an exploded view, which illustrates and locates all repair
parts for the Amplifier-Loudspeaker, Motorola kit HSN4035( ). Table 8
lists all repair parts for the Amplifier-Loudspeaker and provides
Motorola part numbers for all repair parts. Table 10 crossreferences the
repair parts to the parts illustrated on Figure 12.
Table 10 Repair Parts for Amplifier-Loudspeaker Motorola Kit HSN4035( )
Reference No. on
Figure 12
Descriprion Motorola Part No.
1 Gasket 3285203C01
2 Speaker 5085891B01
3 Printed Circuit Board 0105956V07
4 Locknut, Strain Relief 4285841A02
5 9-Foot Cable 3085853B01
6 Wave Washer, Volume Pot. 0402838X01
7 Spanner Nut, Volume Pot. 0205609X01

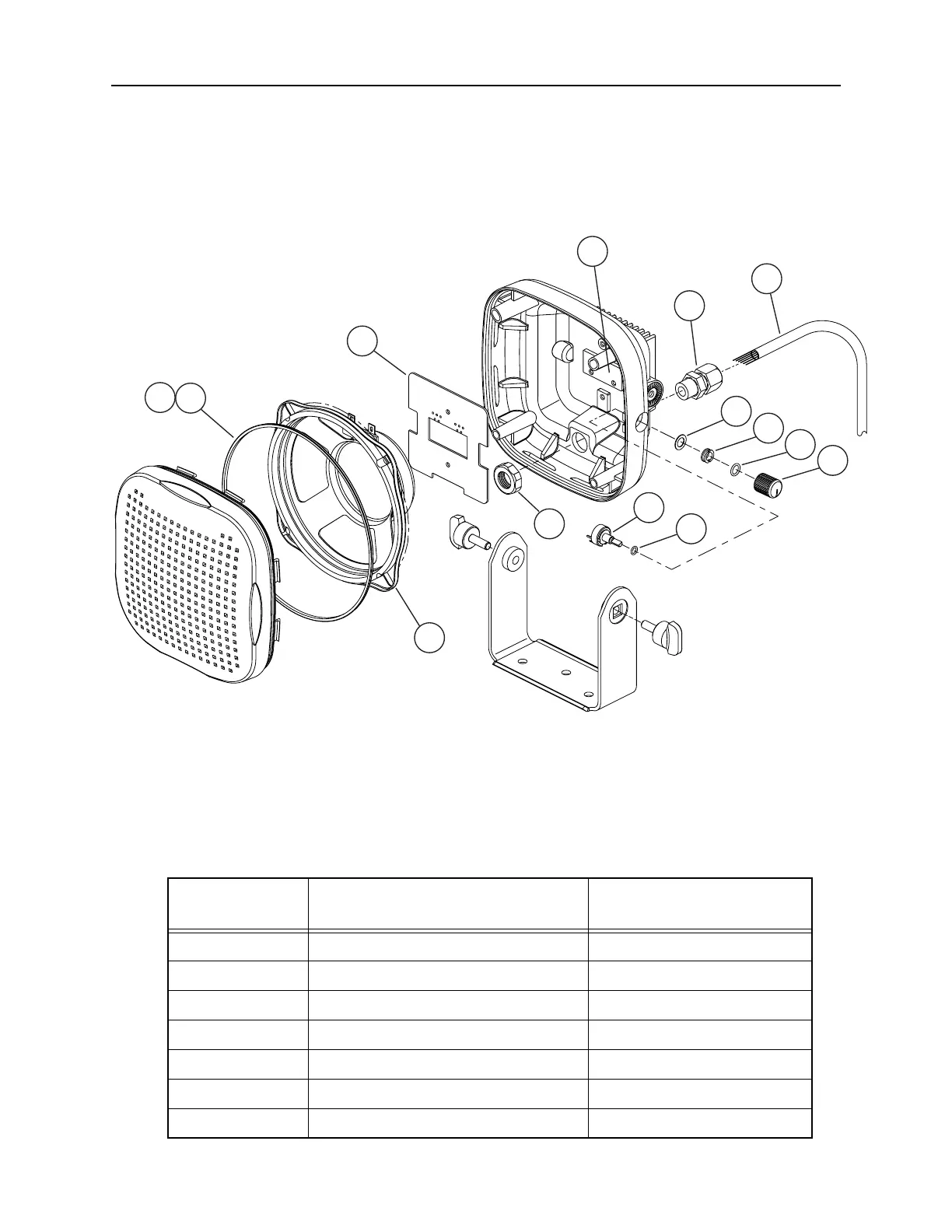

Figure 12 Amplifier-Loudspeaker, Motorola Kit HSN4035( ) Exploded View
MAEPF-26569-O
1
12
10
11
4
2
3
13
5
4
6
7
8
9
