Reassembly Procedure
1. Place speaker back into rear housing with terminals on speaker
oriented over TP10 and TP11 on PCB. Be certain that speaker wires
Zipcord) fold forward towards center of PCB and then back and are
not pinched between back of speaker and PCB.
2. Refer to Figure 11. Remove and discard gasket from front housing.
3. Lubricate new gasket Motorola part no. 3285203C01, using gasket
lubricant Motorola part no. 1110027B23.
4. Place new gasket into front housing being certain that gasket is
oriented as shown in Figure 11.
5. Snap front housing onto rear housing.
6. Inspect entire recess area around the housing to verify that gasket
is not pinched between front and rear housings. If gasket is not
pinched, reassembly is complete. If gasket is pinched, proceed to
step 7.
7. perform procedure titled
Initial Disassembly on page 5.
Then repeat
steps 2 through 6 above.
MAEPF-26578-O
Front Housing
See Detail A
Detail A
Front Edge
of Gasket
Delta
Gasket
Back Edge
of Gasket

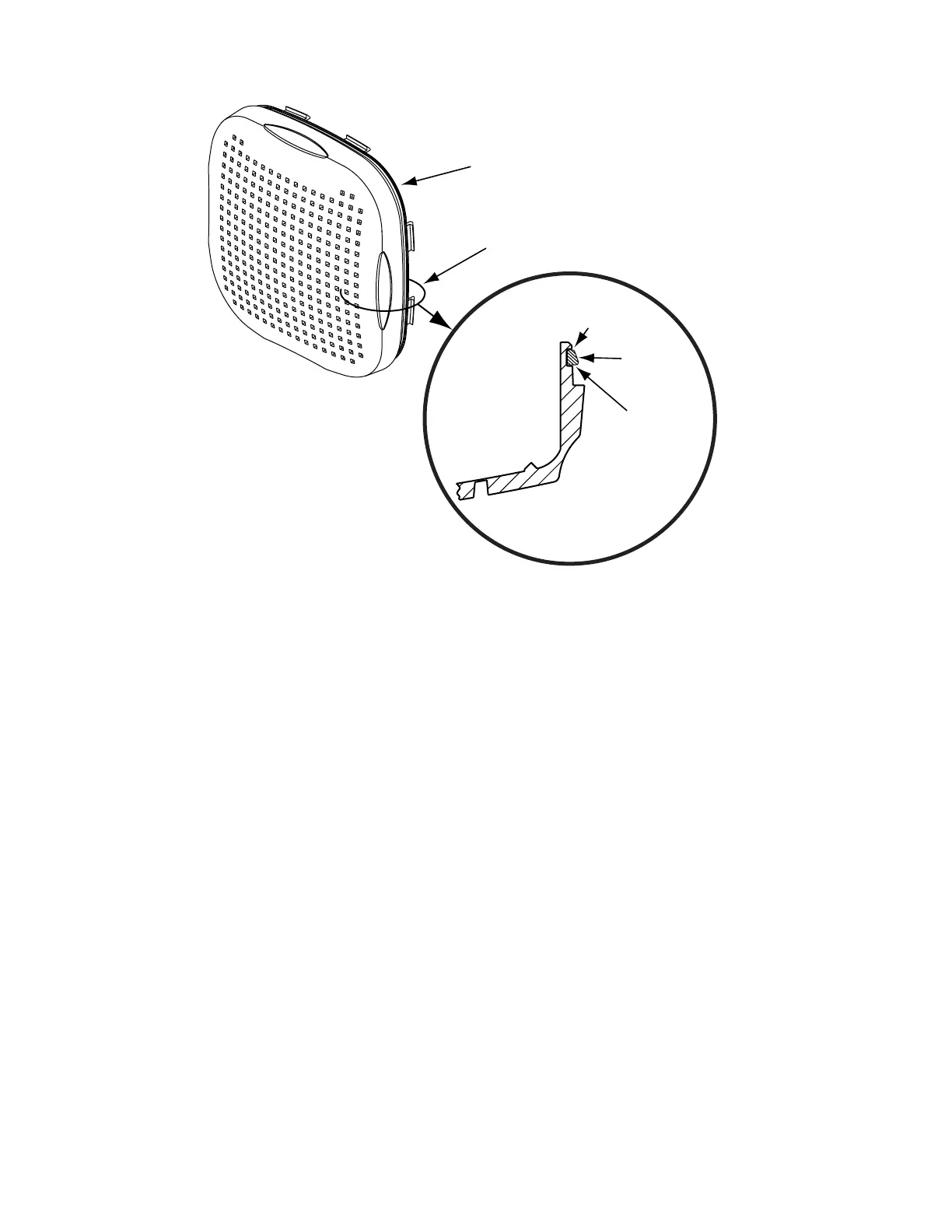

Figure 11 Final Reassembly of Amplifier-Loudspeaker
