30 October 14, 2005 6809495A75-O
Disassembly L6
Removing and Replacing the Keypad PC Board
1. Remove the battery cover, battery, SIM, antenna, transceiver PC board, and
front housing, as described in the procedures.
2. Use the plastic tweezers to remove the end of the coaxial cable from the chassis
assembly (see Figure 20).
3. Turn the keypad PC board over and remove the Board to Board (B2B)
connector.
4. To replace, align the keyboard connector of the keyboard with the keyboard
connector on the transceiver board and press it into place.
5. Thread the coaxial cable through the front hole in the front housing and
alongside the keypad PC board.
6. Reassemble the transceiver PC board, rear housing, battery, and battery cover
as described in the procedures.
050788o

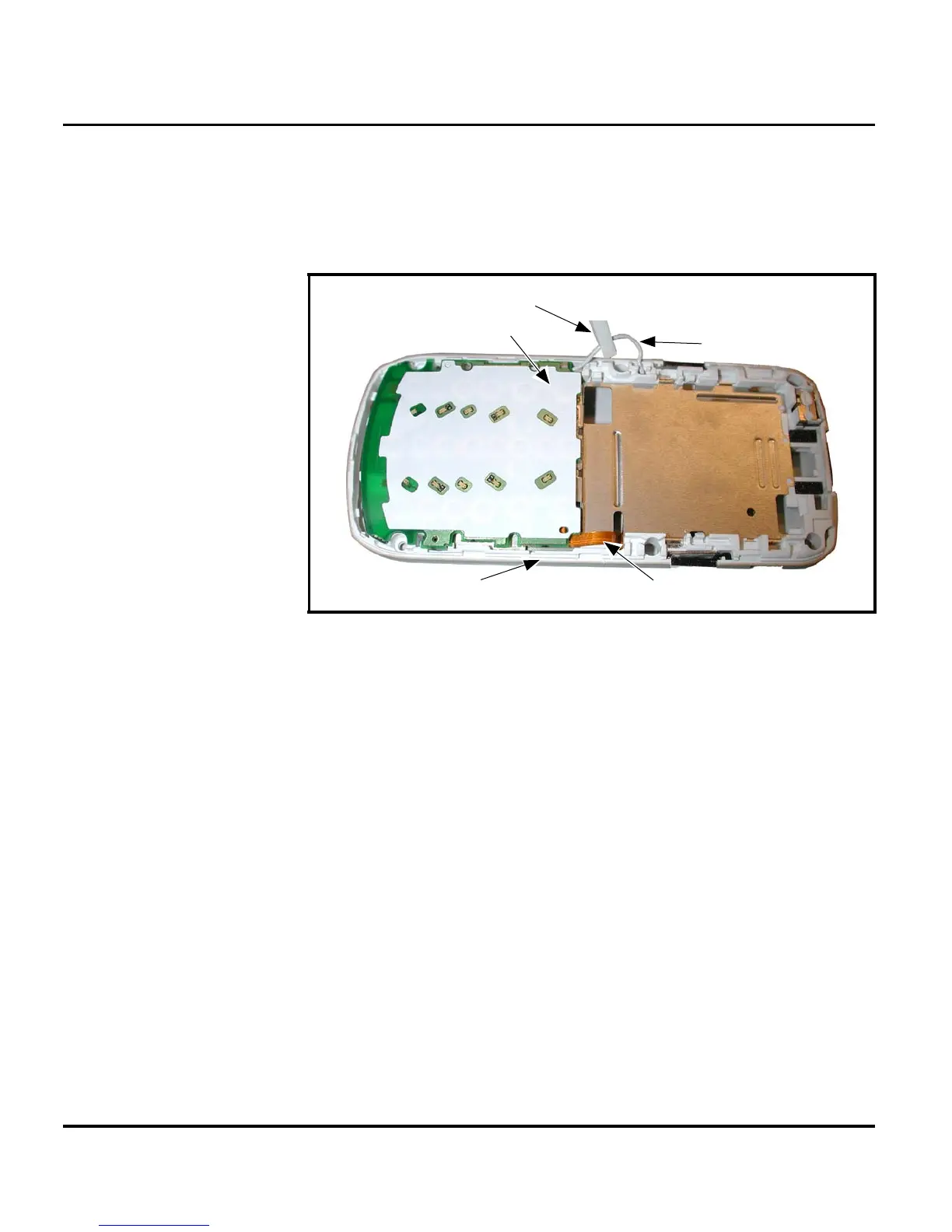

Figure 20. Removing and Replacing the Keypad PC Board
Coaxial Cable
Keypad Flex Cable
Plastic Tweezers
Chassis Assembly
Keypad PC Board
