Motorola W220 Service Manual

June 22, 2006 33
Level 1-2 Service Manual Disassembly
PRELIMINARY
Removing and Replacing the Speaker
1. Remove the battery door, battery, lower housing cover, PCBA, and antenna
carrier, as described in the procedures.
2. Remove the Speaker from Speaker Box with a tweezer as shown in Figure 24.
3. To replace, align the speaker hook onto the Speaker Box.
4. Replace the speaker box, antenna carrier, PCBA, lower housing cover, battery, and battery
door as described in the procedures.
Removing and Replacing the Screw Cover & Cap & Screws from Housing B
1. Remove the battery door, battery, lower housing cover, lower PCB, antenna carrier as
described in the procedures.
2. Remove the Screw Cover & Cap from Housing B with a tweezer as shown in Figure 25.

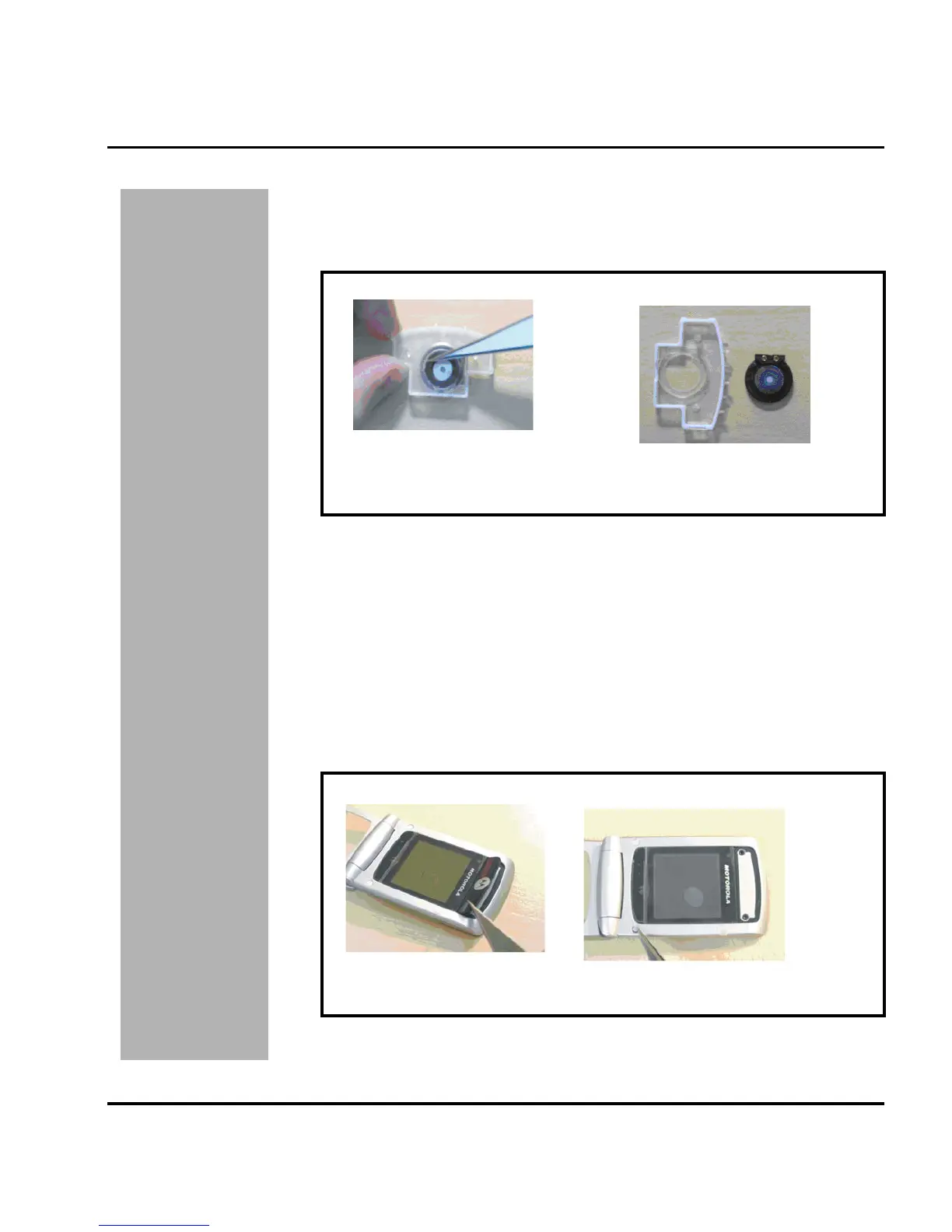

Figure 24. Removing the Camera-FPC and Speaker-FPC connectors
Figure 25. Removing the Screw Cover & Cap

Motorola W220 Specifications

General

Rear camera	No
FM radio	Yes
Ringer type	Polyphonic
Display type	CSTN
Display resolution	128 x 128 pixels
Display number of colors	65536 colors
Internal memory	0.5 MB
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Product color	Pink
Talk time (2G)	8 h
Battery capacity	850 mAh
Standby time (2G)	290 h
Data network	GPRS
Personal info management (PIM)	Alarm clock, Calendar

Weight and Dimensions

Depth	46.7 mm
Width	16.7 mm
Height	95 mm
Weight	93 g
