2-22
MS-6580 ATX Mainboard

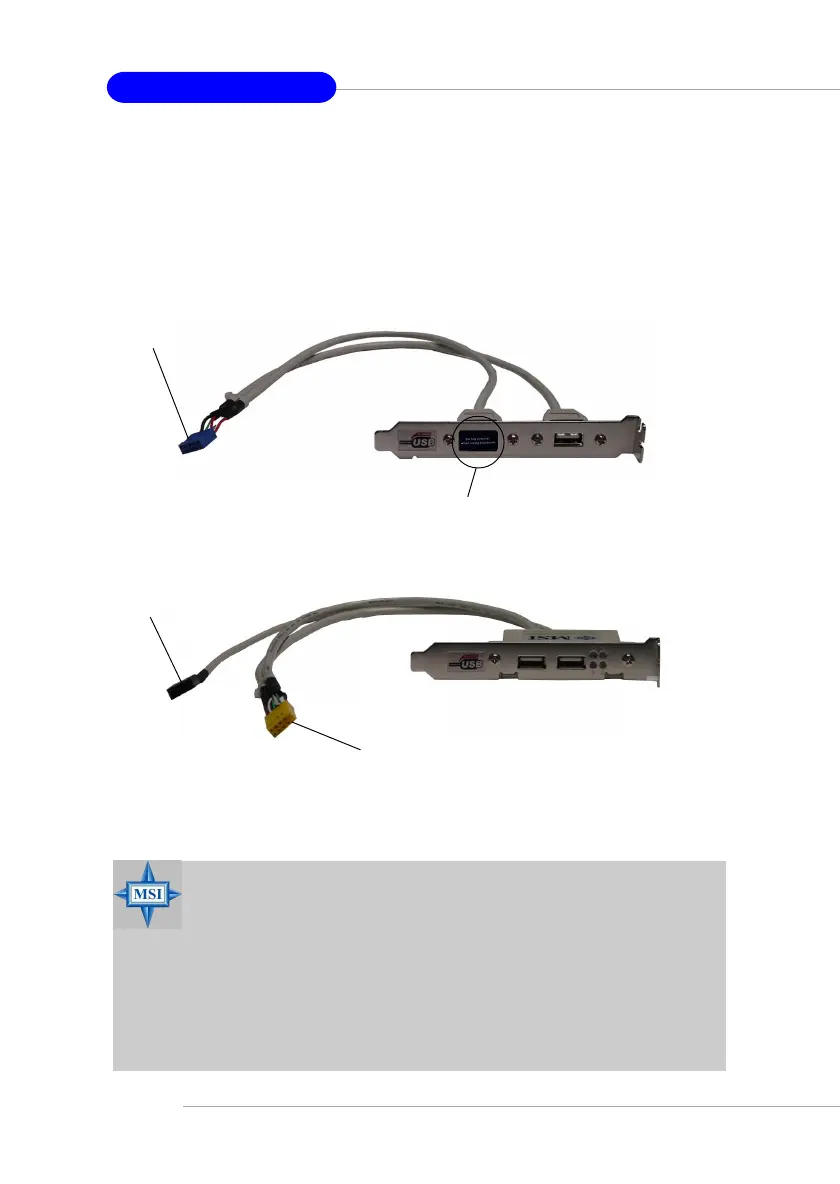

To Attach the Optional USB 2.0 Ports:
1. Take out the USB 2.0 bracket and D-Bracket™ 2.
2. Locate the blue USB pinheader (JUSB2) and yellow USB pinheader
(JUSB1) on the motherboard.
3. Connect the USB 2.0 bracket to blue USB pinheader, and D-Bracket™ 2 to
yellow USB pinheader.
4. Place the USB 2.0 bracket and D-Bracket™ 2 into the appropriate slot of
the system case.
Connected to JUSB2 (the USB
pinheader in blue color)
USB 2.0 Bracket
(optional)
This USB 2.0 port will not function when a Bluetooth module
is connected to the onboard Bluetooth pinheader JBT1. If no
Bluetooth function is applied, remove the sticker to utilize this
port.
D-Bracket™ 2
(optional)
Connected to JUSB1 (the USB
pinheader in yellow color)
Connected to JDB1
MSI Reminds You...
The USB 2.0 technology is downward compatible with USB 1.1
spec. To use the USB 2.0 ports, you have to install the USB 2.0
driver, which is supplied by Microsoft for Windows
®
2000 and
XP. If you have any problems regarding the USB 2.0 driver,
please visit the Microsoft Web site for more information.
For details on the bluetooth settings, please refer to PC2PC
Bluetooth Manual.
