MSI B350M BAZOOKA User Manual

26

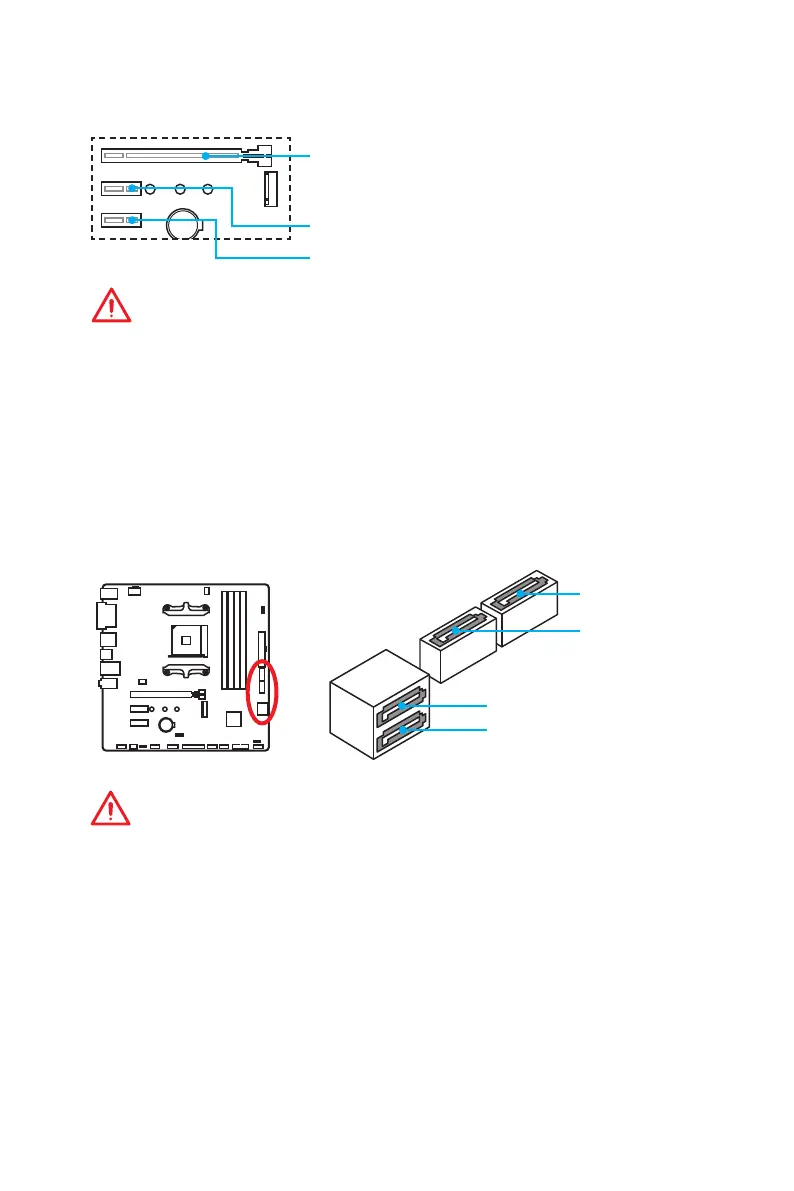

Overview of Components
PCI_E1~3: PCIe Expansion Slots
PCI_E1: PCIe 3.0 x16 (RYZEN Series processors)
PCIe 3.0 x8 (7th Gen A-series/ Athlon™
processors)
PCI_E3: PCIe 2.0 x1
PCI_E2: PCIe 2.0 x1
Important
y If you install a large and heavy graphics card, you need to use a tool such as MSI
Gaming Series Graphics Card Bolster to support its weight to prevent deformation
of the slot.
y When adding or removing expansion cards, always turn off the power supply and
unplug the power supply power cable from the power outlet. Read the expansion
card’s documentation to check for any necessary additional hardware or software
changes.
SATA1~4: SATA 6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.
SATA1
SATA3
SATA4
SATA2
Important
y Please do not fold the SATA cable at a 90-degree angle. Data loss may result during
transmission otherwise.
y SATA cables have identical plugs on either sides of the cable. However, it is
recommended that the flat connector be connected to the motherboard for space
saving purposes.

MSI B350M BAZOOKA Specifications

General

Form Factor	Micro ATX
Chipset	AMD B350
Socket	AM4
Memory Slots	4
Maximum Memory	64 GB
LAN	Realtek 8111H Gigabit LAN
RAID Support	RAID 0, 1, 10
Memory Speed	DDR4 2667 / 2400 / 2133 MHz
PCIe Slots	1 x PCIe 3.0 x16
Storage Interface	1 x M.2
USB Ports	6 x USB 3.1 Gen1, 6 x USB 2.0
Audio	Realtek ALC892 Codec
Video Outputs	DVI-D, HDMI
