Overview of Components

131

ATX_PWR1

1 +3.3V 13 +3.3V

2 +3.3V 14 -12V

3 Ground 15 Ground

4 +5V 16 PS-ON#

5 Ground 17 Ground

6 +5V 18 Ground

7 Ground 19 Ground

8 PWR OK 20 Res

9 5VSB 21 +5V

10 +12V 22 +5V

11 +12V 23 +5V

12 +3.3V 24 Ground

4 1

CPU_PWR1

1 Ground 5 +12V

2 Ground 6 +12V

3 Ground 7 +12V

4 Ground 8 +12V

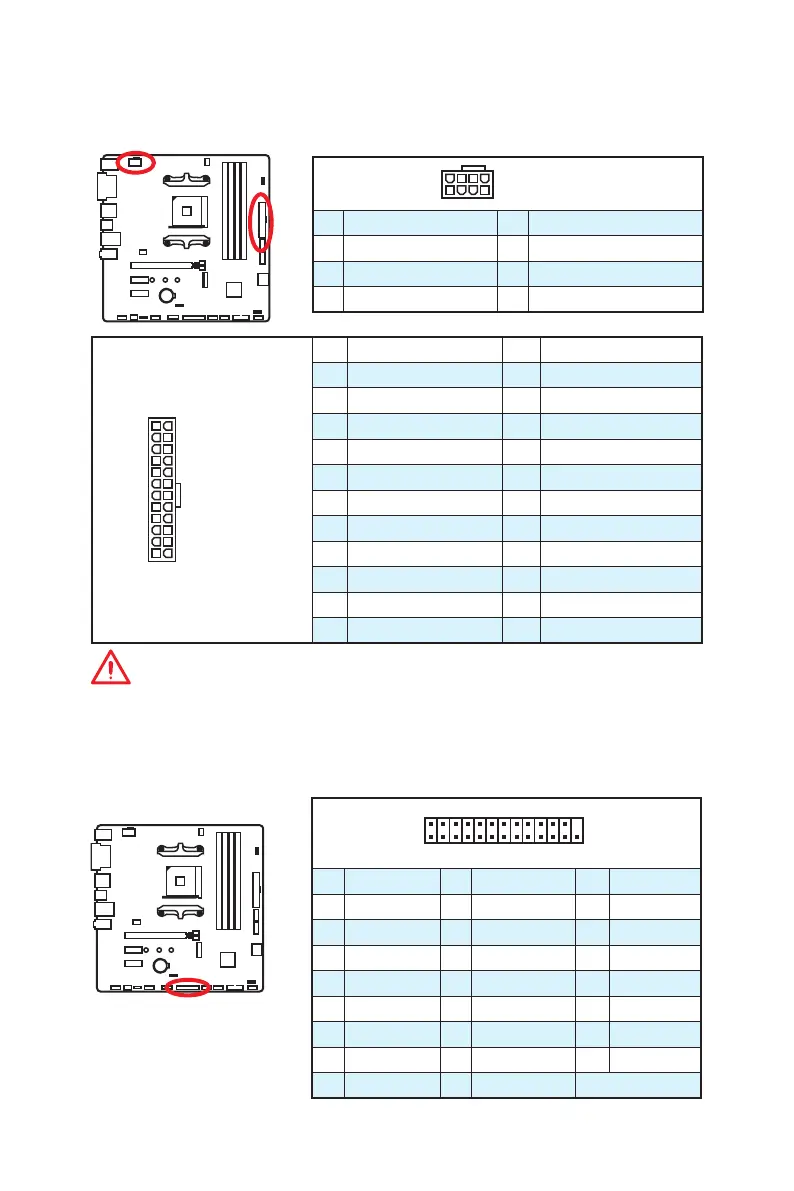

CPU_PWR1, ATX_PWR1: Power Connectors

These connectors allow you to connect an ATX power supply.

Important

Make sure that all the power cables are securely connected to a proper ATX power

supply to ensure stable operation of the motherboard.

2 26

1 RSTB# 2 AFD# 3 PRND0

4 ERR# 5 PRND1 6 PINIT#

7 PRND2 8 LPT_SLIN# 9 PRND3

10 Ground 11 PRND4 12 Ground

13 PRND5 14 Ground 15 PRND6

16 Ground 17 PRND7 18 Ground

19 ACK# 20 Ground 21 BUSY

22 Ground 23 PE 24 Ground

25 SLCT 26 No Pin

JLPT1: Parallel Port Connector

This connector allows you to connect the optional parallel port with bracket.
