MSI B350M BAZOOKA User Manual

27
Overview of Components
M2_1: M.2 Slot (Key M)
Video Demonstration
Watch the video to learn how to Install M.2
module.
http://youtu.be/JCTFABytrYA

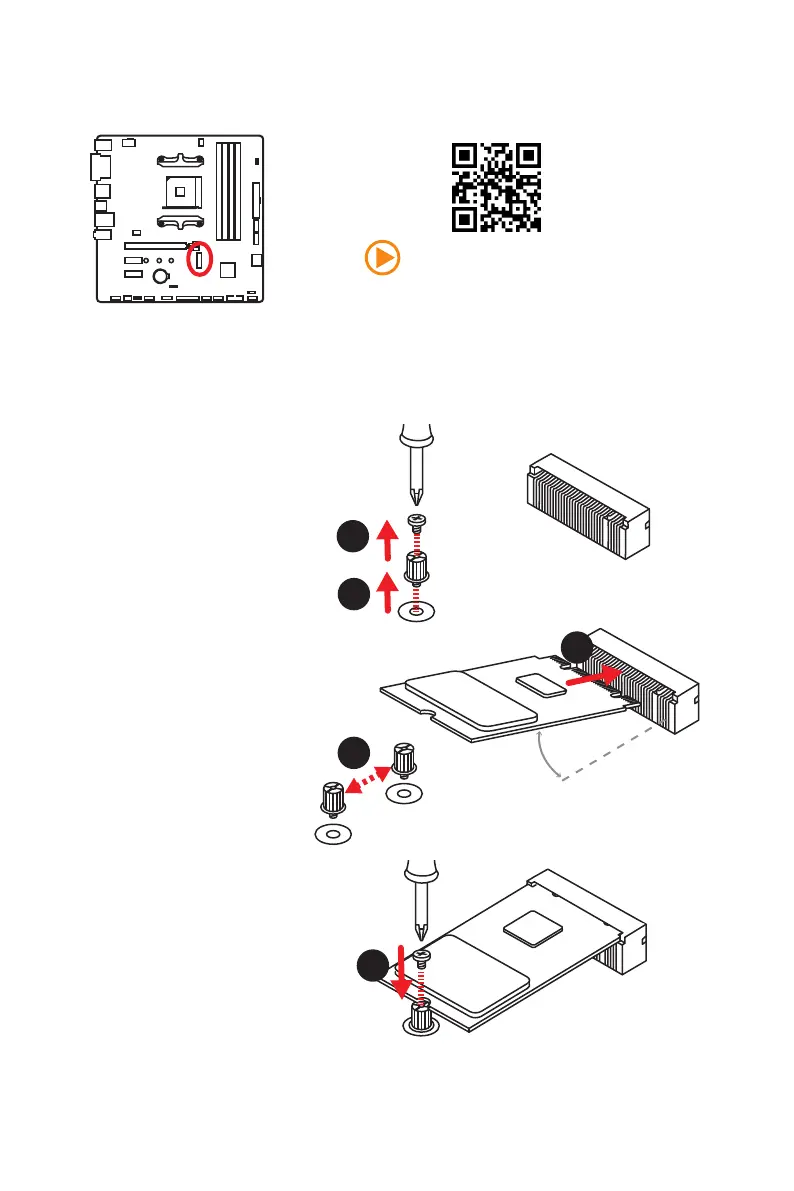

Installing M.2 module
1
2
3
30°
3. Tighten the base screw
into the hole of the
distance to the M.2 slot
as the length your M.2
module.
4. Insert your M.2 module
into the M.2 slot at a
30-degree angle.
5. Put the screw in the
notch on the trailing edge
of your M.2 module and
tighten it into the base
screw.
1. Remove the screw from
the base screw.
2. Remove the base screw.
4
5

MSI B350M BAZOOKA Specifications

General

Form Factor	Micro ATX
Chipset	AMD B350
Socket	AM4
Memory Slots	4
Maximum Memory	64 GB
LAN	Realtek 8111H Gigabit LAN
RAID Support	RAID 0, 1, 10
Memory Speed	DDR4 2667 / 2400 / 2133 MHz
PCIe Slots	1 x PCIe 3.0 x16
Storage Interface	1 x M.2
USB Ports	6 x USB 3.1 Gen1, 6 x USB 2.0
Audio	Realtek ALC892 Codec
Video Outputs	DVI-D, HDMI
