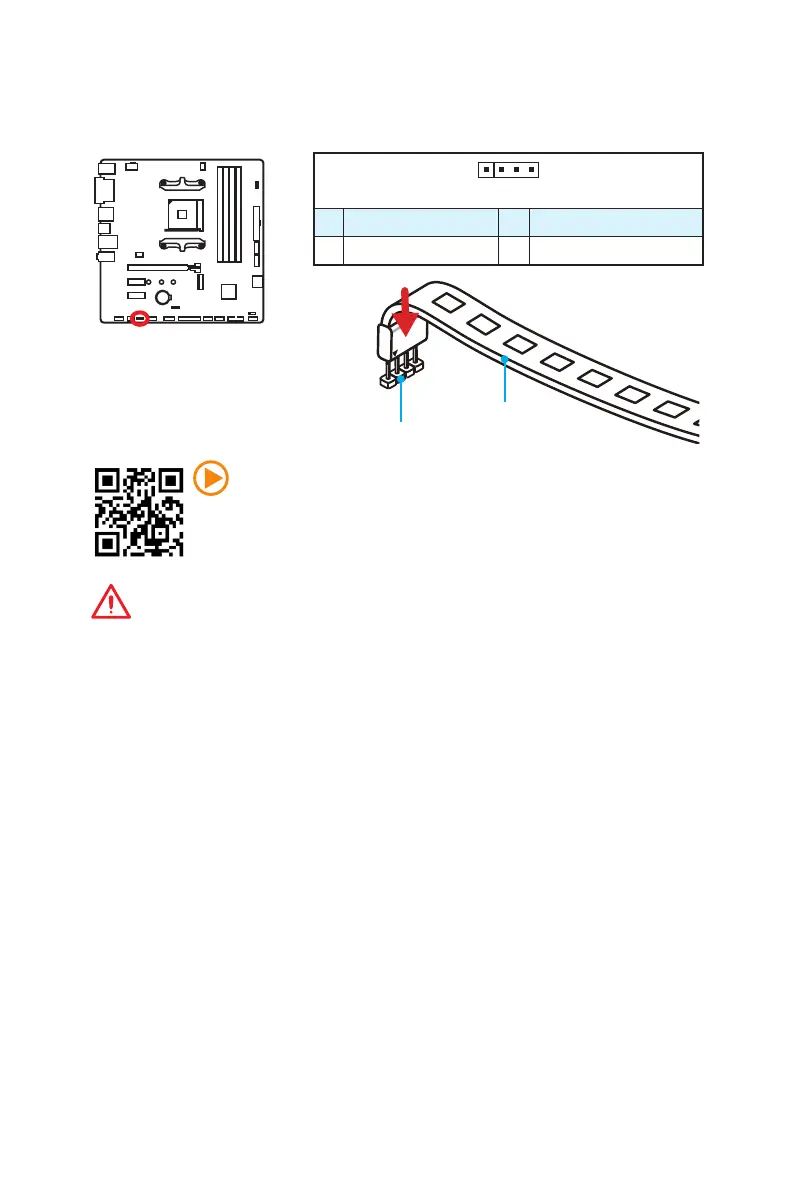

JLED1: RGB LED strip connector

This connector allows you to connect the extended 5050 RGB LED strips.

Important

This connector supports 5050 RGB multi-color LED strips (12V/G/R/B) with the

maximum power rating of 3A (12V). Please keeping the LED strip shorter than 2

meters to prevent dimming.

Always turn off the power supply and unplug the power cord from the power outlet

before installing or removing the RGB LED strip.

Please use GAMING APP to control the extended LED strip

1 +12V 2 G

3 R 4 B

Video Demonstration

Watch the video to learn how to install 5050 RGB LED strips to RGB LED

connector.

https://youtu.be/CqNHyADzd2Q

JLED1

5050 LED strip
