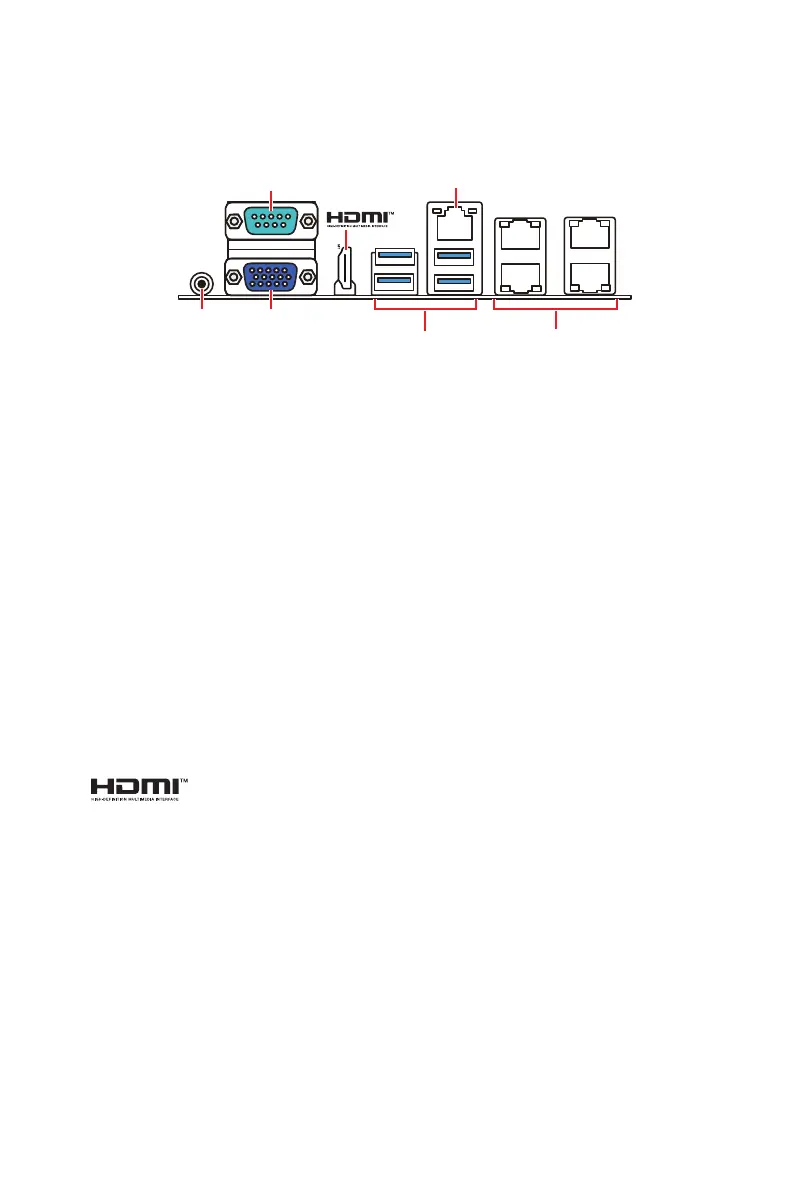

Rear I/O Panel
Rear I/O Panel
UID LED
Button
GbE RJ45 Port
(for mgmt.)
VGA Port
COM Port
GbE RJ45 Port
USB 3.2 Gen 1 Port
(USB 3.2 Gen 1/ 2.0)
UID LED Button
The UID (Unit Identification) button help users identify and locate a system, especially
in high-density rack environments.
COM Port
A COM port, also called a serial port or DB9 connector, is a communication interface
for transferring data between a computer and external devices such as barcode
scanners, printers, and credit card machines. It’s commonly used for initial system
configuration and diagnostics on server boards and for connecting legacy devices
that lack modern interfaces. Users can connect a specially configured serial cable to
establish a serial connection.
VGA Port
The DB15-pin female connector is provided for monitors.
Connector
The High-Definition Multimedia Interface (HDMI™) is an all-digital audio/ video
interface capable of transmitting uncompressed streams. HDMI™ supports all TV
format, including standard, enhanced, or high-definition video, plus multi-channel
digital audio on a single cable.
USB 3.2 Gen 1 Port (USB 3.2 Gen 1/ USB 2.0)
The USB (Universal Serial Bus) port is for attaching USB devices such as keyboards,
mouse, or other USB-compatible devices. USB 3.2 Gen 1 supports data transfer
rates up to 5 Gbit/s (SuperSpeed), while USB 2.0 supports data transfer rates up to
480Mbit/s (Hi-Speed).
To Next Page
