20

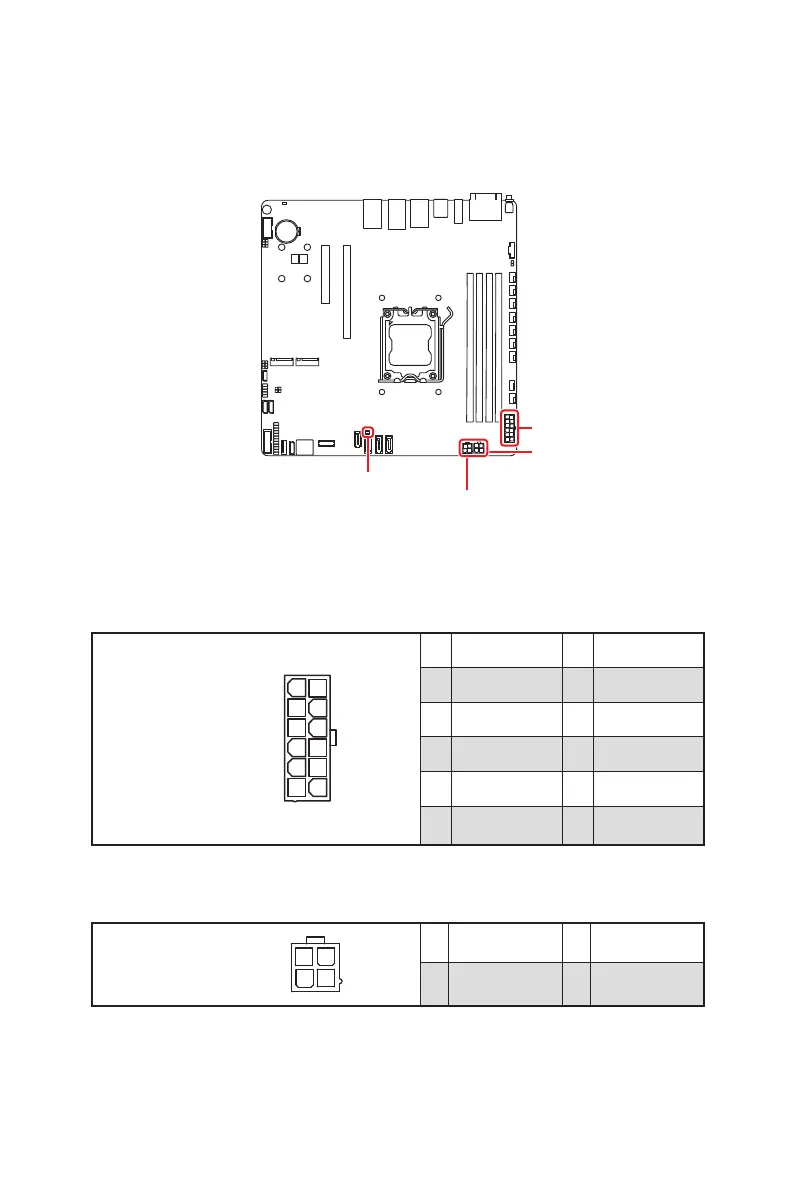

Connectors
Connectors
Power Connectors
JATX12V1
JSDOMPWR1
SATAPWR1
ATX4PIN1
JATX12V1: 12PIN ATX Power Connector
This connector allows you to connect an ATX power supply.
12
7
1
6
JATX12V1
1
+12V_bp-1
7
GND-1
2
+12V_bp-2
8
GND-2
3
+12V_bp-3
9
GND-3
4
+12V_bp-4
10
GND-4
5
+12V_bp-4
11
GND-5
6
+12v_bp-6
12
GND-6
ATX4PIN1: 4PIN ATX Power Connector
This connector is used to provide power to ATX power supply.
ATX4PIN1
3
4
2
1
1
atx_pwrok
2
GND
3
+5vsb_bp
4
fm_ps_on_n
19
