MSI D3050 User Manual

25
Connectors

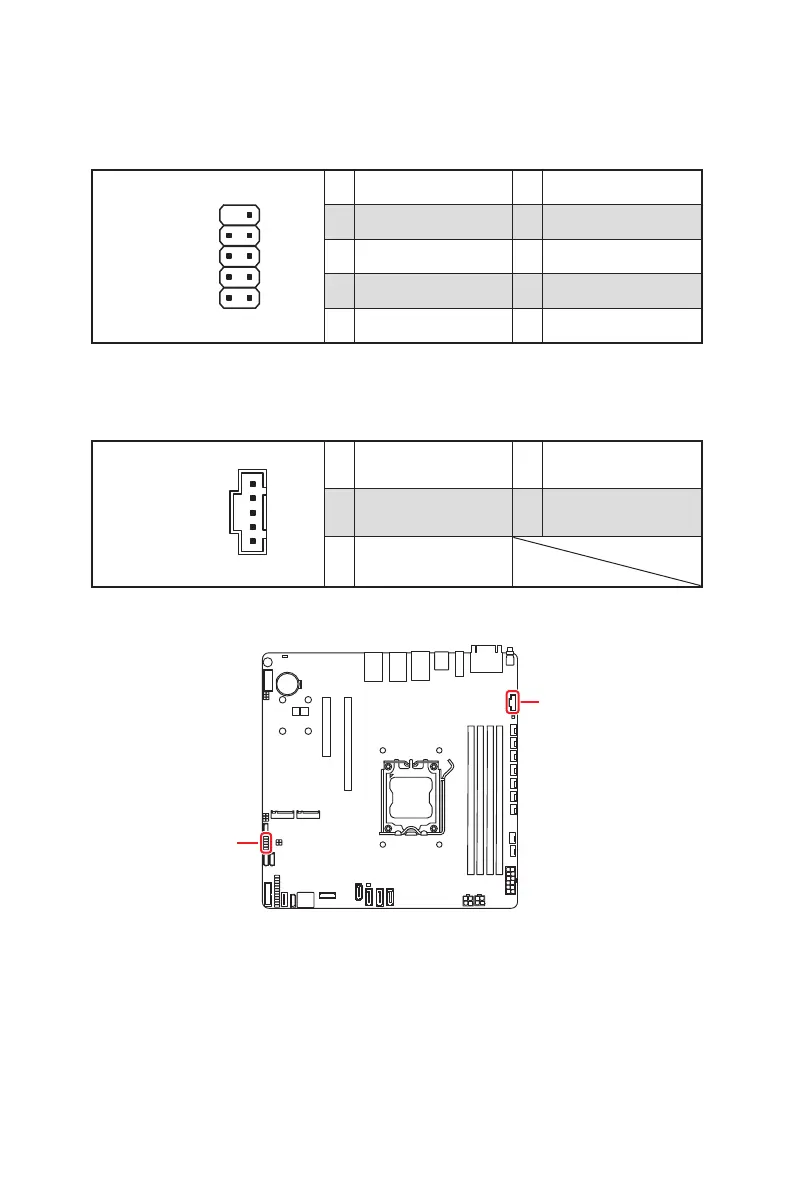

JGPIO1: GPIO Header
This connector is provided for the General-Purpose Input/Output (GPIO) peripheral
module.
JGPIO1
1
9
2
1 USER_GPIO0 2 USER_GPIO1
3 USER_GPIO2 4 USER_GPIO3
5 USER_GPIO4 6 USER_GPIO5
7 USER_GPIO6 8 USER_GPIO7
9 GND 10 No pin
JPMBUS1: PMBUS Box Header
Power Management Bus (PMBus) is a variant of the System Management Bus (SMBus)
which is targeted at digital management of power supplies.
1
5
JPMBUS1
1
JPMBUS1_LVC3_SCL
2
JPMBUS1_LVC3_SDA
3
SMB_PMBUS_ALERT_N
4
GND
5
P3V3_AUX
JGPIO1
JPMBUS1
