29

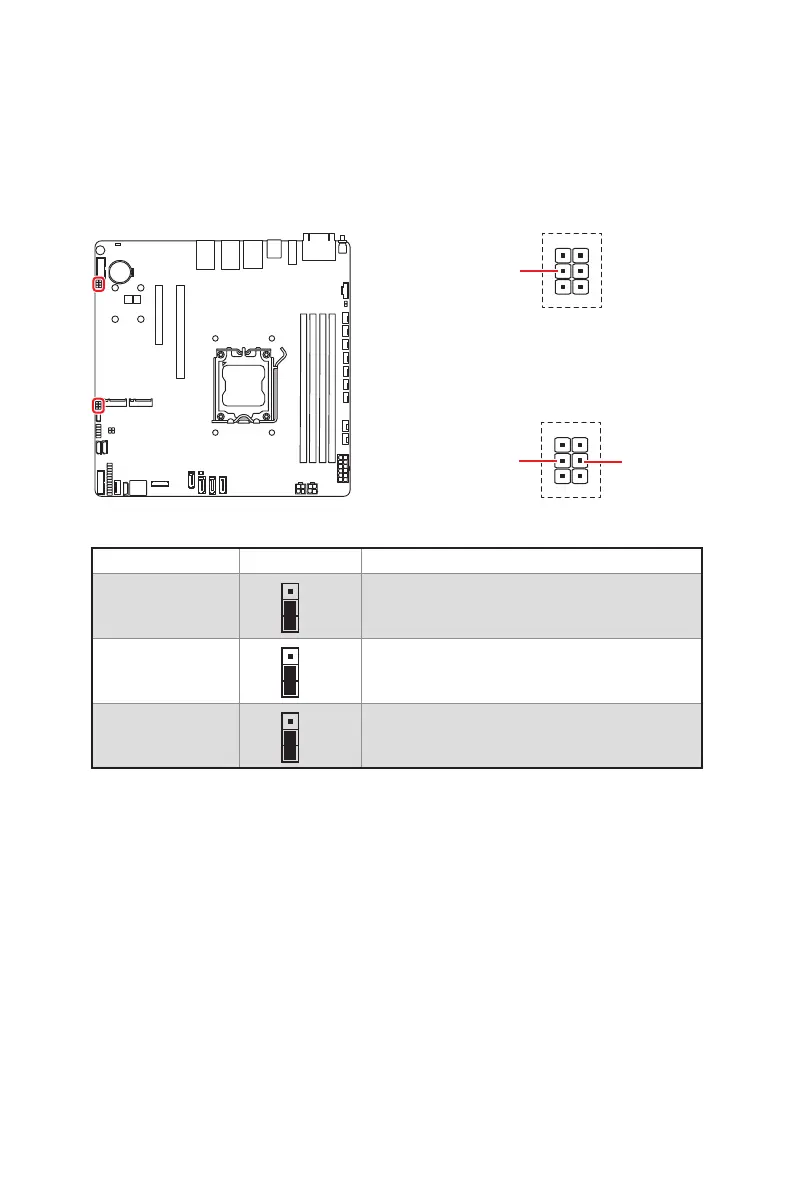

Jumpers
Jumpers
⚠
Important
Avoid adjusting jumpers when the system is on; it will damage the motherboard.
JSEL_BMC1
JSEL_M2
JRTC_CLR1
Jumper Name
Default Setting
Description
JRTC_CLR1
1
1-2: Normal (Default)
2-3: CMOS Clear
JSEL_M2
1
1-2: M.2_2 enabled, PCIE_2 disabled (Default)
2-3: PCIE_2 enabled, M.2_2 disabled
JSEL_BMC1
1
1-2: Using CPU (Default)
2-3: Using BMC
28
30
Table of Contents
Table of Contents
2
Regulatory Notices
4
Safety Information
6
Specifications
7
Overview of Components
9
Rear I/O Panel
10
UID LED Button
10
COM Port
10
VGA Port
10
Connector
10
USB 3.2 Gen 1 Port (USB 3.2 Gen 1/ USB 2.0)
10
Gbe RJ45 Port (for Mgmt.)
11
Gbe RJ45 Port
11
CPU Socket
13
Introduction to the AM5 CPU
13
CPU & Heatsink Installation
14
Memory
15
DIMMA1~2, DIMMB1~2: DDR5 DIMM Slots
15
Recommended Memory Population
15
Installing Memory Modules
16
Storage
17
SATA5_6, SATA1~4: SATA 3.0 6Gb/S Ports
17
M2_1~2: M.2 Slots (M Key, Pcie 4.0, 22110/ 2280)
18
Installing M.2 SSD
18
Expansion Slots
19
PCIE_1~2: Pcie Expansion Slots
19
Connectors
20
Power Connectors
20
JATX12V1: 12PIN ATX Power Connector
20
ATX4PIN1: 4PIN ATX Power Connector
20
SATAPWR1: SATA Power Connector
21
JSDOMPWR1: SATA DOM Power Connector
21
Cooling Connectors
22
FAN1~8, PUMP1: Fan Power Connectors
22
Other Connectors
23
JFP1: Front Panel Connector
23
JTPM1: SPI TPM Module Box Header
24
JGPIO1: GPIO Header
25
JPMBUS1: PMBUS Box Header
25
JCHASSIS: Chassis Intrusion Header
26
JIPMB1: IPMB Box Header
26
JUSB1: USB 3.2 Port Box Header
27
JUSB2: USB 3.2 Gen 1 Type-A Connector (USB 3.2 Gen 1/ USB 2.0)
27
FP_I2C_1, RBP_I2C_1~2: I2C Box Headers
28
JCOM1: COM Port Box Header
28
Jumpers
29
Onboard Leds
30
BMC_LED1: BMC Heartbeat LED
30
LED_H1, LED_L1: Port 80 Debug Leds
30
