MSI D3050 User Manual

23
Connectors
Other Connectors

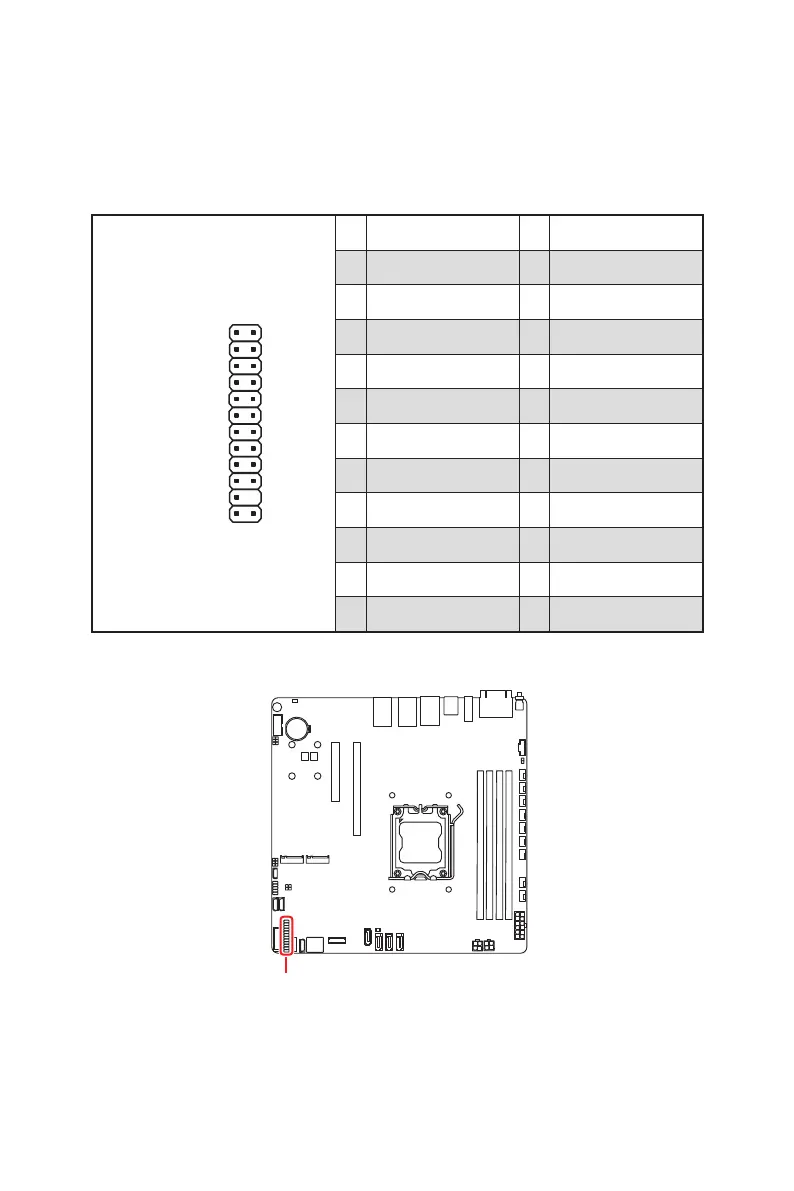

JFP1: Front Panel Connector
The front panel connector is provided for electrical connection to the front panel
switches and LEDs.
JFP1
12
2324
1
PWR_LED+
2
FP_PWR
3
No pin
4
SYS_ID_LED+
5 PWR_LED- 6 SYS_ID_LED-
7 HDD_ACT_LED+ 8 SYS_FAULT_LED1-
9 HDD_ACT_LED- 10 SYS_FAULT_LED2-
11 PWR_BTN 12 NIC#1_ACT_LED+
13 PWR_BTN_GND 14 NIC#1_ACT_LED-
15 RST_BTN 16 SMB_SDA
17 RST_BTN_GND 18 SMB_SCL
19 SYS_ID_BTN 20 CHASSIS_INTRUSION
21 WIRE_TEMP_SENSOR 22 NIC#2_ACT_LED+
23 NMI_BTN 24 NIC#2_ACT_LED-
JFP1
