MSI H110M PRO-D User Manual


󱍳󱄦󴁭󴯭
󰑲󲞷󵭨
󲶔󲗕󵩝󳝘󲟬󵉓󲗕󱑽󵦒󲦯󳢴󵉓󲗕󱨐󰆎
1
10 11
20

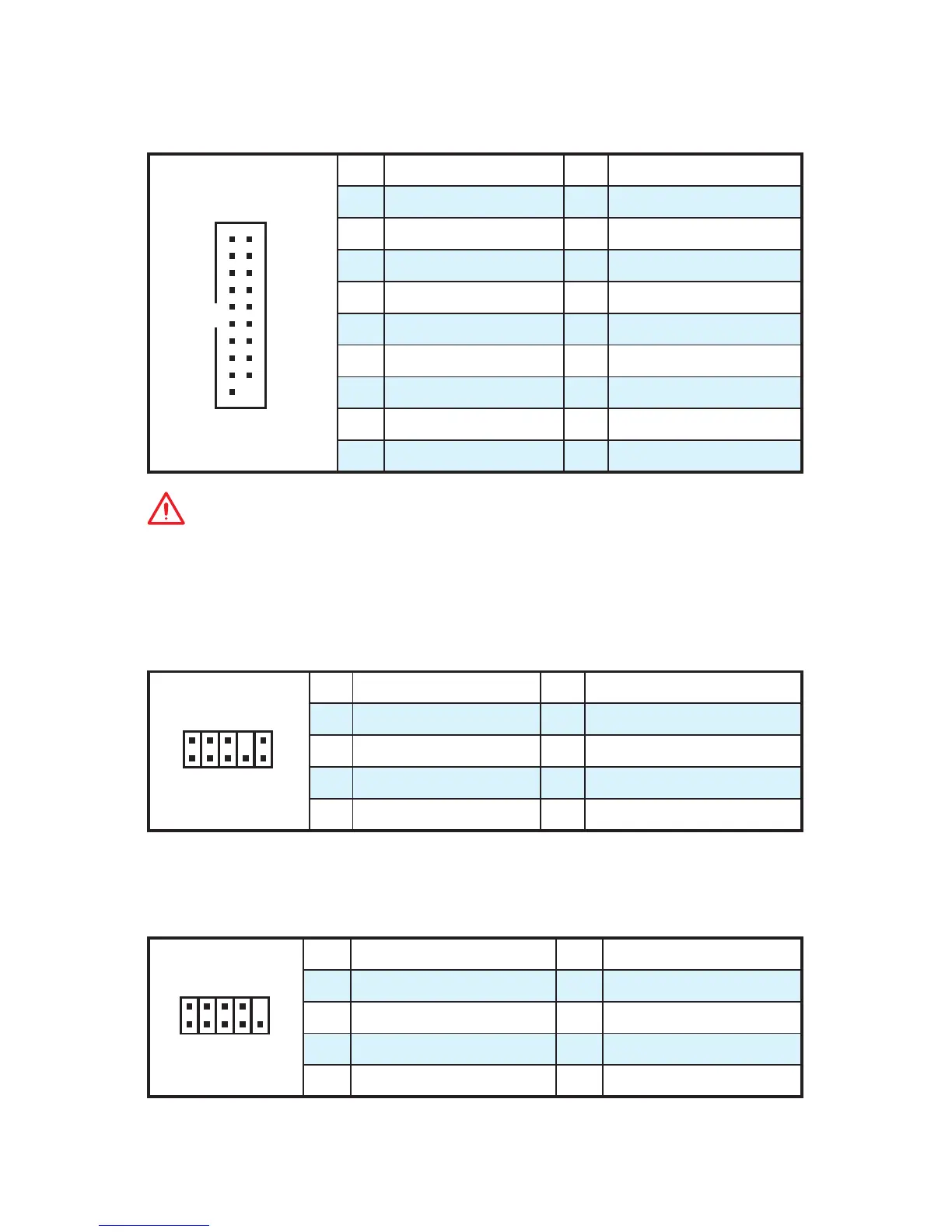

1 Power 11 USB2.0+
2 USB3_RX_DN 12 USB2.0-
3 USB3_RX_DP 13 Ground
4 Ground 14 USB3_TX_C_DP
5 USB3_TX_C_DN 15 USB3_TX_C_DN
6 USB3_TX_C_DP 16 Ground
7 Ground 17 USB3_RX_DP
8 USB2.0- 18 USB3_RX_DN
9 USB2.0+ 19 Power
10 Ground 20 No Pin
󵔕󴳛
󴳻󲼘󲌿󰦉󵤫󳃀󱚼󲗕󱥠󵐍󴎣󲇵󵨸󲶓󳫪󵉓󲗕󰦉󱄕󱍽󵉐󲑀󳽴󱄦󱘇󲘽󰆎
󰑲󱚒󴋯󵬯󲥓󲟤󱾁
󲥜󲘂󱶄󴌭󵉓󲗕󱑽󵦒󲦯󳢴󵨣󴰺󲘂󱶄󰆎
1
2 10
9
1 MIC L 2 Ground
3 MIC R 4 NC
5 Head Phone R 6 MIC Detection
7 SENSE_SEND 8 No Pin
9 Head Phone L 10 Head Phone Detection
    󰑲󲊮 󱙜 󱰙 󲞷 󵭨
󲋘󱘟󱑙󳝘󲶔󲗕󵩝󵉓󲗕󱙛󲝟󲧦󳢴󵊨󳝘󲂿󱑇󱨐󰆎
1
2 10
9
1 DCD 2 SIN
3 SOUT 4 DTR
5 Ground 6 DSR
7 RTS 8 CTS
9 RI 10 No Pin

MSI H110M PRO-D Specifications

General

Form Factor	Micro ATX
Chipset	Intel H110
Socket	LGA 1151
Memory Slots	2 x DIMM
Maximum Memory	32 GB
Memory Speed	2133 MHz
PCIe Slots	1 x PCIe 3.0 x16, 2 x PCIe 2.0 x1
Storage Interface	4 x SATA 6Gb/s
Video Outputs	1 x DVI-D, 1 x VGA
USB Ports	4 x USB 3.1 Gen1, 6 x USB 2.0
Audio	Realtek ALC887
LAN	Realtek RTL8111H Gigabit LAN
