MSI H110M PRO-D User Manual

11




24
131
12

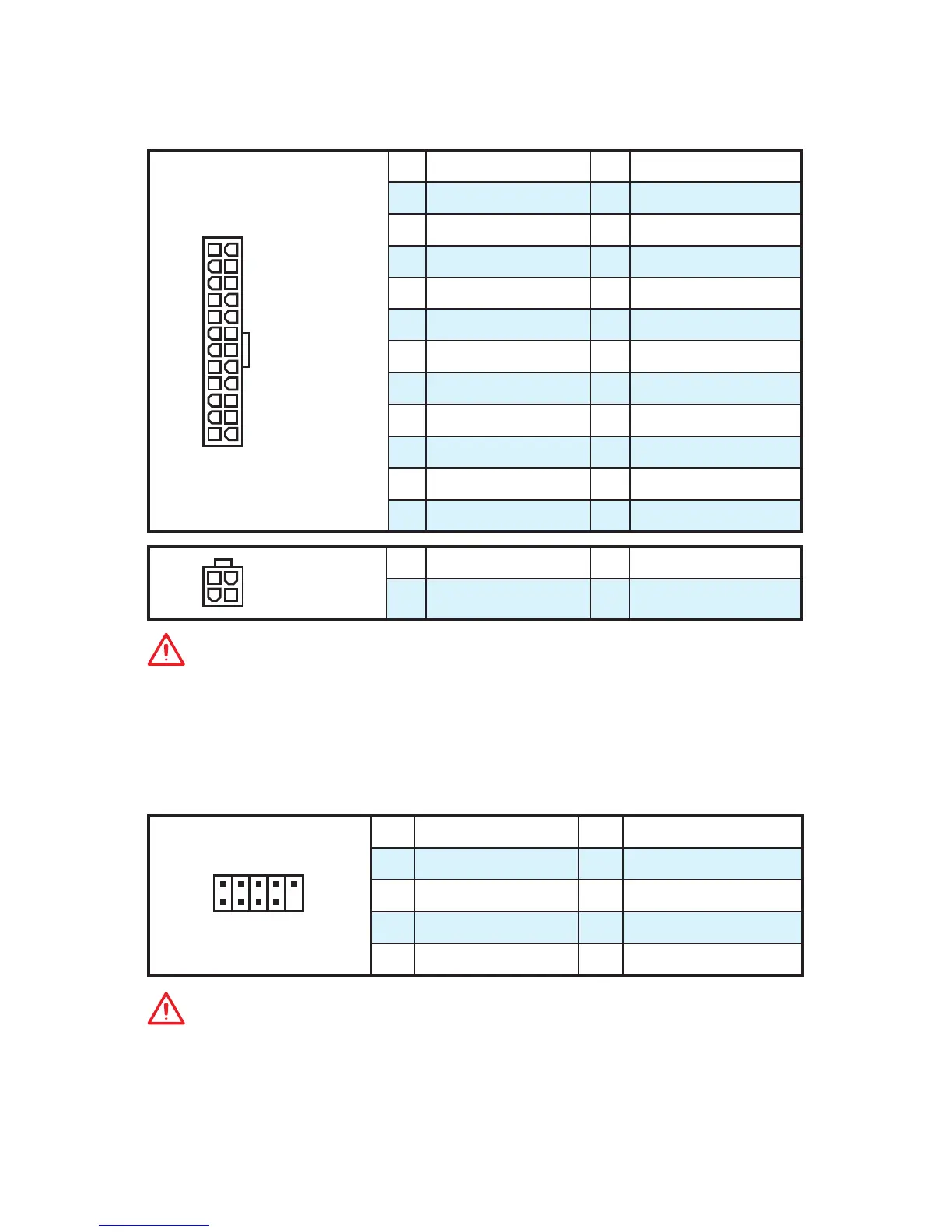

JPWR1
1 +3.3V 13 +3.3V
2 +3.3V 14 -12V
3 Ground 15 Ground
4 +5V 16 PS-ON#
5 Ground 17 Ground
6 +5V 18 Ground
7 Ground 19 Ground
8 PWR OK 20 Res
9 5VSB 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 +3.3V 24 Ground
3
2 1
4
JPWR2
1 Ground 3 +12V
2 Ground 4 +12V






1
2 10
9
1 VCC 2 VCC
3 USB0- 4 USB1-
5 USB0+ 6 USB1+
7 Ground 8 Ground
9 No Pin 10 NC

󰁡 

󰁡 

®
SUPER CHARGER.

MSI H110M PRO-D Specifications

General

Form Factor	Micro ATX
Chipset	Intel H110
Socket	LGA 1151
Memory Slots	2 x DIMM
Maximum Memory	32 GB
Memory Speed	2133 MHz
PCIe Slots	1 x PCIe 3.0 x16, 2 x PCIe 2.0 x1
Storage Interface	4 x SATA 6Gb/s
Video Outputs	1 x DVI-D, 1 x VGA
USB Ports	4 x USB 3.1 Gen1, 6 x USB 2.0
Audio	Realtek ALC887
LAN	Realtek RTL8111H Gigabit LAN
