MSI H110M PRO-D User Manual

6



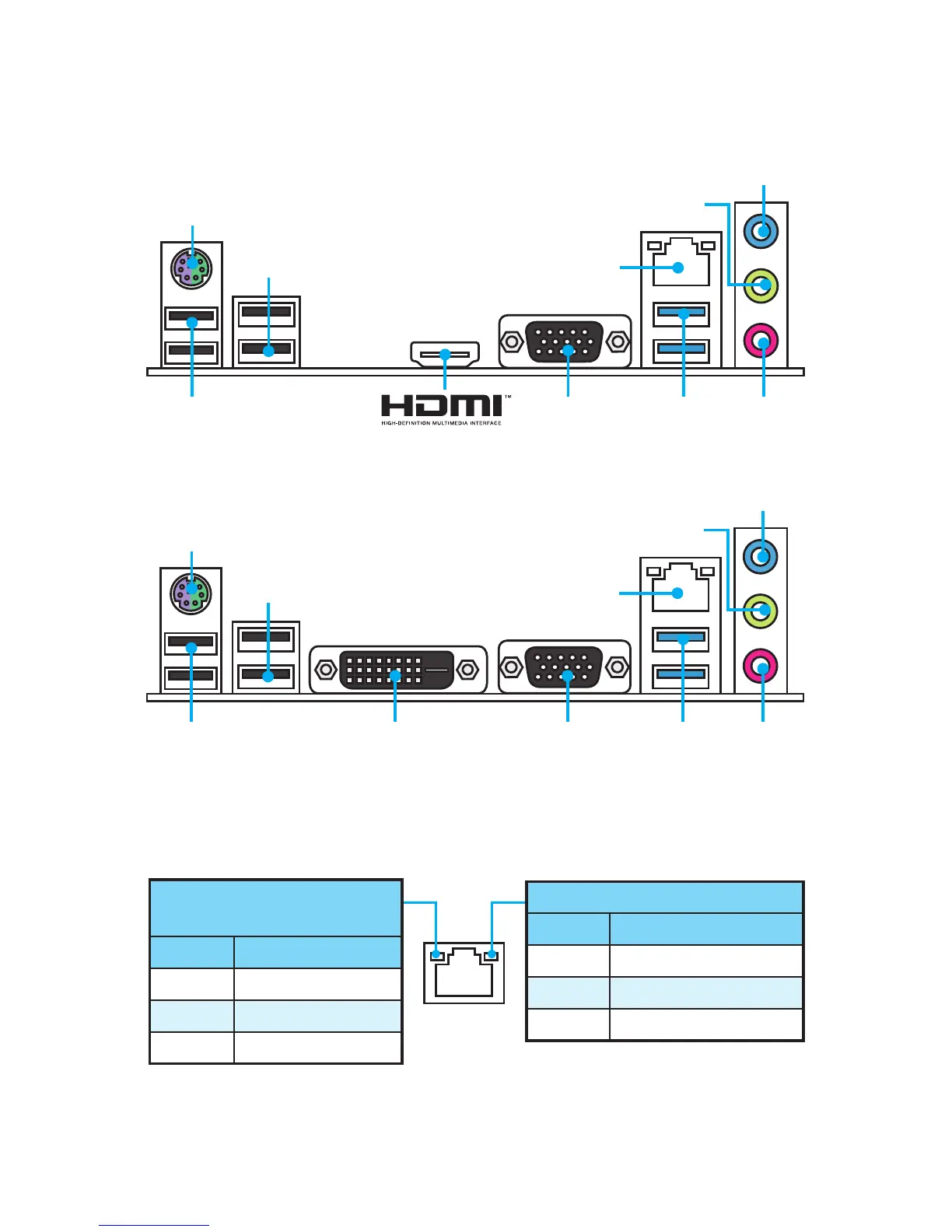

LED indiquant la connexion
et l’activité
Etat Description
Eteint Pas de connexion
Jaune Connexion correcte
Clignote Activité en cours
LED indiquant la vitesse
Etat Description
Eteint Débit de 10 Mbps
Vert Débit de 100 Mbps
Orange Débit de 1 Gbps

PS/2
LAN
USB 2.0
USB 3.1 Gen1
VGAUSB 2.0

Ligne-in
Ligne-out
Mic in
PS/2
LAN
USB 2.0
USB 3.1 Gen1
USB 2.0

Ligne-in
Ligne-out
Mic in
DVI-D
VGA
(H110M PRO-VD)

MSI H110M PRO-D Specifications

General

Form Factor	Micro ATX
Chipset	Intel H110
Socket	LGA 1151
Memory Slots	2 x DIMM
Maximum Memory	32 GB
Memory Speed	2133 MHz
PCIe Slots	1 x PCIe 3.0 x16, 2 x PCIe 2.0 x1
Storage Interface	4 x SATA 6Gb/s
Video Outputs	1 x DVI-D, 1 x VGA
USB Ports	4 x USB 3.1 Gen1, 6 x USB 2.0
Audio	Realtek ALC887
LAN	Realtek RTL8111H Gigabit LAN
