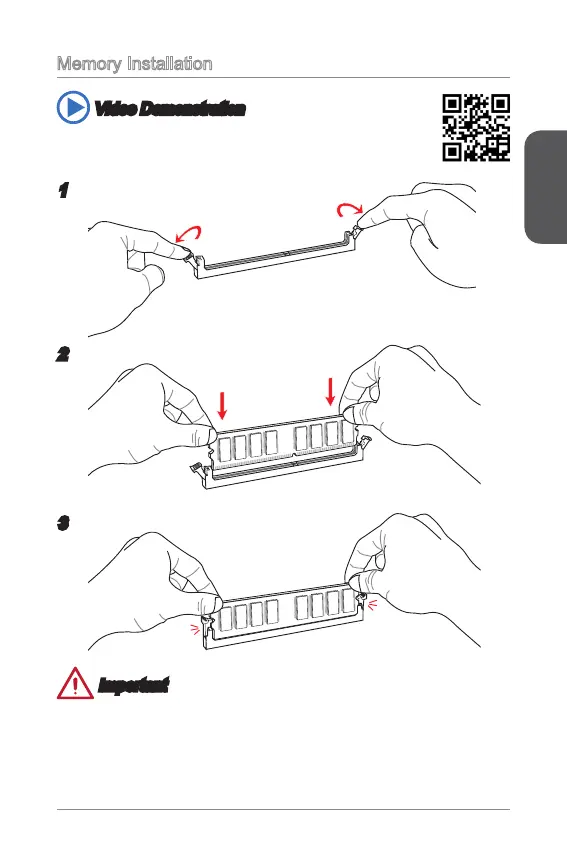

Memory Installation
Video Demonstration
Watch the video to learn how to install memories at the address below.
http://youtu.be/76yLtJaKlCQ

2
3
Important
DDR3 memory modules are not interchangeable with DDR2, and the DDR3
standard is not backward compatible. Always install DDR3 memory modules in
DDR3 DIMM slots.
To ensure system stability, memory modules must be of the same type and density
in Dual-Channel mode.
•
•

MSI H81M-E34 Series Specifications

General

Form Factor	Micro ATX
Chipset	Intel H81
Socket	LGA 1150
Memory Slots	2 x DIMM
Maximum Memory	16GB
Storage Interface	2 x SATA 6Gb/s, 2 x SATA 3Gb/s
Memory Standard	DDR3 1600/1333 MHz
Expansion Slots	1 x PCIe 2.0 x16, 2 x PCIe 2.0 x1
USB Ports (Rear)	2 x USB 3.0, 2 x USB 2.0
USB Ports (Front)	2 x USB 2.0
Audio	Realtek ALC887
LAN	Realtek RTL8111G
Video Outputs	1 x HDMI, 1 x VGA
