DIMM Module Combination
Install at least one DIMM module on the slots. You can install either
single- or double-sided modules in any order to meet your own needs.
Memory modules can be installed in any combination as follows:

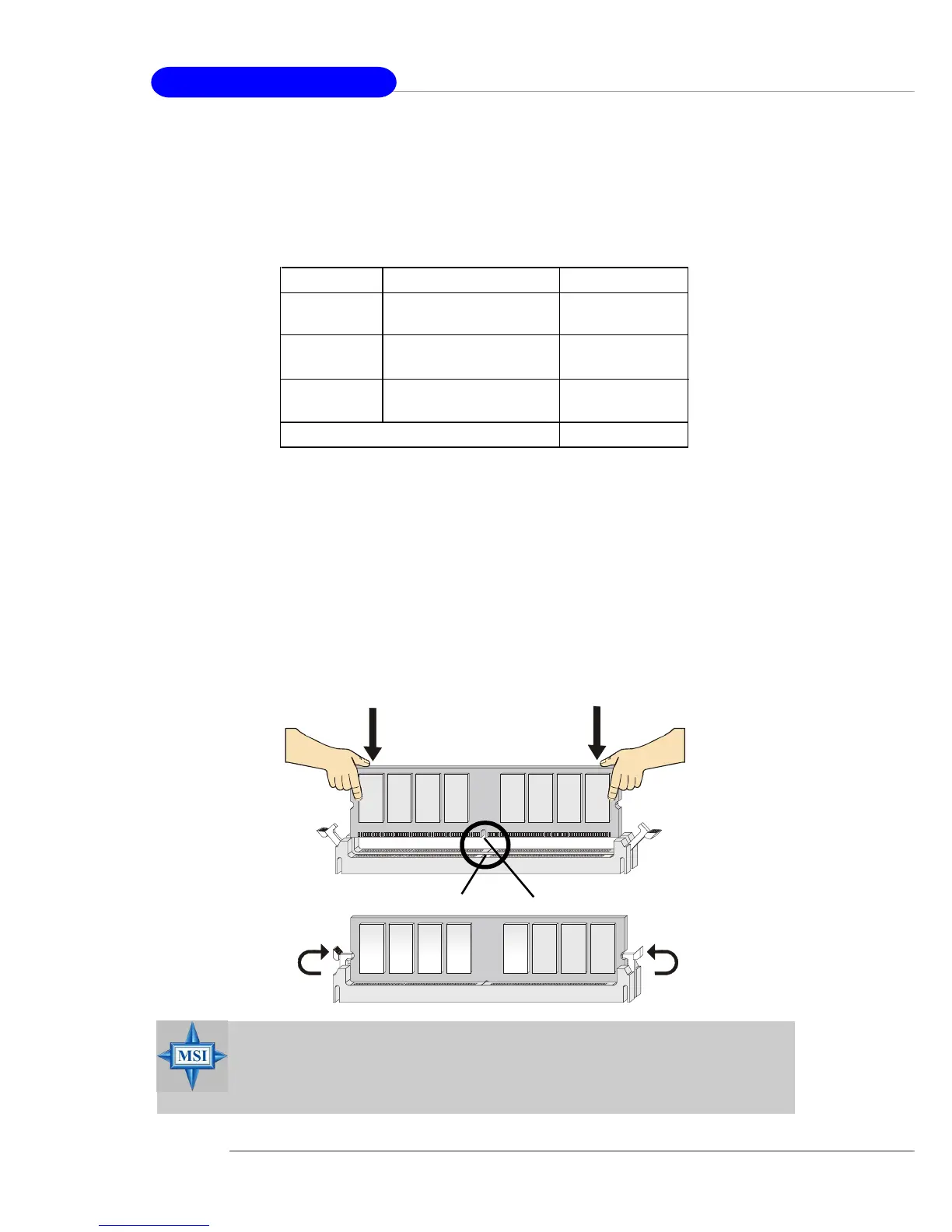

Installing DDR Modules
1. The DDR DIMM has only one notch on the center of module. The mod-
ule will only fit in the right orientation.
2. Insert the DIMM memory module vertically into the DIMM slot. Then
push it in until the golden finger on the memory module is deeply in-
serted in the socket.
3. The plastic clip at each side of the DIMM slot will automatically close.
MSI Reminds You...
You can barely see the golden finger if the module is properly
inserted in the socket.
Volt
Notch
S: Single Side D: Double Side
Slot Memory Module Total Memory
DIMM 1 S/D 64MB~1GB
(Bank 0 & 1)
DIMM 2 S/D 64MB~1GB
(Bank 2 & 3)
DIMM 3 S/D 64MB~1GB
(Bank 4 & 5)
Maximum System Memory Suppported 64MB~3GB
