2-20
MS-6712 ATX Mainboard

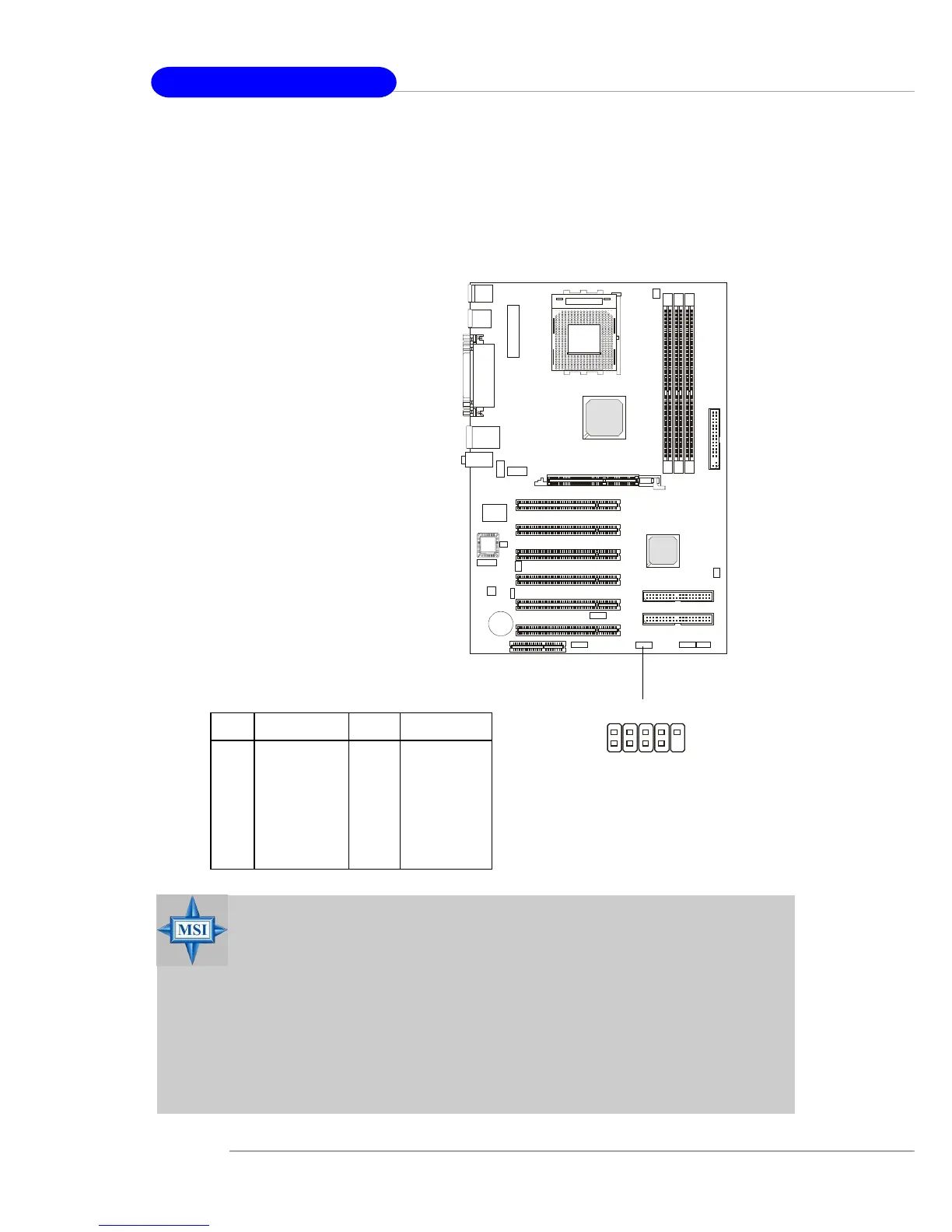

Front USB Connector: JUSB1
The mainboard provides one USB 2.0 pinheader. The JUSB1 is compli-
ant with Intel
®
I/O Connectivity Design Guide.
Pin Description Pin Description
1 VCC 2 VCC
3 USB0- 4 USB1-
5 USB0+ 6 USB1+
7 GND 8 GND
9 Key 10 USBOC
JUSB1 Pin Definition
MSI Reminds You...
The USB 2.0 technology is downward compatible with USB 1.1
spec. To use the USB 2.0 ports, you have to install the USB 2.0
driver, which is supplied by Microsoft for Windows
®
2000 and
XP. If you have any problems regarding the USB 2.0 driver,
please visit the Microsoft Web site for more information.
For details on the bluetooth settings, please refer to PC2PC
Bluetooth Manual.
1
9
2 10
JUSB1
(USB 1.1/Intel spec)
