3-27
BIOS Setup

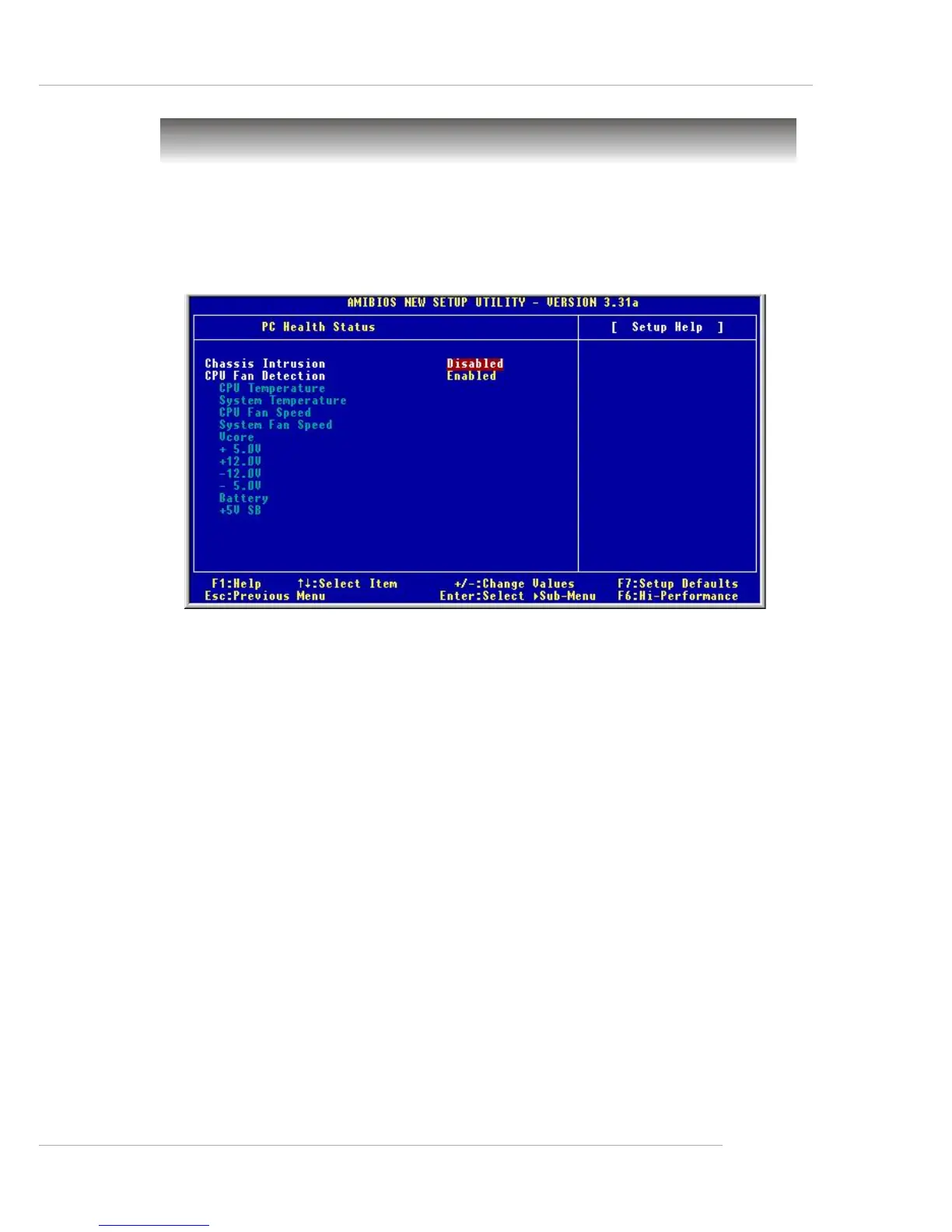

PC Health Status
This section shows the status of your CPU, fan, overall system status, etc.
Monitor function is available only if there is hardware monitoring mechanism
onboard.
Chassis Intrusion
The field enables or disables the feature of recording the chassis intrusion
status and issuing a warning message if the chassis is once opened. To clear
the warning message, set the field to Reset. The setting of the field will auto-
matically return to Enabled later. Settings: Enabled, Reset, Disabled.
CPU Fan Detection
When enabled, the system will automatically monitor the CPU fan during
boot-up. If it detects that the CPU fan is not rotating, the system will show an
error message on the screen and halt the boot-up process. The function is
built with CPU fan power connector (CFAN1) only and enables you to
protect the CPU form possible overheating problem. If you don’t connect the
CPU fan to the CPU fan power connector, we recommend that you disable the
feature. Settings: Enabled, Disabled.
CPU/System Temperature, CPU/System Fan Speed, Vcore, +5.0V,
+12.0V, -12.0V, -5.0V, Battery, +5V SB
These items display the current status of all of the monitored hardware de-
vices/components such as CPU voltages, temperatures and all fans’ speeds.
