MS-6712 ATX Mainboard
Using the Back Panel only
In addition to a default 2-channel analog audio output function, the au-
dio connectors on the Back Panel also provide 4- or 6-channel analog audio
output function if a proper setting is made in the software utility.
Read the following steps to have the Multi-Channel Audio Function
properly set in the software utility, and have your speakers correctly con-
nected to the Back Panel.
Configuration in the Software Utility

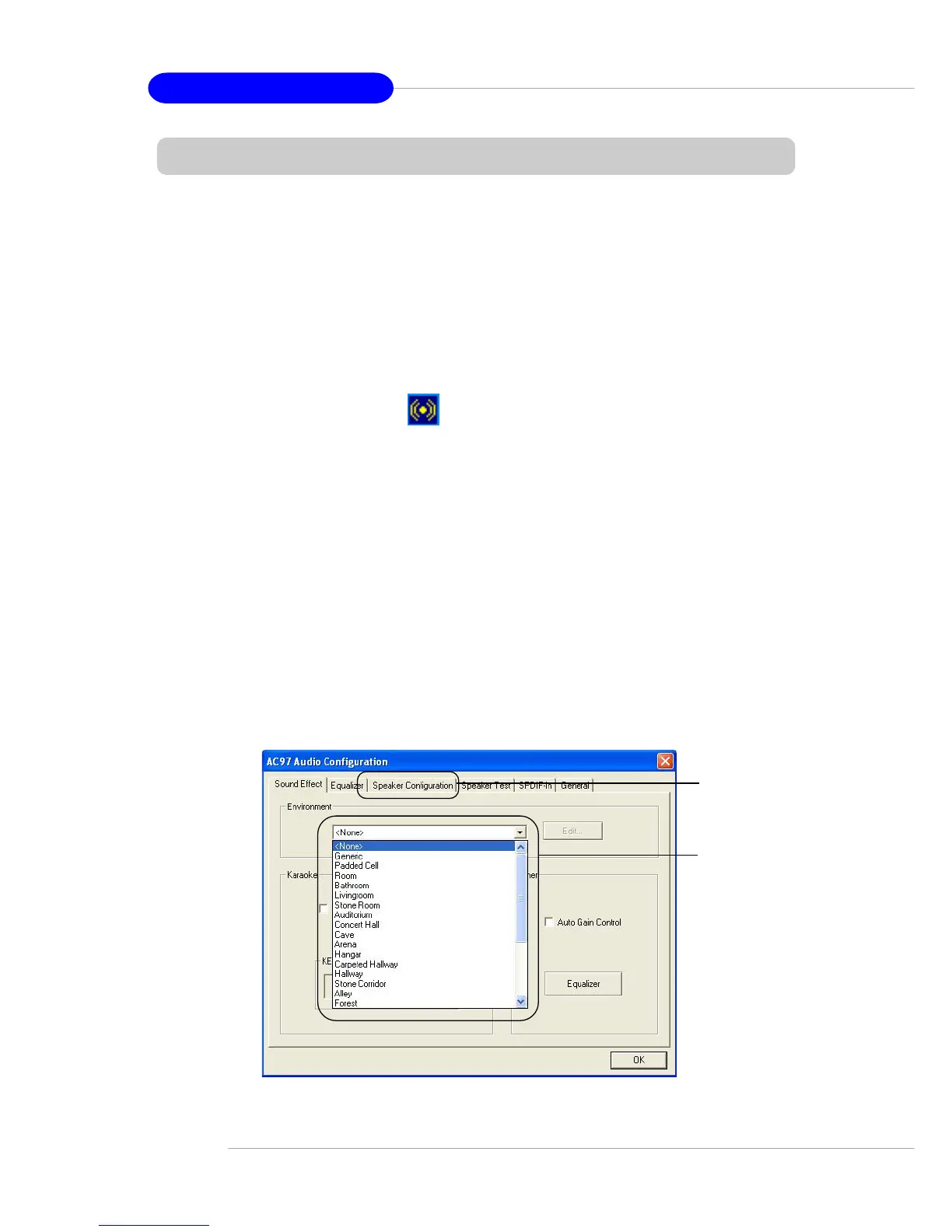

1. Click the audio icon from the window tray at the lower-right
corner of the screen.
2. Select a desired surround sound effect from the “Environment”
drop-down menu.
3. Click the Speaker Configuration tab.
4. Select Synchronize the phonejack switch with the settings.
5. Select a desired multi-channel operation from No. of Speakers.
a. 2-Channel Mode for Stereo-Speaker Output
b. 4-Channel Mode for 4-Speaker Output
c. 6-Channels Mode for 5.1-Speaker Output
6. Click OK to close this window.
