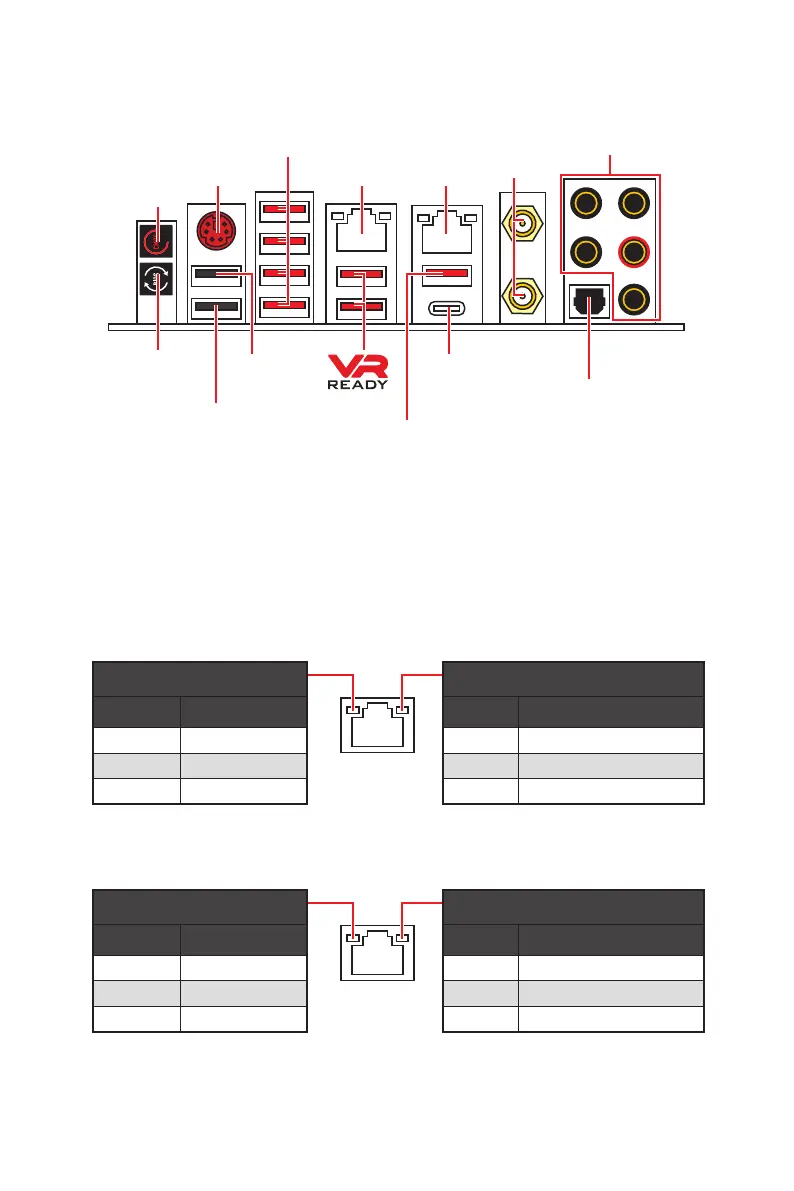

Rear I/O Panel
Rear I/O Panel
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 1 Gbps/ 100 Mbps connection
Orange 2.5 Gbps connection
Speed LED
Status Description
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
2.5G LAN Port LED Status Table
1G LAN Port LED Status Table
y Clear CMOS button - Power off your computer. Press and hold the Clear CMOS
button for about 5-10 seconds to reset BIOS to default values.
y Flash BIOS Button/Port - Please refer to page 74 for Updating BIOS with Flash BIOS
Button.
PS/2
Clear CMOS
Flash BIOS
button
USB 2.0
2.5G LAN 1G LAN
WiFi
antenna
connectors
Audio Ports
Optical S/PDIF-Out
USB 3.1 Gen1
USB 3.1 Gen1
USB 3.1 Gen2 Type-A
USB 3.1 Gen2 Type-C
USB 2.0/
Flash BIOS port
