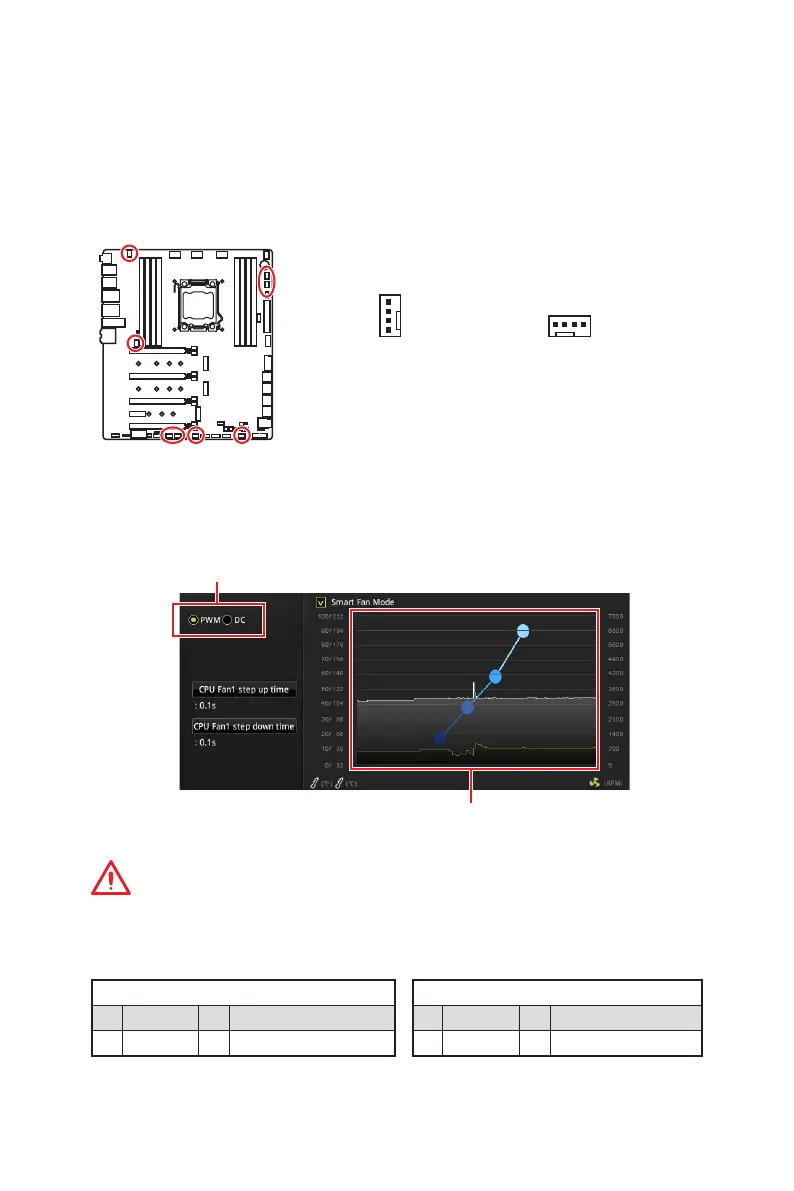

Overview of Components
Switching fan mode and adjusting fan speed
You can switch between PWM mode and DC mode and adjust fan speed in BIOS >
HARDWARE MONITOR.
Select PWM mode or DC mode
Important
Make sure fans are working properly after switching the PWM/ DC mode.
There are gradient points of the fan speed that allow you to adjust
fan speed in relation to CPU temperature.
PWM Mode pin definition
1 Ground 2 +12V
3 Sense 4 Speed Control Signal
DC Mode pin definition
1 Ground 2 Voltage Control
3 Sense 4 NC
Pin definition of fan connectors
CPU_FAN1, PUMP_FAN1, SYS_FAN1~4, EXS_FAN1~2: Fan
Connectors
Fan connectors can be classified as PWM (Pulse Width Modulation) Mode or DC Mode.
PWM Mode fan connectors provide constant 12V output and adjust fan speed with
speed control signal. DC Mode fan connectors control fan speed by changing voltage.
This motherboard can automatically detect PWM and DC mode. However, you can
follow the instruction below to adjust the fan connector to PWM or DC Mode manually.
1
CPU_FAN1/
PUMP_FAN1/
SYS_FAN1/ SYS_FAN4
SYS_FAN2/ SYS_FAN3
EXS_FAN1/ EXS_FAN2
1

MSI MEG X299 CREATION Specifications

General

Memory channels	Quad-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Supported memory clock speeds	4100, 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3800, 4000, 4200 MHz
Processor socket	LGA 2066 (Socket R4)
Processor manufacturer	Intel
Compatible processor series	Intel® Core™ X-series
Supported processor sockets	LGA 2066
USB 2.0 connectors	2
ATX Power connector (24-pin)	Yes
Number of SATA II connectors	0
Number of SATA III connectors	8
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	SATA III, U.2
BIOS type	UEFI AMI
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC1220
Component for	PC
Motherboard chipset	Intel® X299
Audio output channels	7.1 channels
Motherboard form factor	Extended ATX
Windows operating systems supported	Windows 10
LAN controller	Realtek RTL8125-CG, Intel I219-V
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	5.0
Ethernet interface type	2.5 Gigabit Ethernet, Gigabit Ethernet
Parallel processing technology support	CrossFire, SLI
Cables included	SATA

Weight and Dimensions

Depth	272 mm
Width	305 mm
