MSI MS-7082 User Manual

2-10
MS-7082 Micro ATX Mainboard

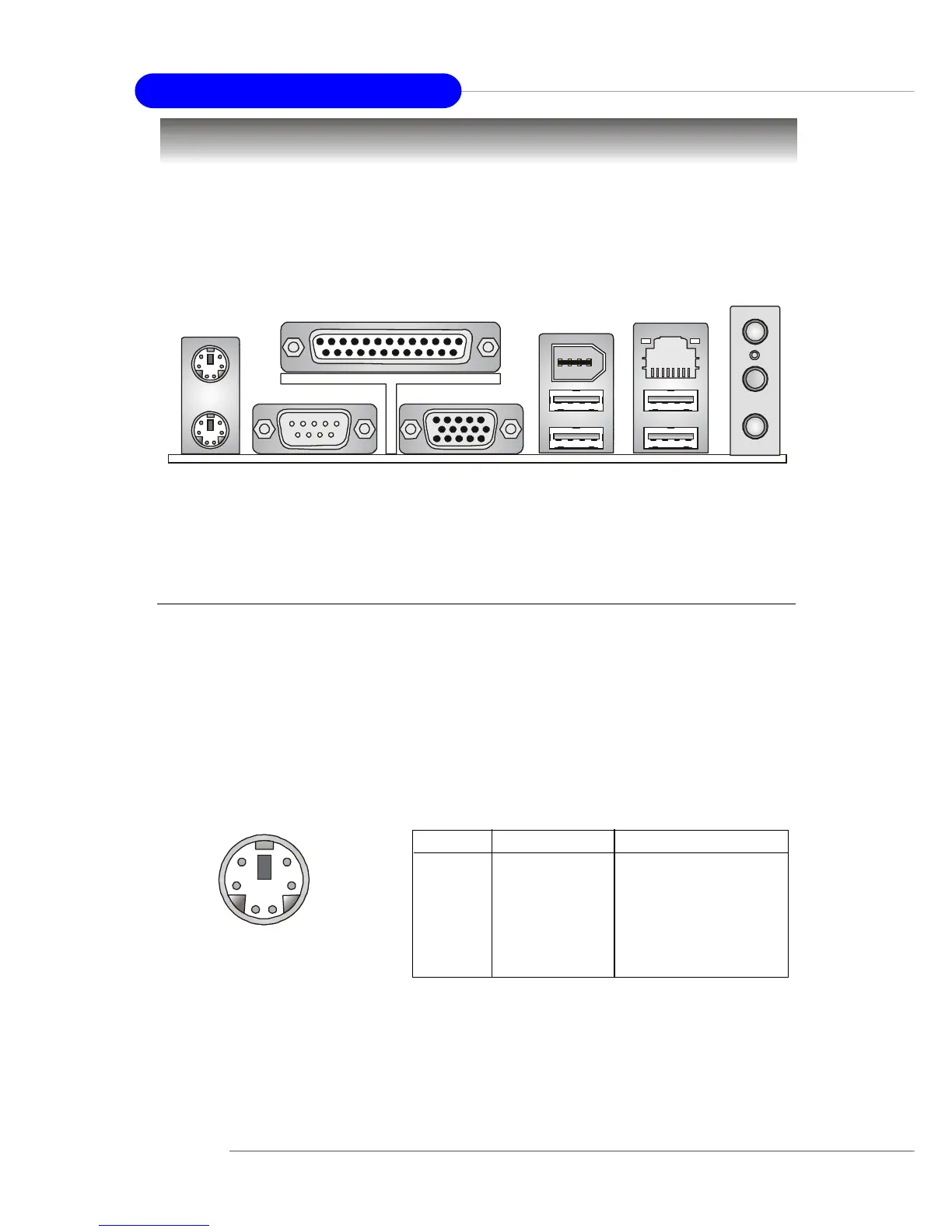

The back panel provides the following connectors:
Back Panel
Mouse Connector
The mainboard provides a standard PS/2
®
mouse mini DIN connector for attaching a PS/
2
®
mouse. You can plug a PS/2
®
mouse directly into this connector. The connector
location and pin assignments are as follows:
PIN SIGNAL DESCRIPTION
1 Mouse DATA Mouse DATA
2 NC No connection
3 GND Ground
4 VCC +5V
5 Mouse Clock Mouse clock
6 NC No connection
Pin Definition
Mouse
Parallel
USB Port
Keyboard
MIC
LAN
(Optional)
VGA Port
(for 661FX only)
USB Port
1394
(Optional)
COM Port
L-in
L-out
PS/2 Mouse (6-pin Female)
2
1
3
4
5
6
